OPERATING - HYDRAULIC LIFTING SYSTEM
26
cod. G19503950
3
Using the lifting device
Once you have positioned the equipment, prepare
it for mowing:
 UHOHDVHWKHEODGHWLHURG
 UHPRYHWKHVXSSRUWSURS
 UHPRYHWKHEODGHSURWHFWLRQ
Operation of lifting device

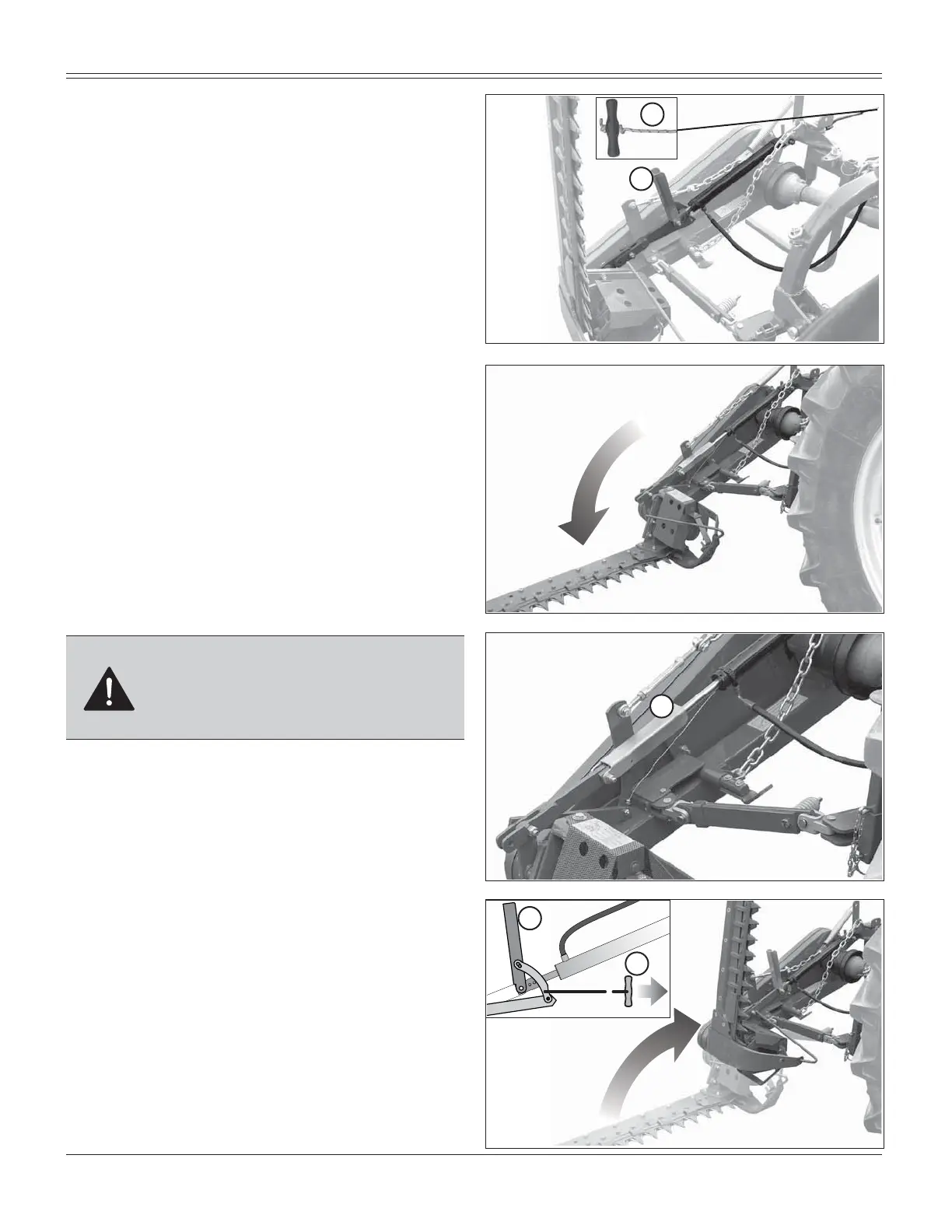

Put the rope (S, Fig. 42) for releasing the bracket
(T, Fig. 42) inside the tractor cabin.
Climb into the tractor and operate the hydraulic
distributor to lower the blade (Fig. 43) into the
mowing position.
CAUTION: While working regularly
check that the bracket (T) is still
resting along the cylinder rod (Fig.
44).
Fig. 42
Fig. 43
Fig. 44
S
T
T
T
Fig. 45
S
Raising of the cutter bar for road transport
 )LWWKHJXDUGVRYHUWKHFXWWHUVDQGRXWHUVNLG
(C Fig. 60.
 )URPWKHWUDFWRUSXOO WKHURSH6 )LJ WR
disable the bracket (T, Fig. 45) and operate the
hydraulic distributor to fully raise the cutter bar.
 6LFXUHLWZLWKWKHKRRNLQJWLHURG
