Maschio FIORE - OPERATING - HYDRAULIC LIFTING SYSTEM; Mowing on flat ground

OPERATING - HYDRAULIC LIFTING SYSTEM
27
cod. G19503950
3
0RZLQJRQÀDWJURXQG
(or ground with small depressions)

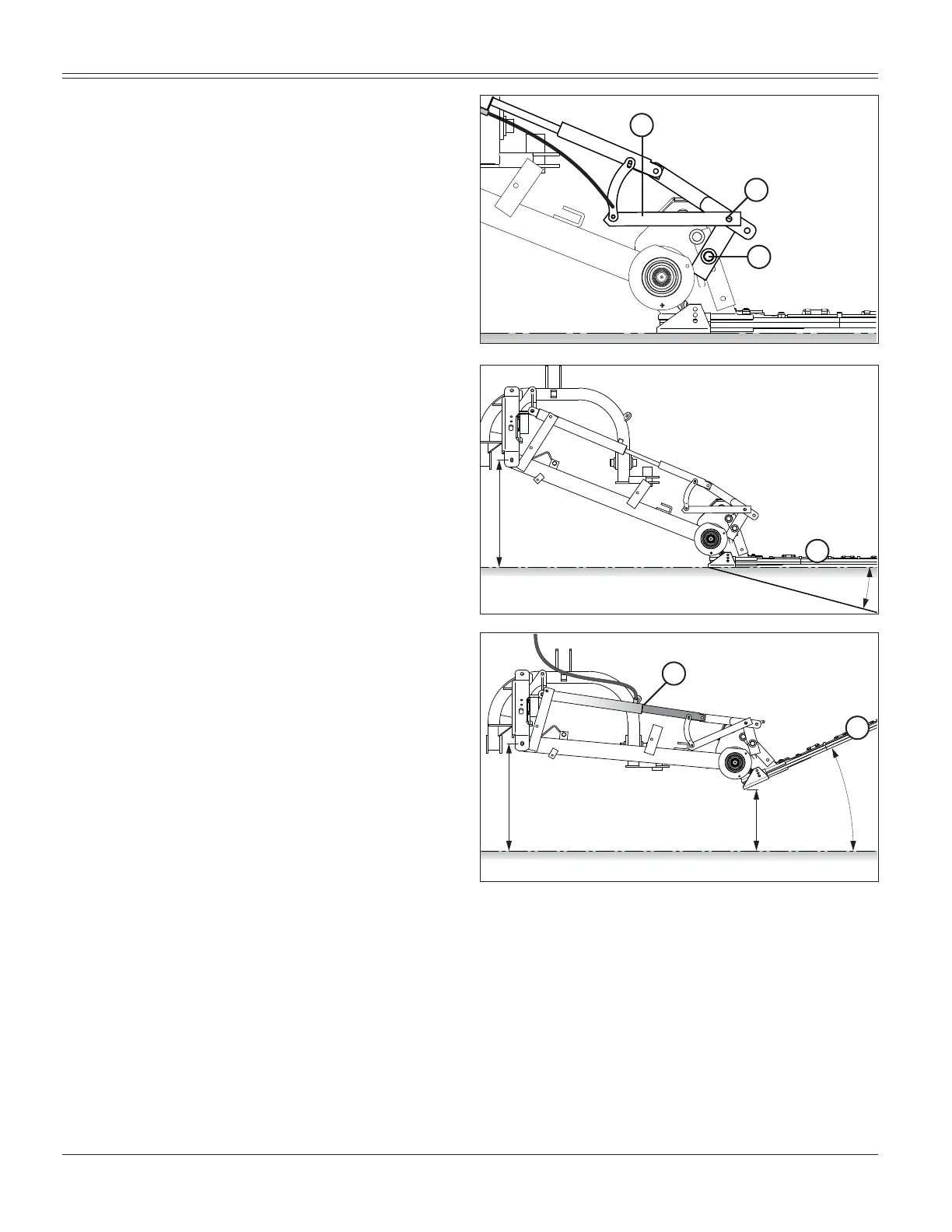

For mowing operations on level ground, couple
the lever mechanisms (V and Z, Fig. 46) in posi-
tion (X, Fig. 46).
Lastly insert the lifting device as described in the
previous paragraph.
With the rapid lifting device engaged, the bar (U,
Fig. 47) has a negative inclination of -15° with
respect to the horizontal plane during mowing,
and a positive inclination that varies according to
the lie of the land.
This system has been devised for mowing quickly
DQG VDIHO\ RQ ÀDW JURXQG RU JURXQG ZLWK VPDOO
depressions.
The operation of the lifting device up to the stop
of the bracket on the cylinder (T, Fig. 48) allows
the equipment to be raised by approx. 12.5 inches
from the ground and, at the same time, an incli-
nation of the blade (U, Fig. 48) of + 25°, so that
WKHHQGRI¿HOGPDQHXYHUVFDQEHFDUULHGRXW
25
°
19.6 ÷ 21.7
inches
12.5
inches
U
-15°
19.6 ÷ 21.7
inches
Z
X
V
U
Fig. 48
T
Fig. 46
Fig. 47
