Maschio FIORE - Assembly drawing

DESCRIPTION
6
cod. G19503950
3
1
6
8
11
14
9

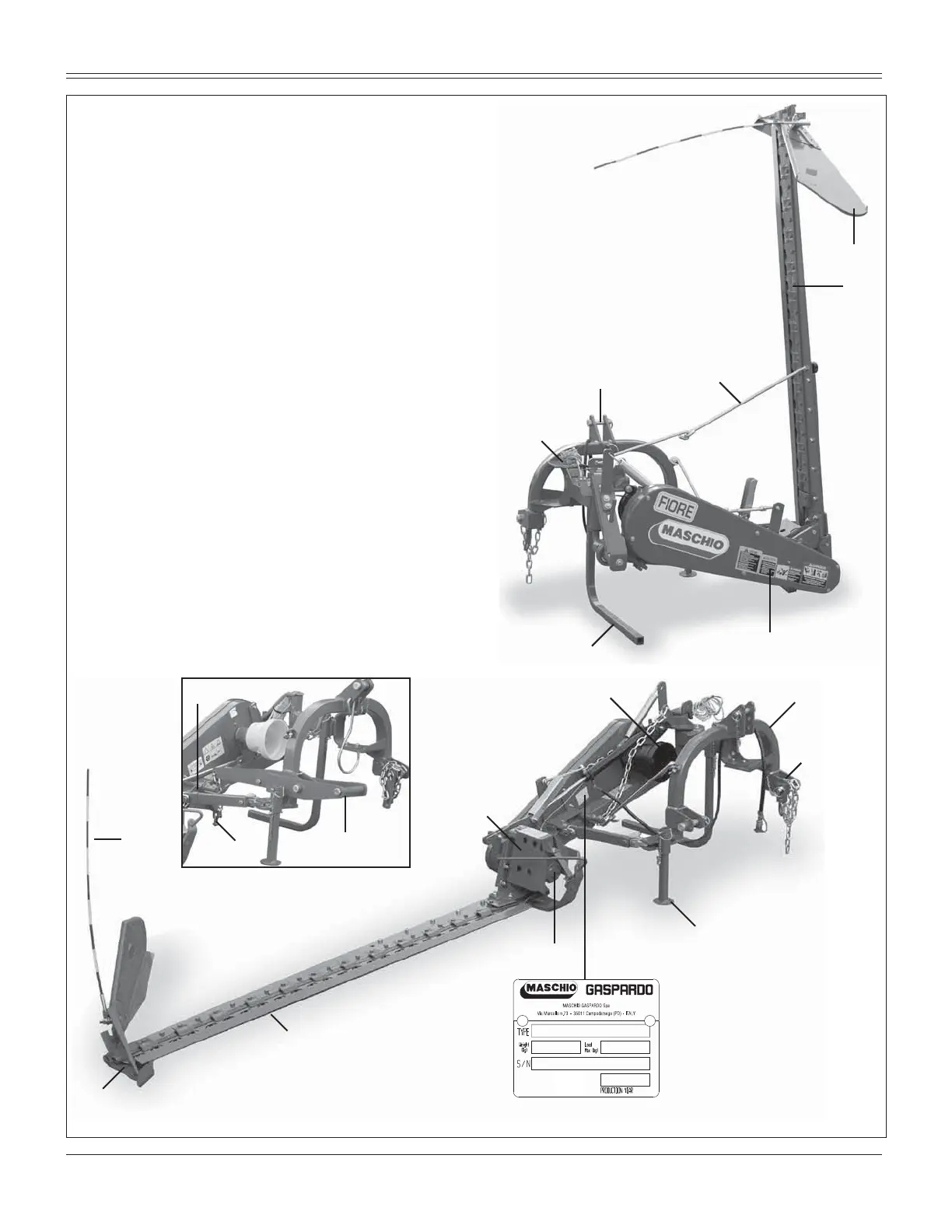

Assembly drawing
1 External shoe;
2 Mowing guide;
3 Cutting arm;
4 Upper 3rd point hitches;
5 Gauge varying articulation;
6 Chassis;
7 Tirant;
8 Lower 3rd point hitches;
9 Hazard bar;
10 Support;
 ,GHQWL¿FDWLRQODEHO
12 Cover;
13 Protective casing for connecting-rod systems;
14 Support;
15 Hinge (pivot point);
16 Blade guard;
17 PTO;
18 Lift link adjuster chain;
19 Hoisting arm.
Fig. 4
13
16
15
17
2
3
4
5
10
12
7
19
13
18
