OPERATING - QUICK COUPLER
29
cod. G19503950
3
Quick Coupler
The Quick Coupler must be used only with hydraulic
lifting system.

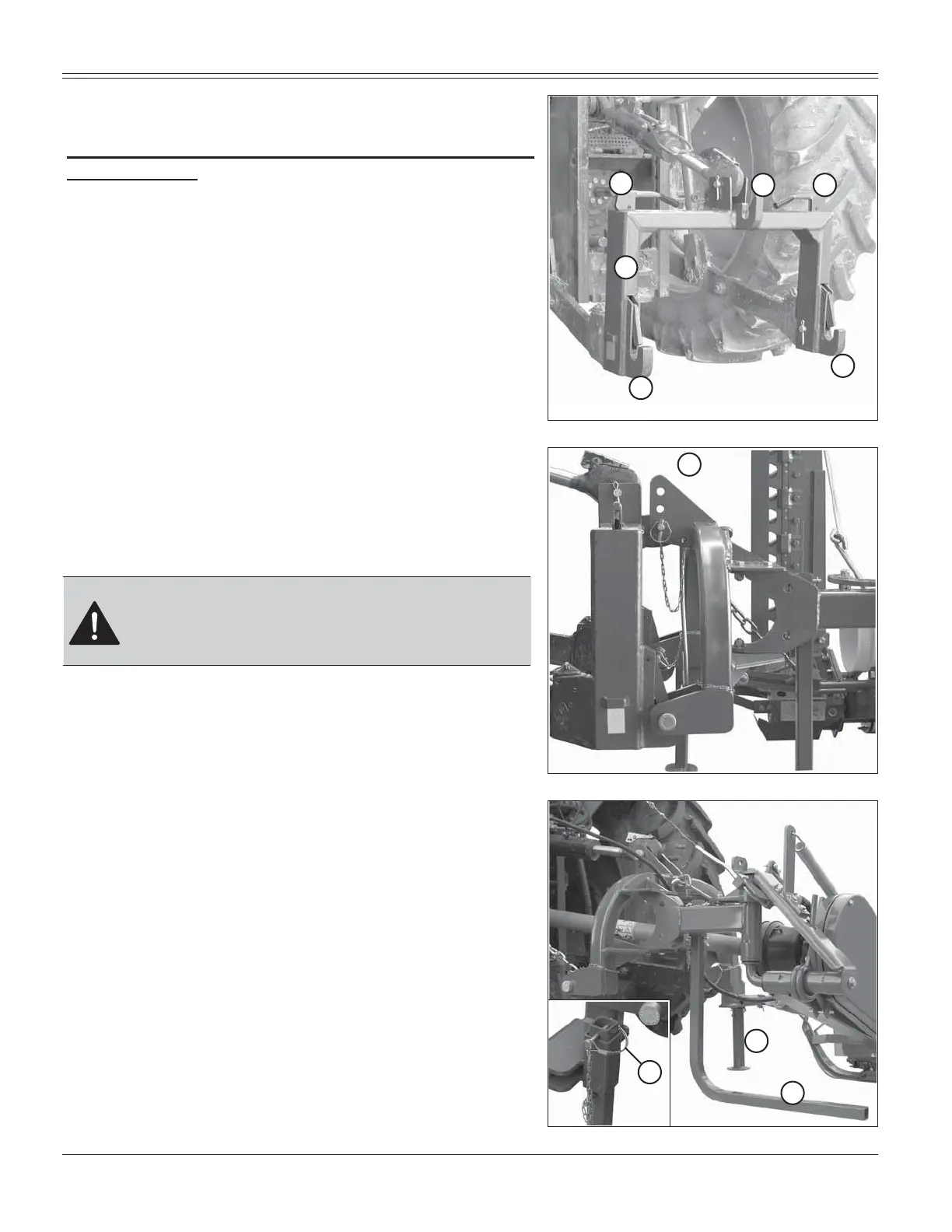

1) Install hitch Quick Coupler (A, Fig. 53) on the tractor
(see tractor operator manual).
 3DUNLQJWKHVLFNOHEDURQDÀDWDQGFRPSDFWJURXQG
supported by the relative supports. Then slowly move
the tractor back until the Quick Coupler (A) is in range
with the point hitches (B and C, Fig. 53).
CAUTION: Before you work around hitch:
 6723HQJLQH
 /2&.SDUNEUDNH
 ),50/<EORFNPRZHURQKRUL]RQWDOVXUIDFH
3) Raise the Quick Coupler (A, Fig. 53) and make sure
that sickle bar hitch is in the right position (E, Fig. 54).
A
D
DB
C
C
E
Fig. 53
Fig. 54
Removing sickle bar mower with Quick Coupler
1. Raise sickle bar.
2. Put parking stand (F and G, Fig. 55) in the DOWN posi-
tion: install spring locking pin in order to secure parking
stand (H , Fig. 55).
3. Lower sickle bar to the ground.
4. Raise the two Quick Coupler levers (D, Fig. 53) to unloch
sickle bar.
5. Lower Quick Coupler till further free the sickle bar.
G
F
Fig. 55
H
