OPERATING - HYDRAULIC LIFTING SYSTEM
24
cod. G19503950
3
Adapting the sickle bar mower

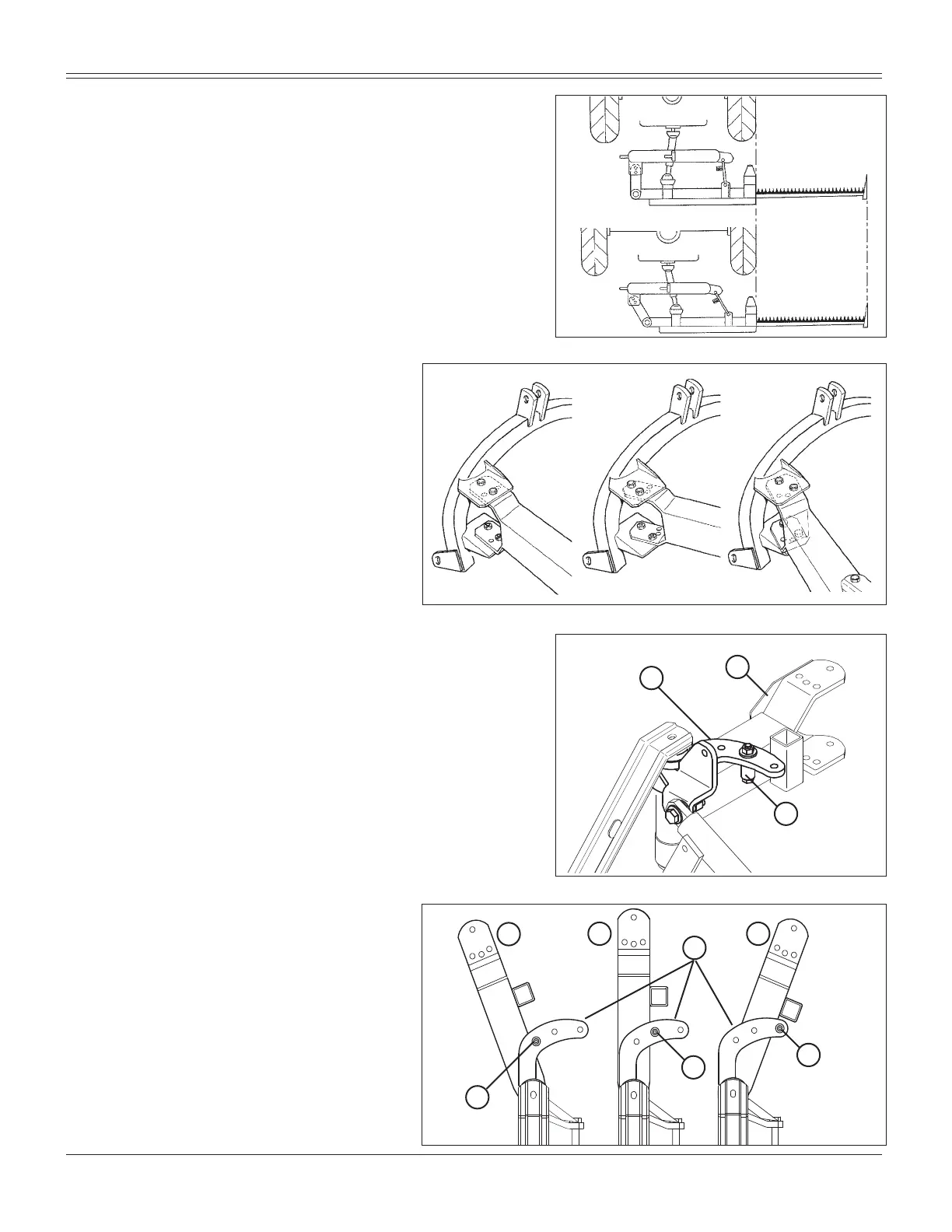

To ensure optium use, the sickle bar must completely
project from the tractor (Fig. 33); three situations are shown
in the Figure 34:
1) hitching to a tractor normally used for mowing jobs;
2) hitching to a large tractor;
3) hitching to a small tractor or to certain types of tra-
cked vehicle.
(1 ) (2) (3)
Fig. 34
Fig. 35
C
B
A
Fig. 36
A1
A2 A3
C1
C2
C3
B
Fig. 33
When the frame joint is moved (A, Fig. 35), the position of
the stop bushing (C, Fig. 35) of the cylinder linkage must
consequently be changed, according to the cases shown
LQ¿JXUHVDQG
Connections between frame joint and
stop bushing for the movement of the
mowing bar.
