Maschio FIORE - OPERATING - HYDRAULIC LIFTING SYSTEM; Mowing on slopes

OPERATING - HYDRAULIC LIFTING SYSTEM
28
cod. G19503950
3
Mowing on slopes

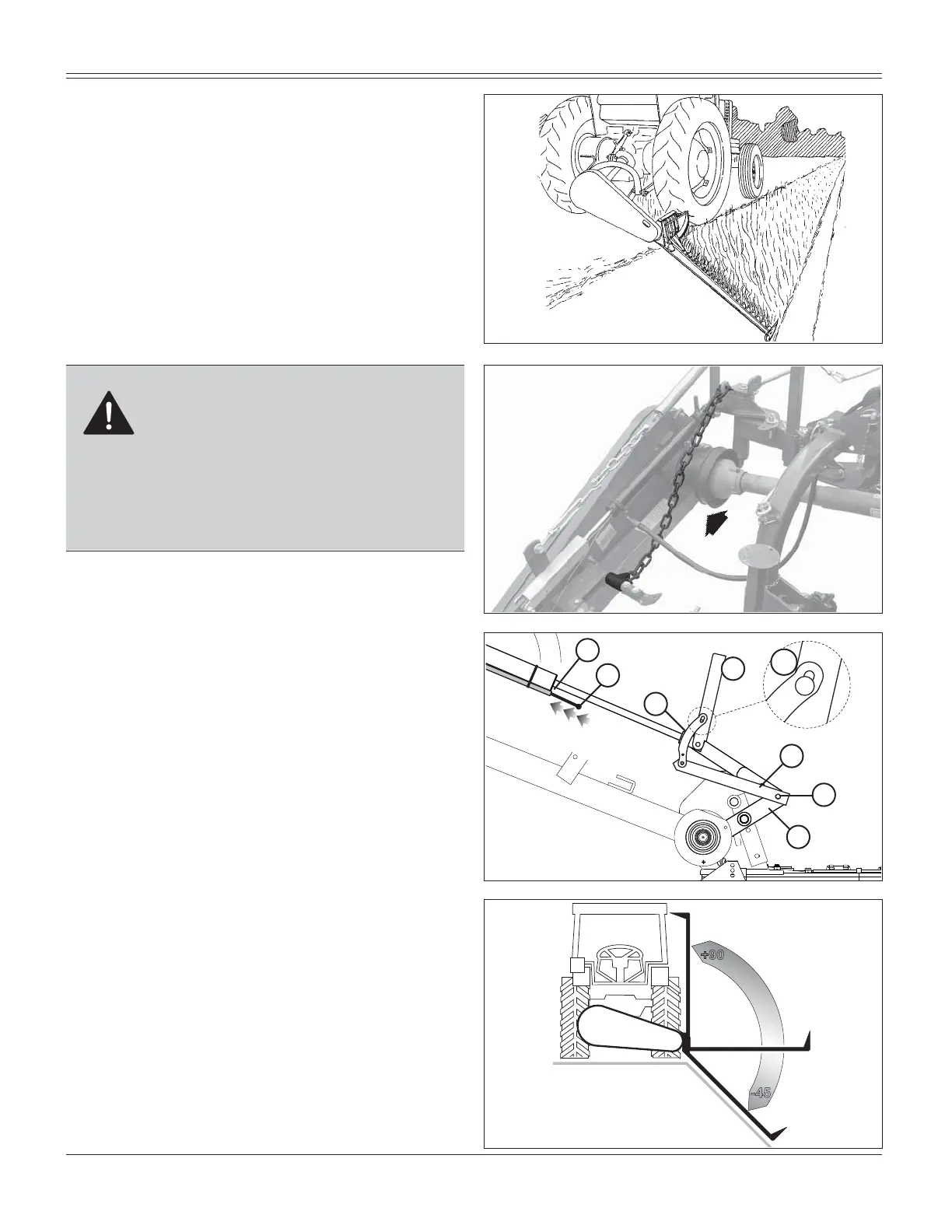

Figure 49 show type of mowing on sloping ground
(banks, canals, etc.).
CAUTION: For mowing on surfaces
that are not parallel to the tractor
plane, we recommend removing the
moving guide from the outer mowing
bar support.
To mount pulling of Figure 50 in or-
GHUWRLPSURYHWKHH[FXUVLRQDQG
use of the sickle bar.
Only for mowing on sloping ground, it is necessary
to prepare the machine according to the instruc-
tions given below:
1) Move the lever mechanisms (V and Z, Fig. 51)
to position (Y).
2) Lift the bracket (T) as shown in Figure 51, and
lock it with the rod (W) in the lower position of
the slot (ref. W1, Fig. 51).
3) To avoid unpleasant problems during move-
ment of the cutter bar, detach the steel cable
(S) from the rod (W) and retrieve it up to posi-
tion (S1) .
In this way the bar can be adjusted with the
hydraulic cylinder to mow at different angles: from
-45° to +90° with respect to the horizontal plane
formed by the tractor (Fig. 52).
IMPORTANT:
The sickle bar can operates in each position
between -45° to +90°.
Fig. 49
Fig. 50
S
S1
+90
-45
Fig. 52
Fig. 51
W
T
Z
Y
V
W1
