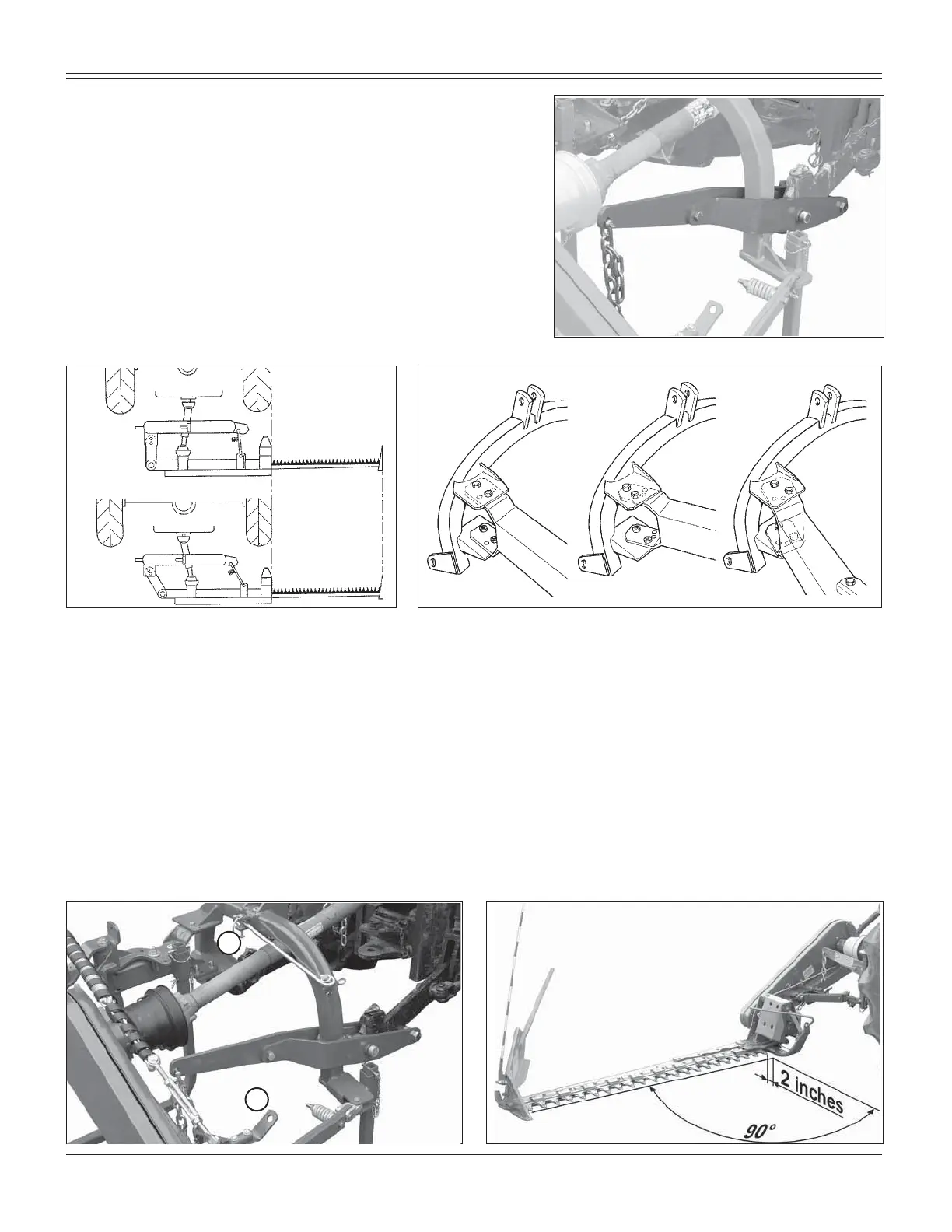

Use of MECHANICAL lifting system (Fig. 19)
Adapting the sickle bar mower
To ensure optium use, the sickle bar must completely
project from the tractor (Fig. 20); three situations are shown
in the Figure 21:
1) hitching to a tractor normally used for mowing jobs;
2) hitching to a large tractor;
3) hitching to a small tractor or to certain types of tracked
vehicle.
Adjustment
Before starting a mowing session, adjust the machine so that the best working setup is obtained.
Correct machine setup guarantees excellent mowing, allows for the best machine-tractor performance
and remarkably reduces wear of the cutting blades.
 5HPRYHVDIHW\KRRN')LJUHTXLUHGRQO\IRUWUDQVSRUWDWLRQDQG¿WLWEDFNLQWKHVORWSRVLWLRQHG
above the chassis.
 )LWWKHVLFNOHEDUE\DGMXVWLQJWKHWUDFWRUWLHURGVVRWKDWZKHQWKHVLFNOHEDUDWWDFKPHQWLV¿WWHGWR
the three points on the tractor, the external tip of the cutting arm is approximately 2 inches. foward
with respect to the arm base (Fig. 23).
