SERVICE
37
cod. G19503950
3
Only with some models, before disassembling the blade
JXLGHV1)LJRQHPXVWSUHYLRXVO\UHPRYHWKH¿QJHU
blade tie rod (W) in Figure 67. Use a punch to facilitate the
operation (T, Fig. 67).
Subsequently, only after having made sure that the blade
JXLGHV KDYH EHHQ EORFNHG RQH PXVW WLJKWHQ WKH ¿QJHU
blade again via the nuts, located at both ends, keeping to
the 0.59 inches (15 mm) shown in Figure 67. Use a punch
to facilitate the operation (T, Fig. 67)
This measurement allows to maintain the cutting bar in
traction, without bending it downwards.
IMPORTANT: When replacing the teeth or the
tooth-holding bar, carry out the check described
above. When required, put back the shims to
avoid striping or damage.
~15 mm
~15 mm
~ 0.59 inches
~ 0.59 inches

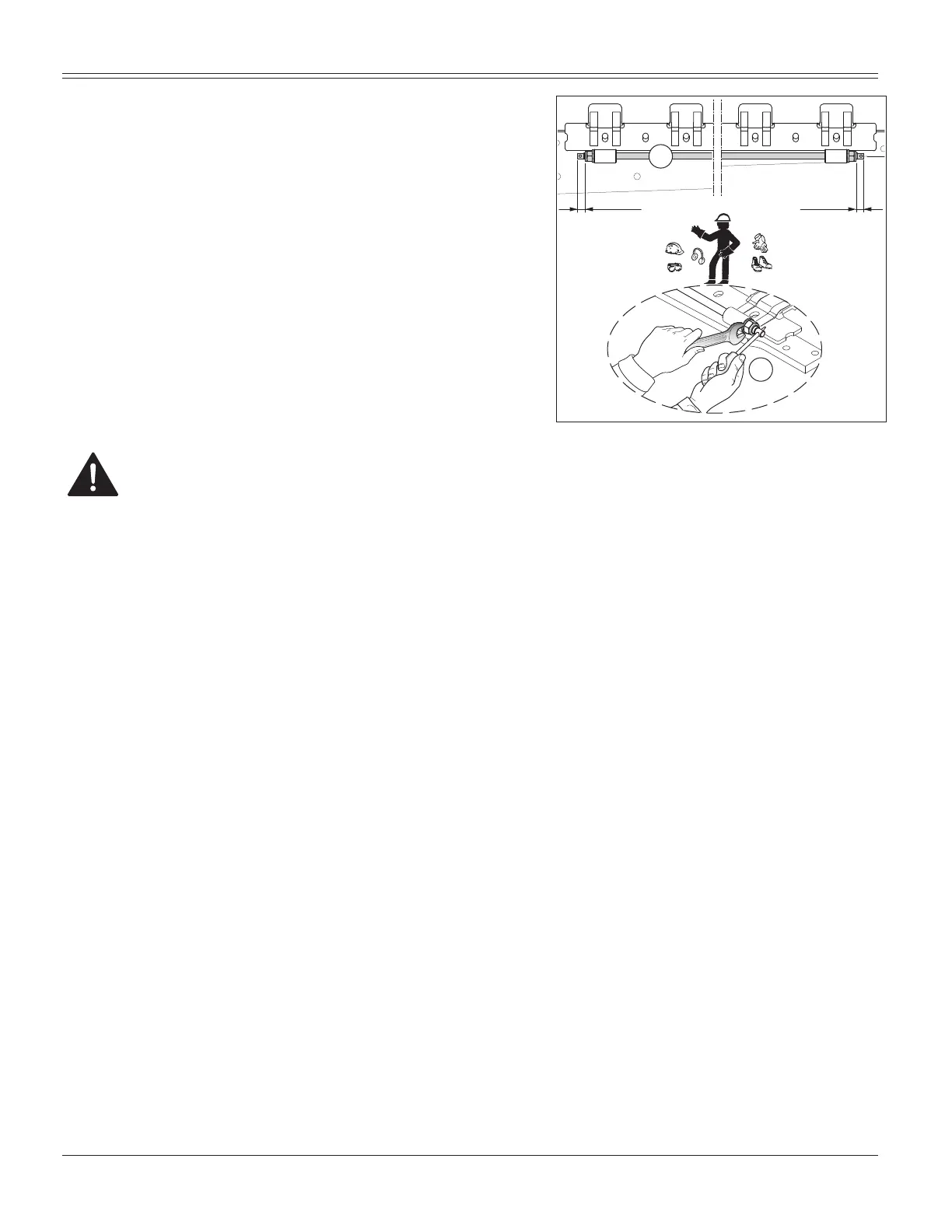

Fig. 67
W
T
