Special Menu
This section gives an overview of the Rad-57 special menu selection available. To navigate
through the menu, use the Power, Next, Up and Down keys located on the front panel of
the oximeter. The oximeter has options that allow user configuration to suit specific needs.
The following sub-section describes this menu item in more detail.
SPECIAL MENU – LINE FREQUENCY CONFIGURATION
NOTE: The device must be configured to match your local power line frequency (50 or 60 hz)
to operate properly. The default is set to 60 hz (standard for the United States).
1. Turn the Rad-57 on and wait for the displays to scroll through the current settings.
2. Simultaneously press and hold the Up
Arrow key and the Mode/Enter
button.
3. "SEr " will be displayed.
4. Press the Mode/Enter
button once.
5. Push the Next
button 5 times. “LF” will be diplayed in the top LED display
window and the active line frequency will be displayed in the lower LED display
window.
6. Push the Up
arrow to set the line frequency to 60 Hz and the Down
arrow to set it to 50 Hz.
7. Turn the device off.

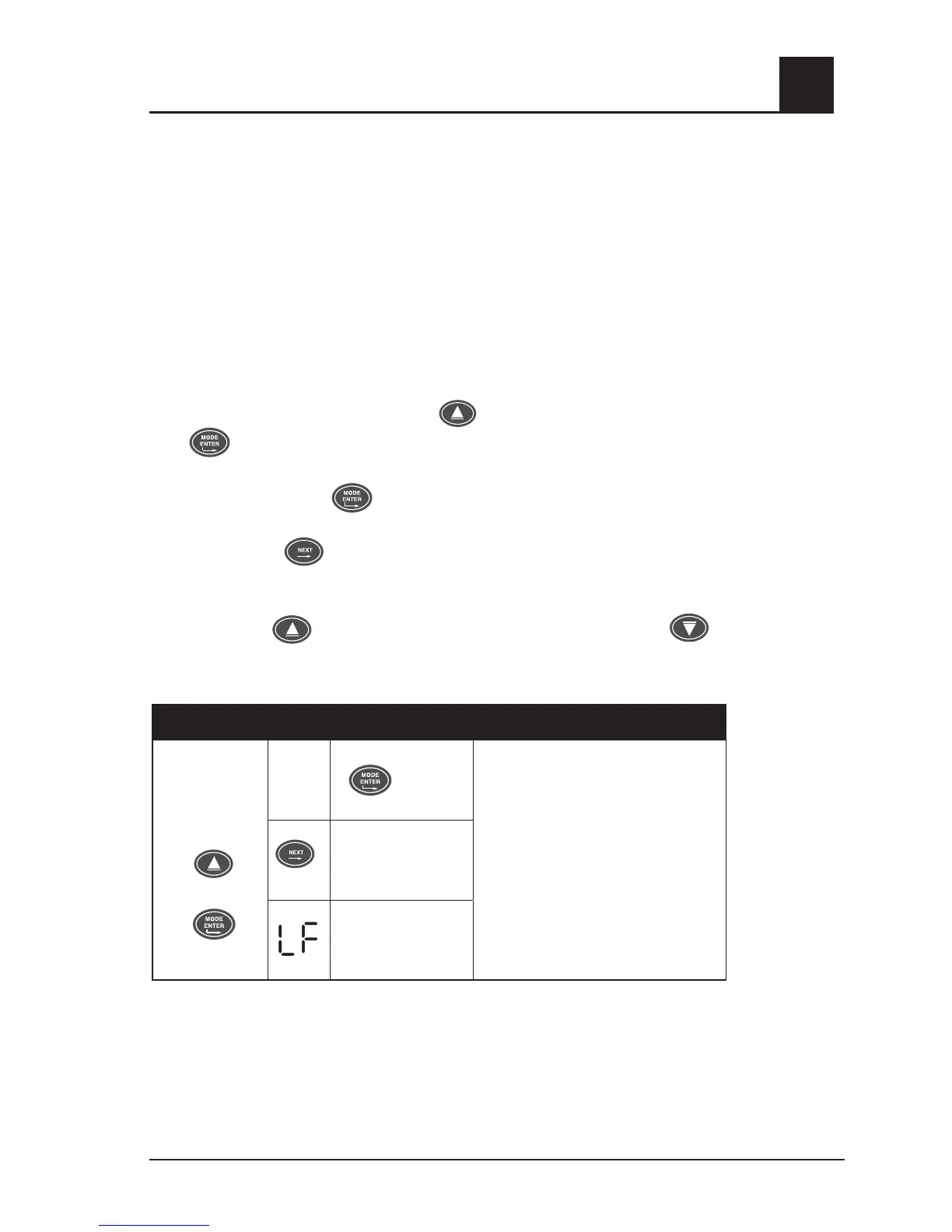

BUTTON SETTING
Simultaneously
press and hold
+
Press
Use Up or Down Arrow Keys to adjust
parameter to desired setting.
NOTE: The parameter is set/selected
when the device is turned off.
5X
Enter Line
Frequencey Menu
Set Line Frequency
To Next Page
