2-2 Rad-57 Signal Extraction Pulse CO-Oximeter Operator’s Manual
2
system description
CONTROL / INDICATOR DESCRIPTION
1
Patient Cable Connector
Connects to a Rainbow Sensor or Rainbow Patient Cable,
Red Sensor or a Red Patient Cable with an LNOP, LNOPv
or LNCS Sensor.
2
SpCO indicator
Slow flashing indicator: The confidence in the SpCO value
obtained is low.
Fast flashing indicator: Flashes when an SpCO alarm
condition exists.
3
Saturation (%SpO
2
) and
Carboxyhemoglobin
(%SpCO) Displays
The functional arterial hemoglobin oxygen saturation is
displayed in units of SpO
2
. When searching for a saturation
and pulse, it will flash dashed lines.
Refer to the Display Button description.
4
%SpCO Bar
Illuminates when SpCO capable sensor is attached. Bar will
flash for SpCO alarm conditions. Continuously indicates the
concentration of carboxyhemoglobin in increments of: 3, 6, 9,
12, 15, 20, 25, 30, 35, > 40.
5
Pulse Rate Display
The pulse rate in beats per minute (bpm). When searching for
a saturation and pulse, it will flash dashed lines.
Rad-57c

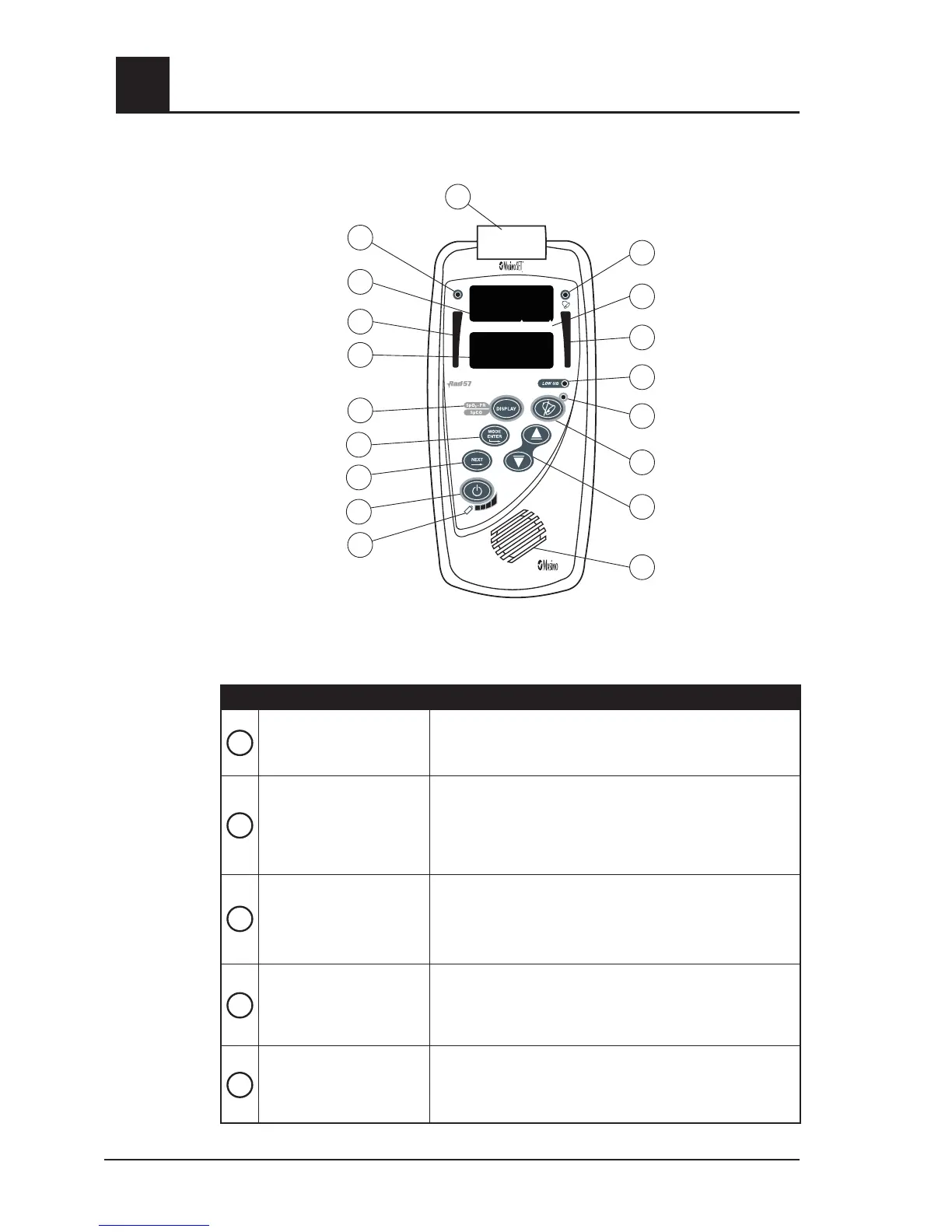

Rad-57c Front Panel Controls
2
3
4
5
1
11
12
14
16
17
18
6
8
9
13
15
7
10
<3
6
9
12
15
20
25
30
35
>40
%SpCO
SpCO
Signal Extraction Pulse CO-Oximeter
%SpO
2
rainbow
%SpCO
1
2
3
1.75
>5
1.5
1.25
.5
.25
<.1
BPM
PI
