2-4 Rad-57 Signal Extraction Pulse CO-Oximeter Operator’s Manual
2
system description
CONTROL / INDICATOR DESCRIPTION
1
Patient Cable
Connector
Connects to a Rainbow Sensor or Rainbow Patient Cable,
Red Sensor or a Red Patient Cable with an LNOP, LNOPv
or LNCS Sensor.
2
SpMet indicator
Slow flashing indicator: The confidence in the SpMet value
obtained is low.
Fast flashing indicator: Flashes when an SpMet alarm
condition exists.
3
Saturation (%SpO
2
)
Display
The functional arterial hemoglobin oxygen saturation is
displayed in units of SpO
2
. When searching for a saturation
and pulse, it will flash dashed lines.
4
%SpMet Bar
Illuminates when SpMet capable sensor is attached. Bar will
flash for SpMet alarm conditions. Continuously indicates the
concentration of Methemoglobin in increments: .5, 1-5, 7.5,
10, 15 >20%.
5
%SpMet / Pulse Rate
Display
Indicator above label will illuminate to provide an additional
visual indication of the SpMet value currently being
displayed.
The pulse rate in beats per minute (bpm). When searching
for a saturation and pulse, it will flash dashed lines.
Rad-57m

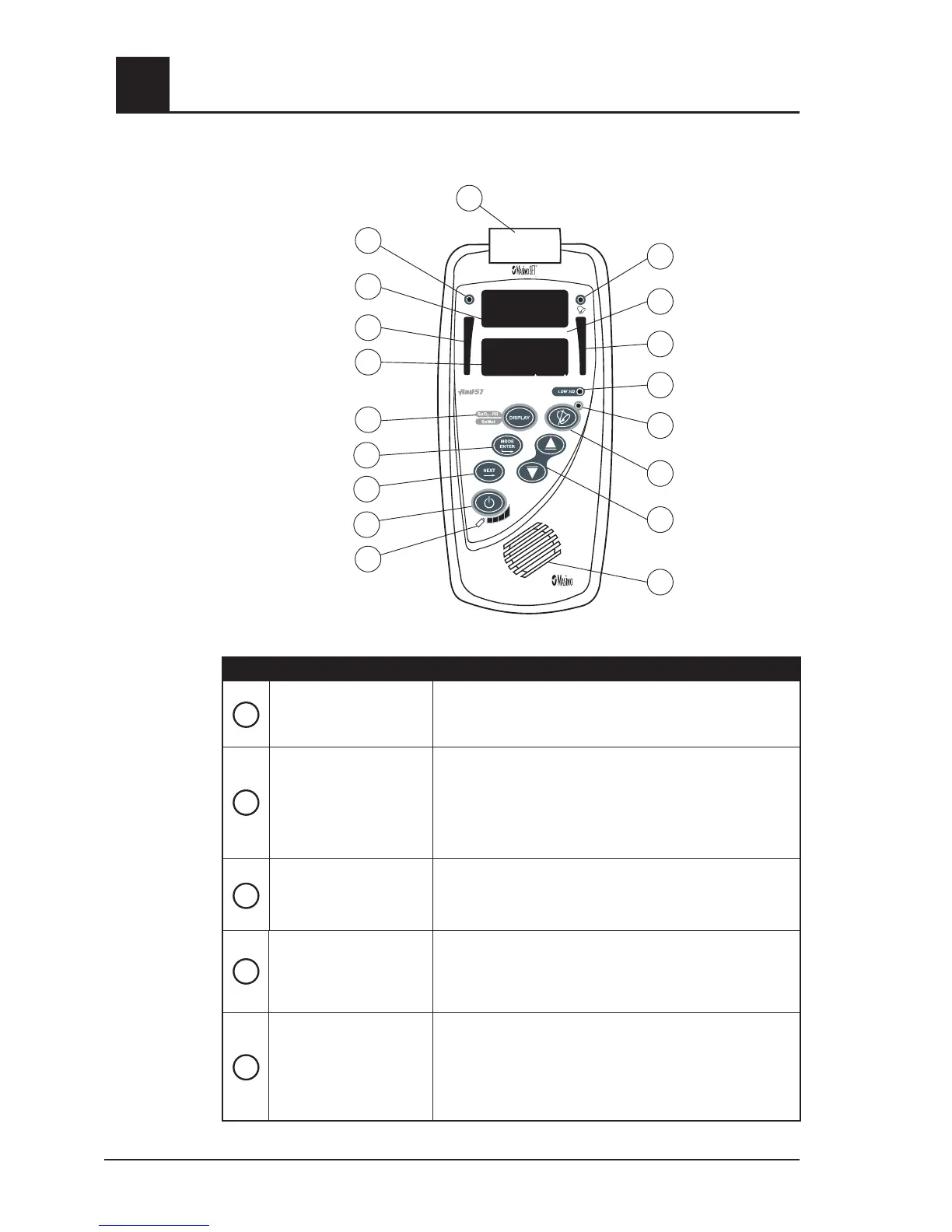

Rad-57m Front Panel Controls
2
3
4
5
1
11
12
14
16
17
18
6
8
9
13
15
7
10
.5
1
2
3
4
5
7.5
10
15
>20
SpMet
%SpMet
Signal Extraction Pulse CO-Oximeter
%SpO
2
1
2
3
1.75
>5
1.5
1.25
.5
.25
<.1
%SpMet
BPM
PI
rainbow
