Masimo RAD-57C - Rad-57 Cm Front Panel Controls

2-6 Rad-57 Signal Extraction Pulse CO-Oximeter Operator’s Manual
2
system description
Rad-57cm

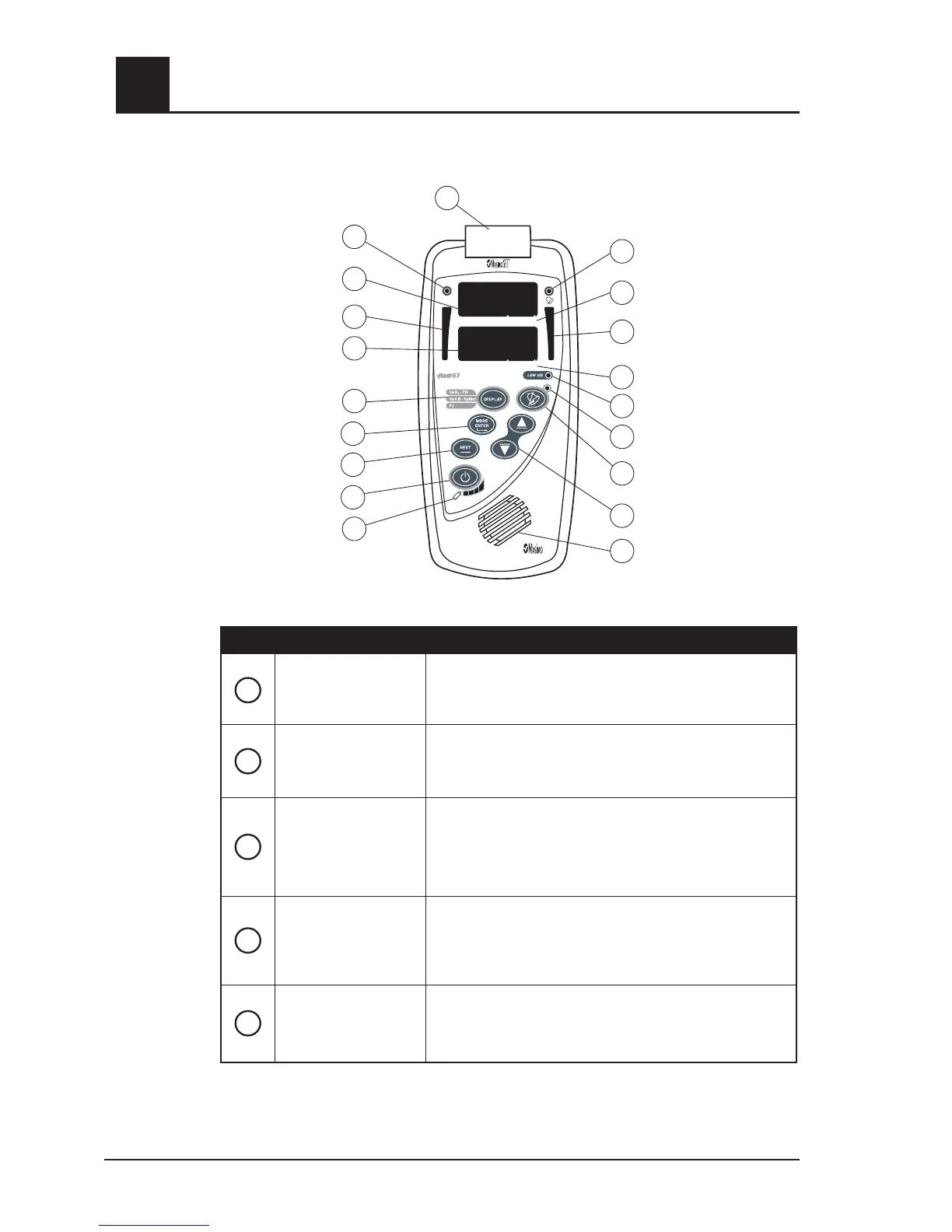

Rad-57cm Front Panel Controls
CONTROL / INDICATOR
DESCRIPTION
1
Patient Cable
Connector
Connects to a Rainbow Sensor or Rainbow Patient Cable,
Red Sensor or a Red Patient Cable with an LNOP, LNOPv
or LNCS Sensor.
2
Low PI Indicator
The Perfusion Index (PI) LED illuminates a constant light
when arterial pulsations are very low (weak perfusions).
3
Saturation
(%SpO
2
) and
Carboxyhemoglobin
(%SpCO) Displays
The functional arterial hemoglobin oxygen saturation is
displayed in units of SpO
2
. When searching for a saturation
and pulse, it will flash dashed lines.
See SpCO/SpMet Button description, below.
4
%SpCO Bar
Illuminates when SpCO capable sensor is attached. Bar will
flash for SpCO alarm conditions. Continuously indicates the
concentration of carboxyhemoglobin in increments of: 3, 6,
9, 12, 15, 20, 25, 30, 35, > 40.
5
Pulse Rate Display
and Methemoglobin
(%SpMet) Displays
The pulse rate in beats per minute (bpm). When searching
for a saturation and pulse, it will flash dashed lines.
See Display button description.
2
3
4
5
1
11
12
15
17
18
19
6
8
9
13
16
7
10
14
<3
6
9
12
15
20
25
30
35
>40
%SpCO
Signal Extraction Pulse CO-Oximeter
rainbow
Low PI
%SpO
2
%SpCO
%SpMet
BPM
%SpMet
.5
1
2
3
4
5
7.5
10
15
>20
