Rad-57 Signal Extraction Pulse CO-Oximeter Operator’s Manual 5-5
5
MESSAGES CONTINUED

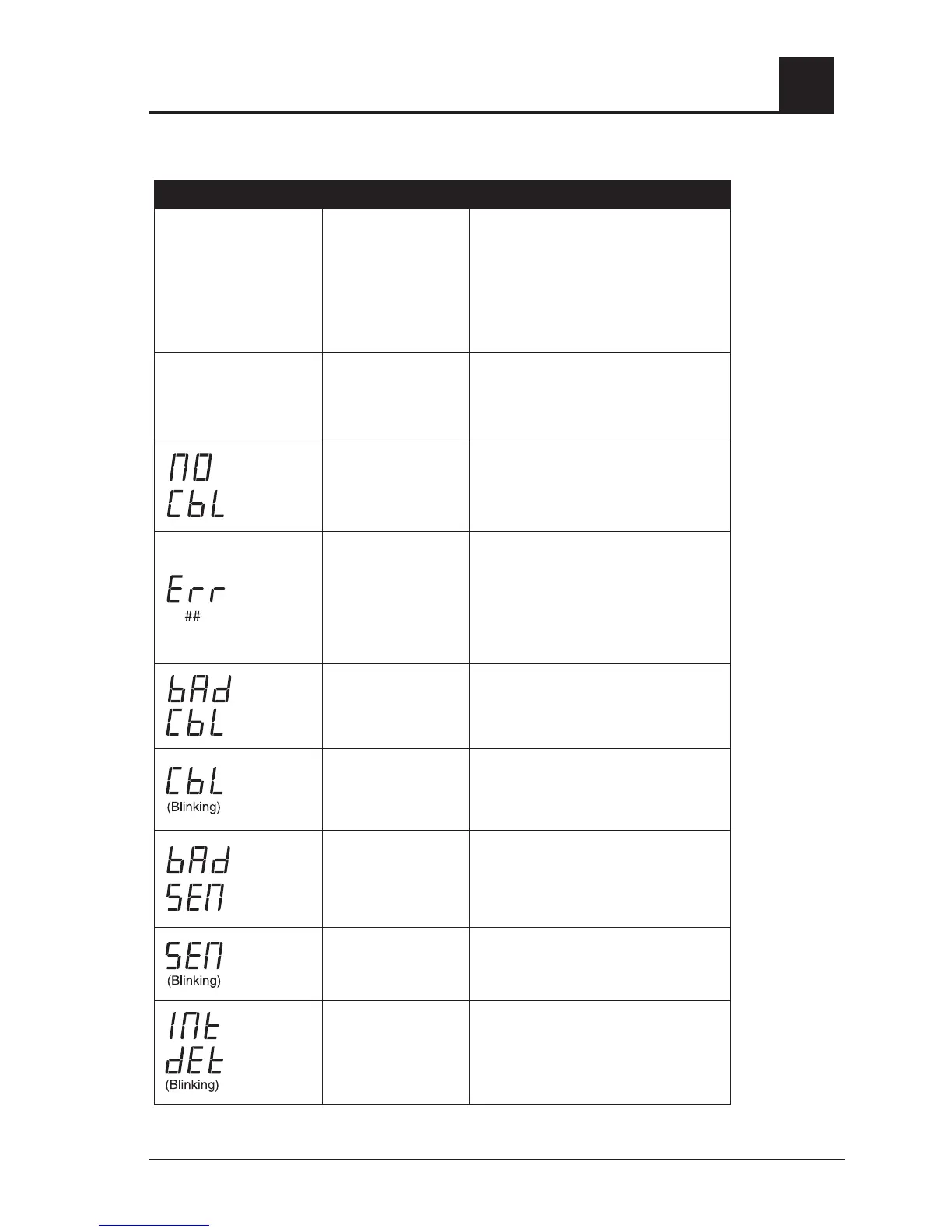

DISPLAY TYPE SOLUTION
% SpMet* BAR GRAPH
Alarm Condition
Continuously indicates the concentration
of Methemoglobin in the following
increments: .5, 1, 2, 3, 4, 5, 7.5, 10, 15
and >20%. When an SpMet alarm is
violated, the bargraph will flash at the
SpMet level being violated along with an
audible alarm.
SINGLE BATTERY
LEVEL INDICATOR
FLASHES (WITH AUDI-
BLE ALARM)
Battery level too low Replace batteries immediately.
No Cable Connected Connect appropriate cable to device.
System Fault
Return for service.
There are several error codes. All error
codes require returning the device to
an authorized service center for repair.
See Section 9, Service and Repair for
return procedure.
Defective cable Replace cable
Incompatible cable Connect appropriate cable
Defective sensor Replace sensor
Unrecognized
sensor
Connect appropriate sensor
Interference
detected
Ensure that the sensor is properly
applied, and cover the sensor site with
opaque material, if required.
*See Model Summary for applicable device.
alarms / messages
