Rad-97 Service Manual Chapter 5: Performance Verification Procedures
Masimo Corporation 58 www.masimo.com
Procedure

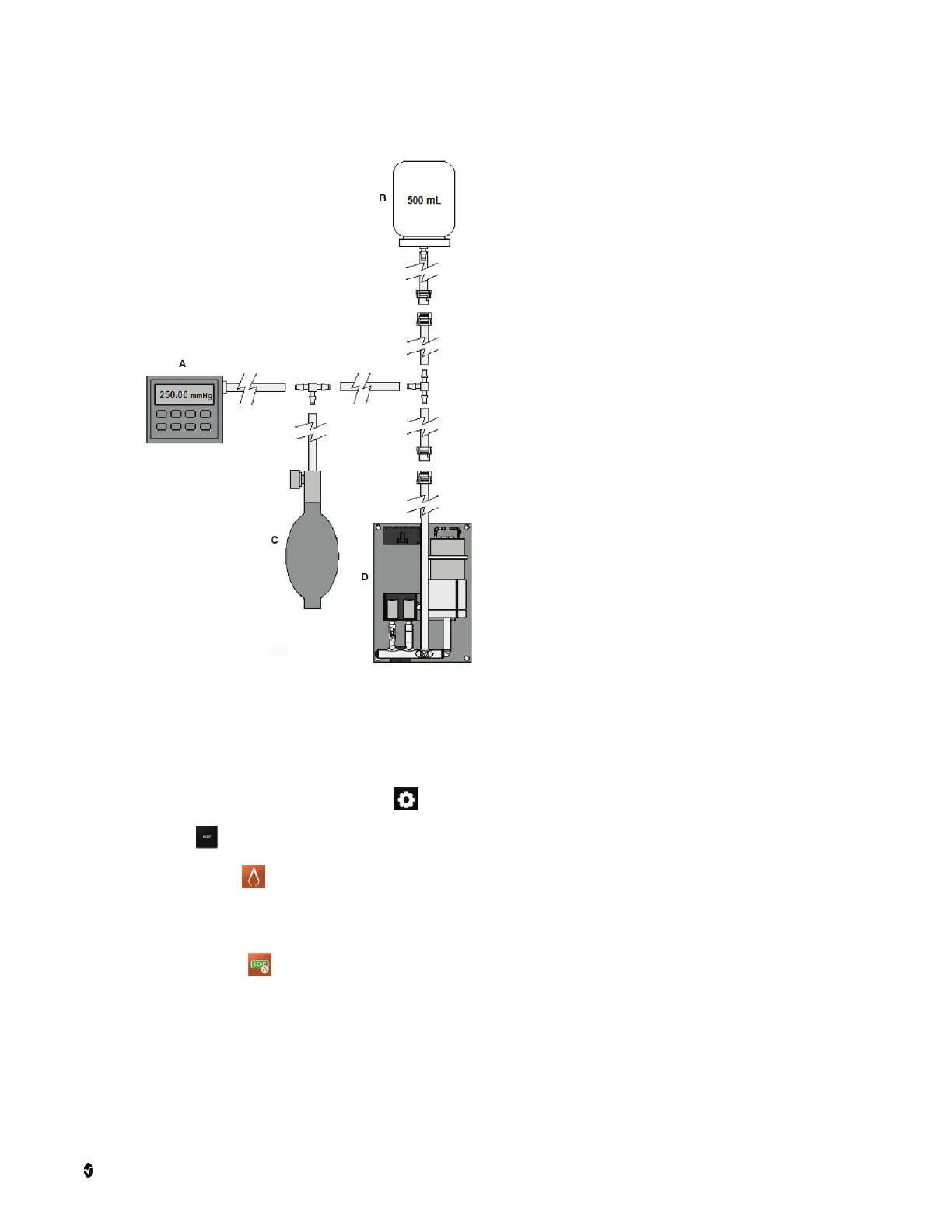

1. Connect the manometer (A), 500mL bottle (B), and hand bulb (C) to the NIBP module (D) using "T" adapters and connection tubing.
2. Power ON the manometer.
• Set the unit of measurement to mmHg.
• Verify the manometer has been calibrated.
3. Power ON the Rad-97.
4. On the Rad-97 home screen, press the Main Menu icon
.
5. Press NIBP
.
6. Press CALIBRATION
.
• For the password, enter 4258.
• Press the Enter key.
7. Press AIR LEAK TEST
.
8. To begin the air leak test, press Test.
• Wait for the countdown timer to reach 0 second.
• At the bottom of the screen, in the Result section, verify the leak rate is less than 6mmHg. If the leak rate is greater than 6mmHg, verify there are no leaks in
the calibration equipment (tubing, 500mL container, arm cuff, etc.). If there are no leaks detected from the calibration equipment and the leak rate is still
greater than 6mmHg, contact Masimo Technical Services. See Contacting Masimo on page 65.
9. Disconnect the manometer, 500mL bottle, and hand bulb from the NIBP module.
10. Power OFF the manometer.
