Appendix: Rad-97 Component Diagrams
Rad-97 - Version 1

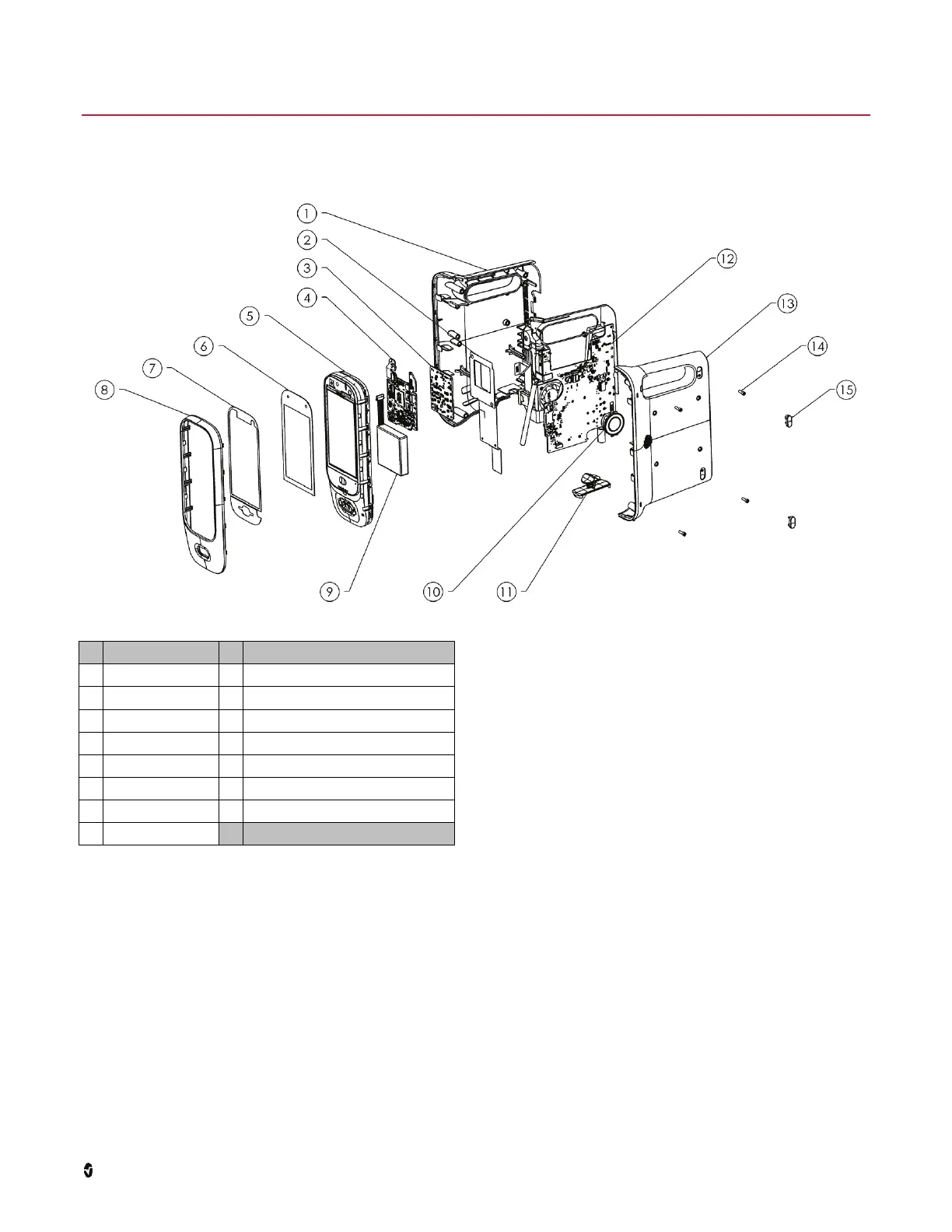

Rad-97 - Base
Ref Description Ref Description
1 Rear Rad-97 Housing 9 3.7V 4600mAh Rechargeable Li-Ion Battery
2 Insulation Sheet 10 Speaker
3 MX Board 11 Swivel Foot
4 Rad-97 Instrument Board 12 Rad-97 Connectivity Board Circuit Board Assembly
5 Rad-97 Faceplate Console 13 Top Rad-97 Housing
6 Rad-97 Touchscreen 14 Screw, #4-40 1/4 x 3/8, Socket HD, SS
7 Rad-97 Rubber Gasket 15 Foot Bumpers
8 Rad-97 Faceplate
