Rad-97 Service Manual Appendix: Rad-97 Component Diagrams
Masimo Corporation 68 www.masimo.com

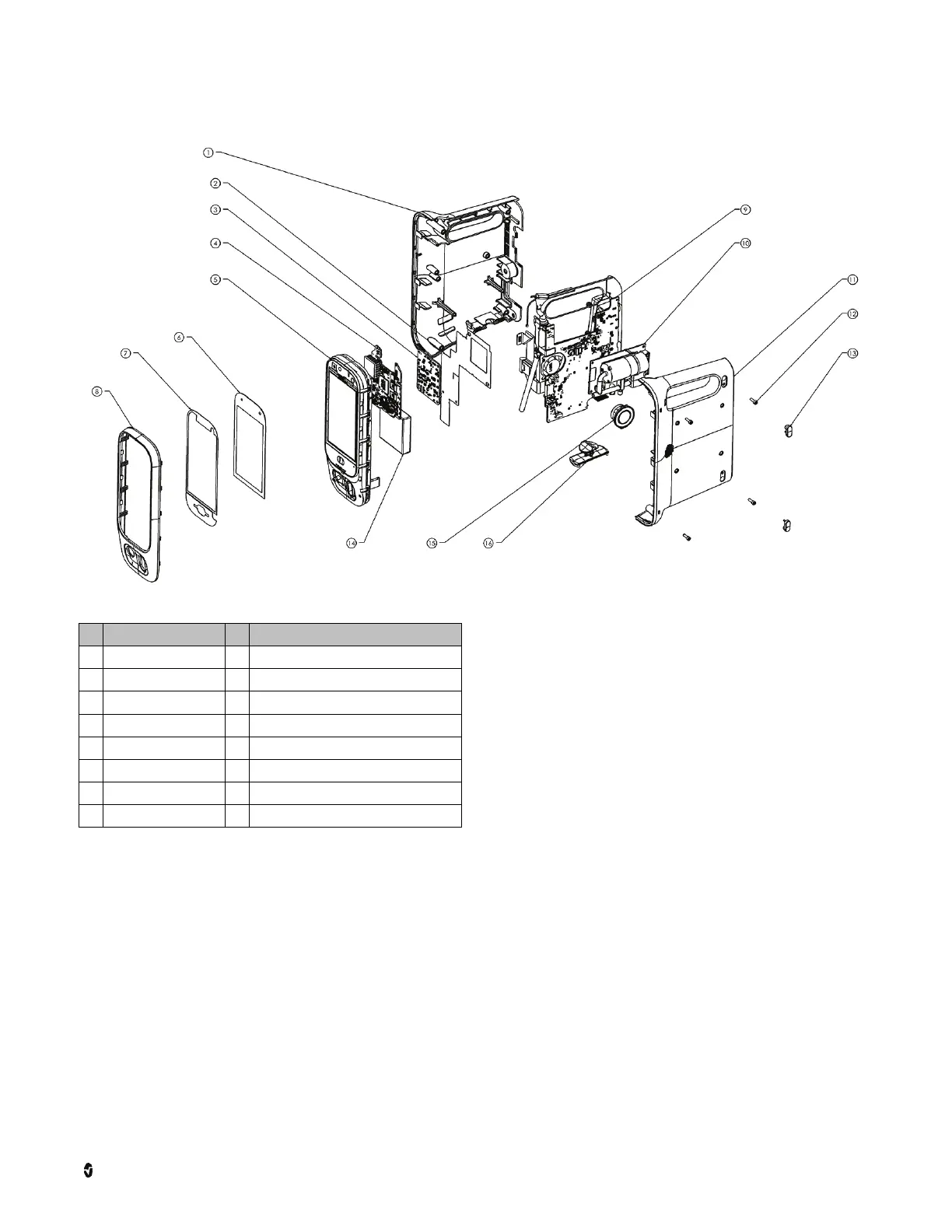

Rad-97 with noninvasive blood pressure
Ref Description Ref Description
1 Rear Rad-97 Housing 9 Rad-97 Connectivity Board Circuit Board Assembly
2 Insulation Sheet 10 NIBP Module
3 MX Board 11 Top Rad-97 Housing
4 Rad-97 Instrument Board 12 Screw, #4-40 1/4 x 3/8, Socket HD, SS
5 Rad-97 Faceplate Console 13 Foot Bumpers
6 Rad-97 Touchscreen 14 3.7V 4600 mAh Rechargeable Li-Ion Battery
7 Rad-97 Rubber Gasket 15 Speaker
8 Rad-97 with NIBP Faceplate 16 Swivel Foot
