Rad-97 Service Manual Appendix: Rad-97 Component Diagrams
Masimo Corporation 69 www.masimo.com

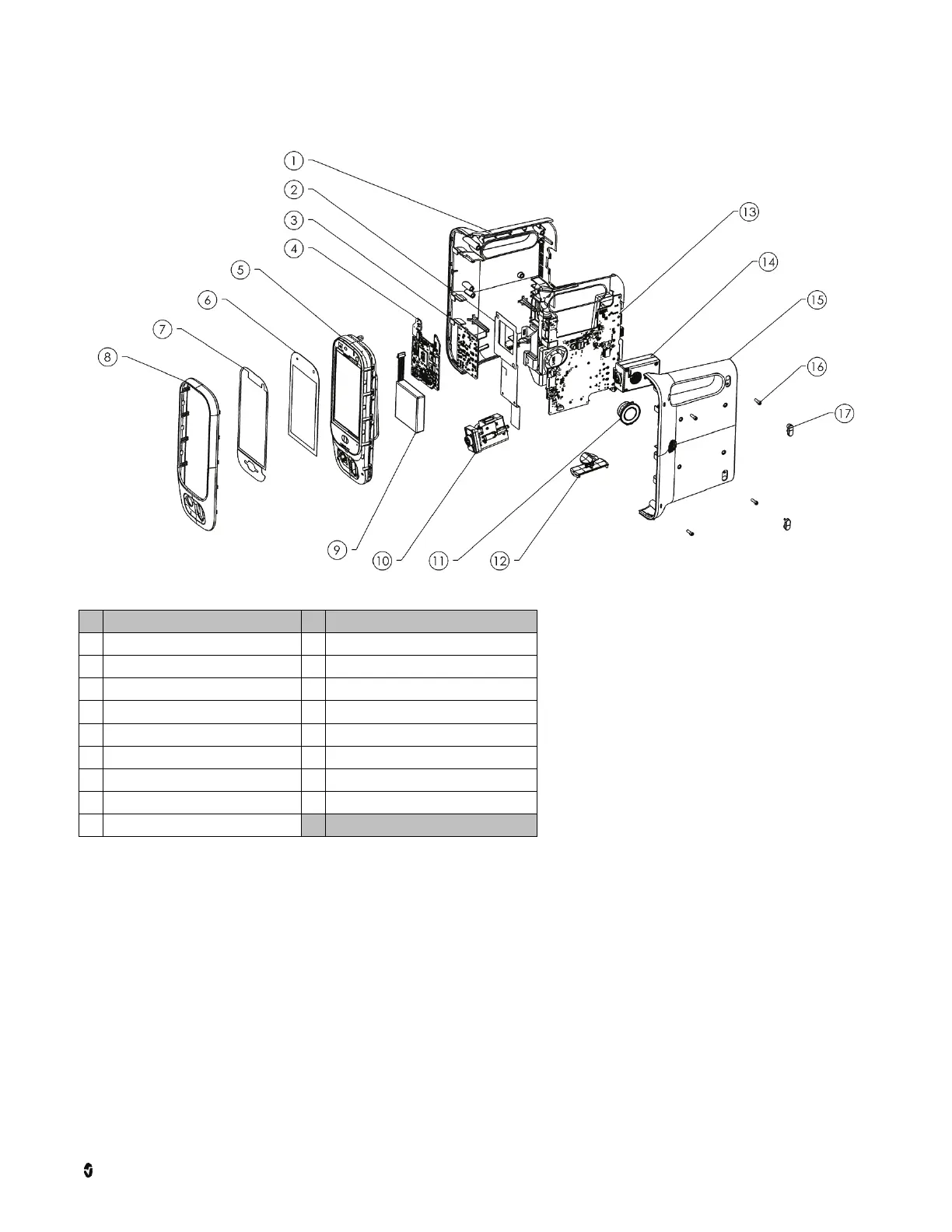

Rad-97 with NomoLine Capnography
Ref Description Ref Description
1 Rear Rad-97 Housing 10 ISA Module
2 Insulation Sheet 11 Speaker
3 MX Board 12 Swivel Foot
4 Rad-97 Instrument Board 13 Rad-97 Connectivity Board Circuit Board Assembly
5 Rad-97 Faceplate Console 14 ISA Capno PCBA
6 Rad-97 Touchscreen 15 Top Rad-97 Housing
7 Rad-97 Rubber Gasket 16 Screw, #4-40 1/4 x 3/8, Socket Hd, SS
8 Rad-97 with NomoLine Capnography Faceplate 17 Foot Bumpers
9 3.7V 4600 mAh Rechargeable Li-Ion Battery
