Rad-97 Service Manual Appendix: Rad-97 Component Diagrams
Masimo Corporation 70 www.masimo.com
Rad-97 - Version 2

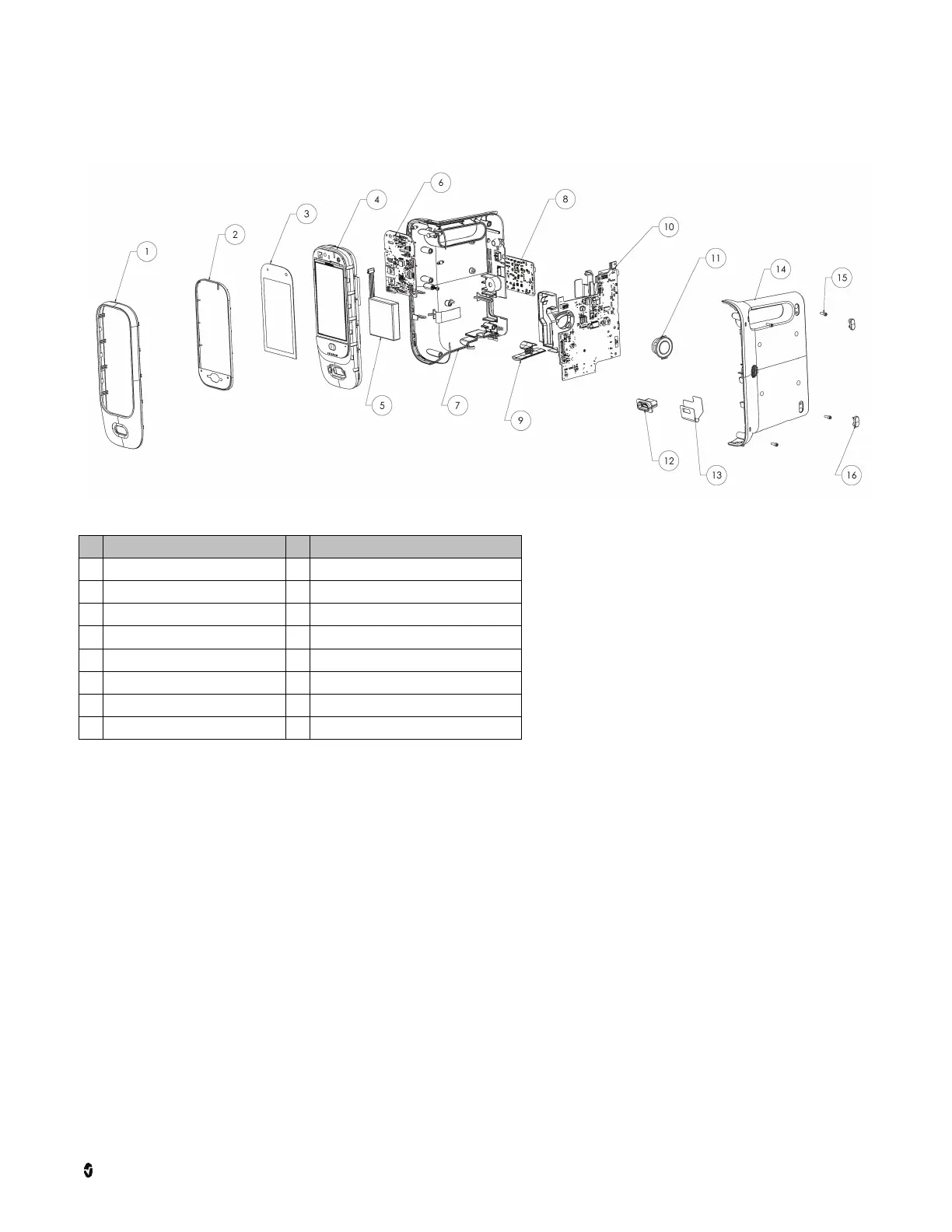

Rad-97 - Base
Ref Description Ref Description
1 Rad-97 Faceplate 9 Swivel Foot
2 Rad-97 Rubber Gasket 10 Rad-97 Connectivity Board Circuit Board Assembly
3 Rad-97 Touchscreen 11 Speaker
4 Rad-97 Faceplate Console 12 TB-20 Connector
5 3.7V 4600mAh Rechargeable Li-Ion Battery 13 Insulation Sheet
6 Rad-97 Instrument Board 14 Top Rad-97 Housing
7 Rear Rad-97 Housing 15 Screw, #4-40 1/4 x 3/8, Socket HD, SS
8 MX Board 16 Foot Bumpers
