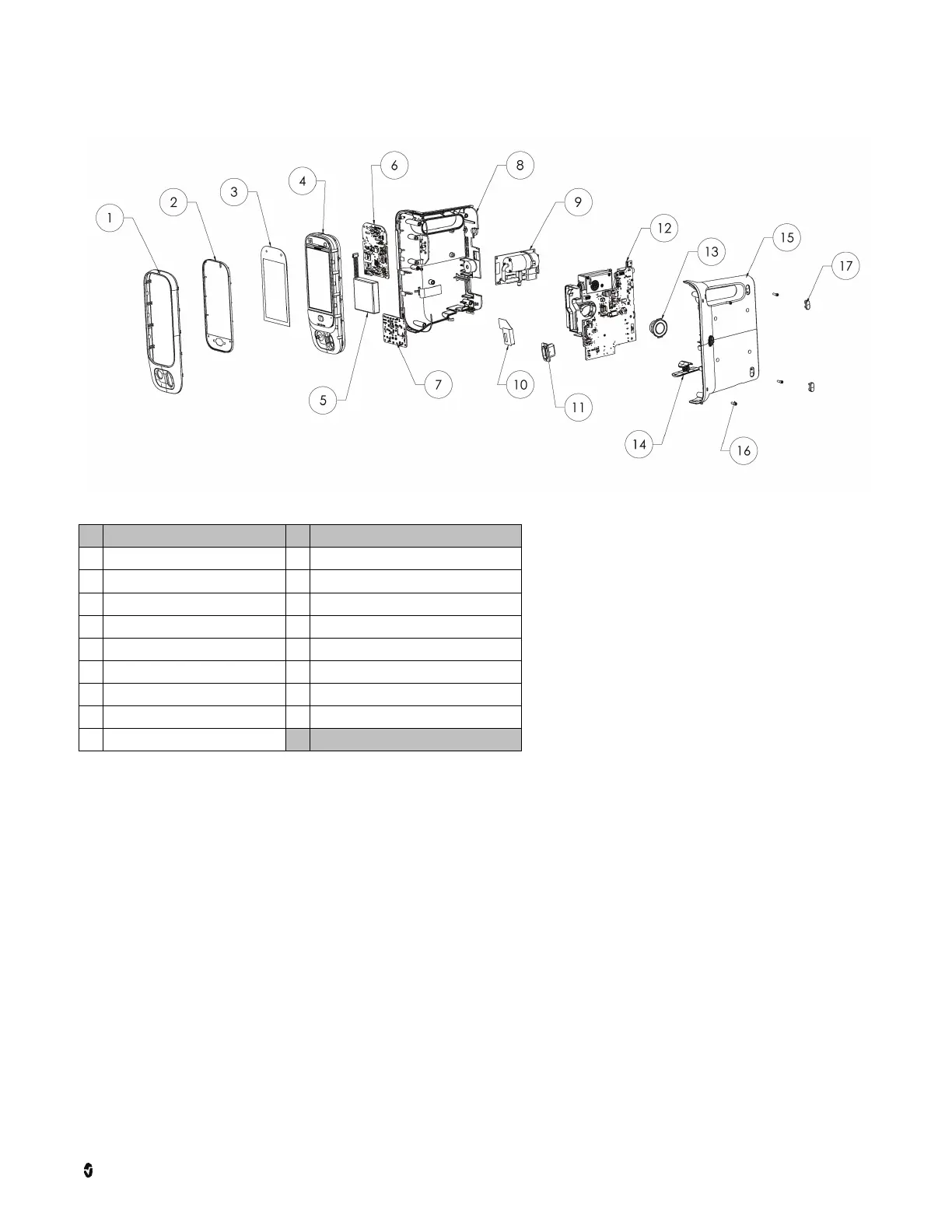

Rad-97 Service Manual Appendix: Rad-97 Component Diagrams
Masimo Corporation 71 www.masimo.com
Rad-97 with noninvasive blood pressure
Ref Description Ref Description
1 Rad-97 Faceplate 10 Insulation Sheet
2 Rad-97 Rubber Gasket 11 TB-20 Connector
3 Rad-97 Touchscreen 12 Rad-97 Connectivity Board Circuit Board Assembly
4 Rad-97 Faceplate Console 13 Speaker
5 3.7V 4600mAh Rechargeable Li-Ion Battery 14 Swivel Foot
6 Rad-97 Instrument Board 15 Top Rad-97 Housing
7 MX Board 16 Screw, #4-40 1/4 x 3/8, Socket HD, SS
8 Rear Rad-97 Housing 17 Foot Bumpers
9 NIBP Module
