Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 35 www.masimo.com
2. Select battery diagnostics and type the password “5664”.
3. Verify battery version is 2001 or higher.
This completes the Gas Gauge Programming procedure. Refer to the Directions for Use provided in the Battery Replacement Kit for more information.
Rad-97 TB-20 Connector Replacement
The following procedure provides instructions for removing the existing TB-20 connector/insulator and installing a replacement TB-20 connector/insulator in Rad-97 devices.
Contact Global Services with questions regarding the Rad-97 TB-20 Replacement Kit and/or the required tools part numbers. Contact information can be found at
http://service.masimo.com.
Supplied Parts List

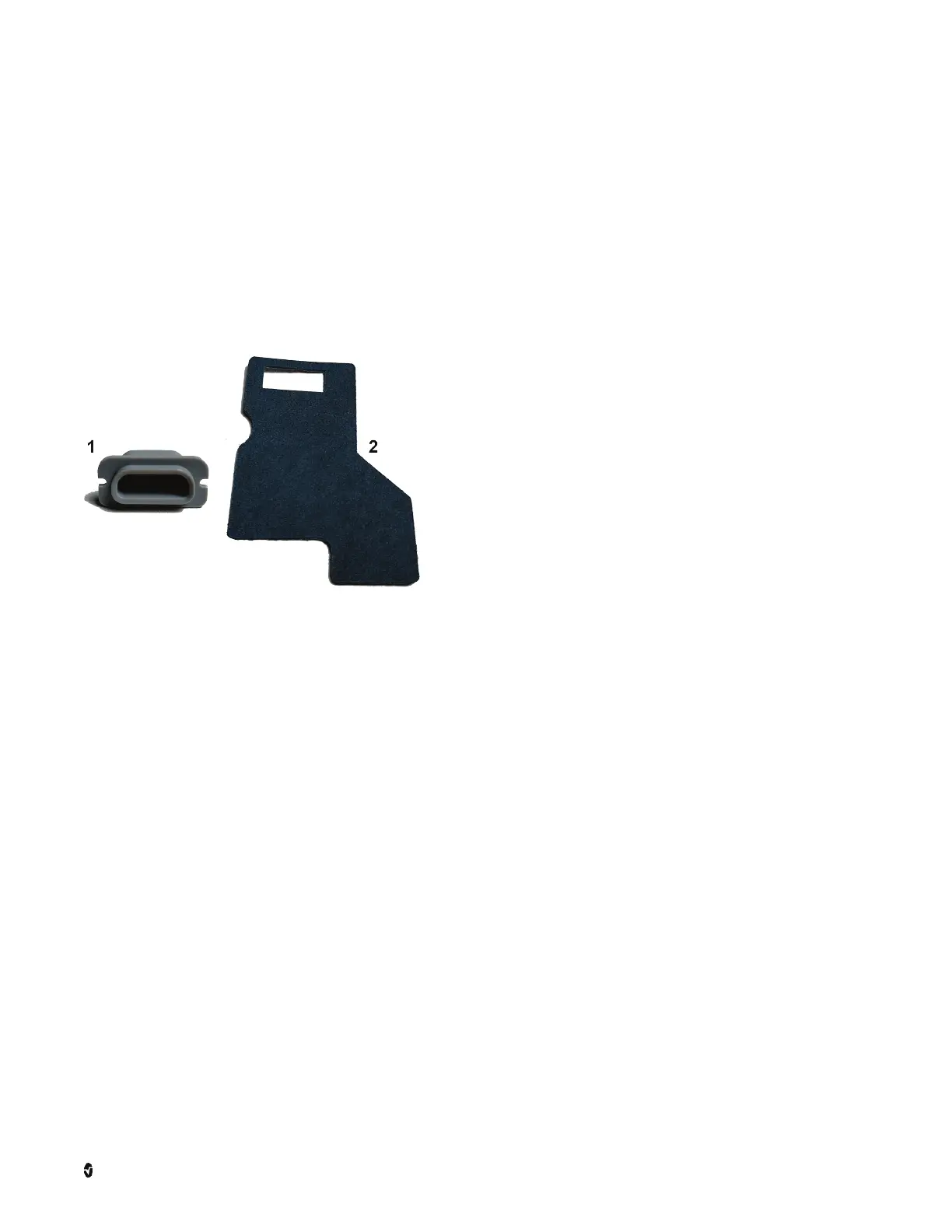

The following parts are supplied in the Rad-97 TB-20 Replacement Kit:
1 TB-20 Connector
2 TB-20 Insulator Sheet
Required Tools
The following tools are required when servicing the TB-20 connector/insulator on Rad-97:
• Needle-nose pliers
• 3/32” Allen wrench (key)
• ESD conductive wrist strap
• ESD surface
• Small, flat-tipped screwdriver
TB-20 Connector Removal (Version 1)
1. Disassemble the Rad-97 as instructed in Disassembly on page 15.

Masimo Rad-97 Specifications

General

Display Size	7 inches
SpO2 Accuracy	±2% (70-100%)
Pulse Rate Accuracy	±3 bpm
Perfusion Index Range	0.02% to 20%
Pleth Variability Index Range	0% to 100%
SpO2 Range	0% to 100%
SpHb Range	0 to 25 g/dL
SpCO Range	0% to 40%
Battery Type	Rechargeable lithium-ion
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity Range	10% to 95% non-condensing
Display	Color touchscreen
Connectivity	Wi-Fi, Ethernet, Bluetooth
Power Supply	100–240 VAC, 50–60 Hz
Battery Life	Approximately 4 hours
Measurements	SpO2, Pulse Rate, Perfusion Index, Pleth Variability Index, SpHb, SpOC, SpMet, SpCO
Pulse Rate Range	25 to 240 bpm
HbCO Range	0-99%
MetHb Range	0-99%
SpMet Range	0-99%
Data Storage	Internal memory
Alarms	Audible and visual alarms for all parameters
