Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 36 www.masimo.com

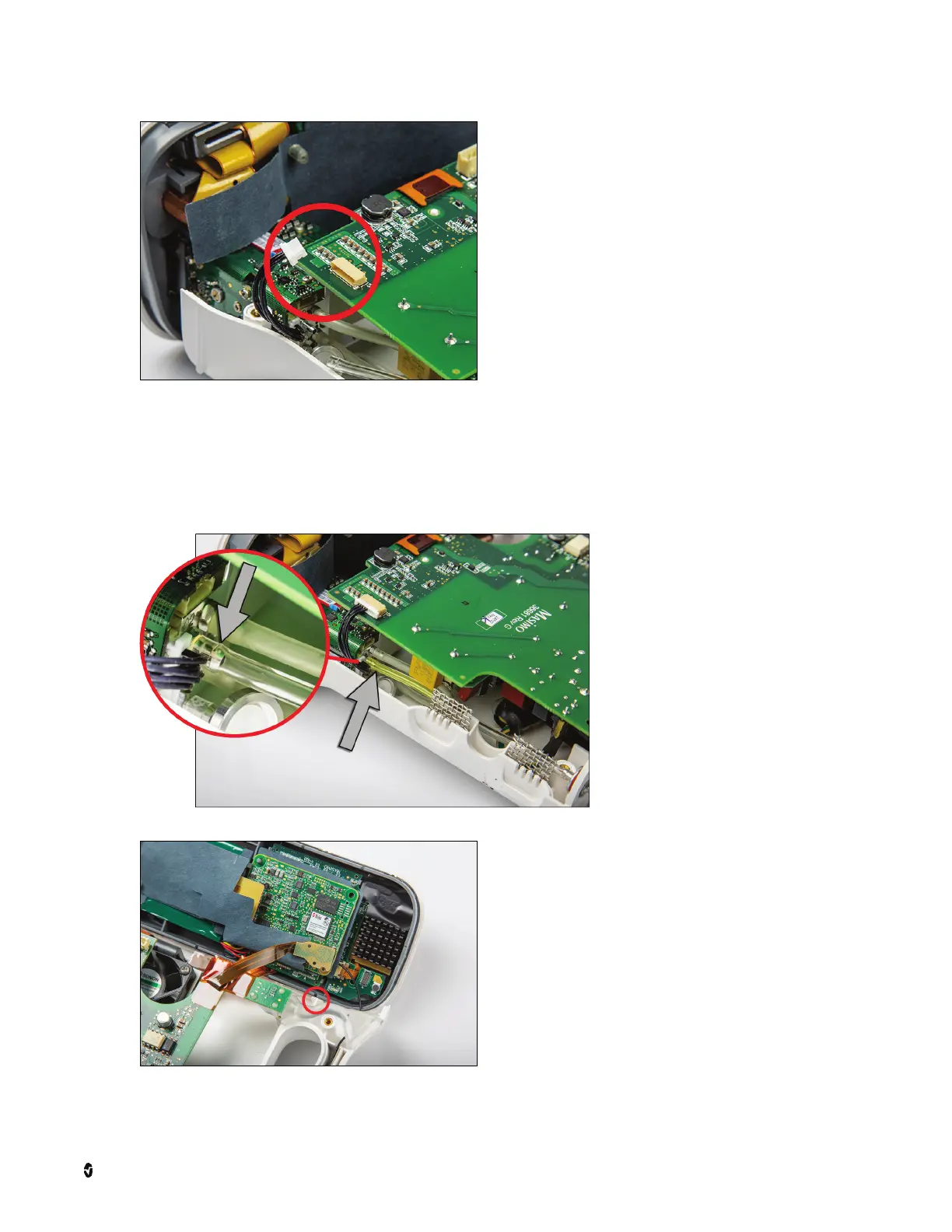

2. For Rad-97 with NomoLine Capnography, disconnect the capnography module electrical connector.
3. Lift the faceplate upwards from the case to disengage from the plastic T connections.
• For Rad-97 with noninvasive blood pressure, the NIBP tube can remain connected during the TB-20 replacement procedure.
• For Rad-97 with NomoLine Capnography, the tubing will remain connected during the TB-20 replacement procedure. Lift the faceplate very gently upwards
to disengage from the plastic T connections. Do not force the front assembly upwards. The capnography module will hit the rest of the assembly if forced.
Once the plastic T connections are disengaged, move the front assembly away from the rest of the assembly, being careful not to hit the capnography module
against anything or to disconnect the capnography tubing by pulling the front assembly too far away from the rest of the assembly.
CAUTION: Use care not to pull the bezel off of the faceplate when removing from the case.
4. Carefully disconnect the ribbon cable from the circuit board.
