Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 37 www.masimo.com

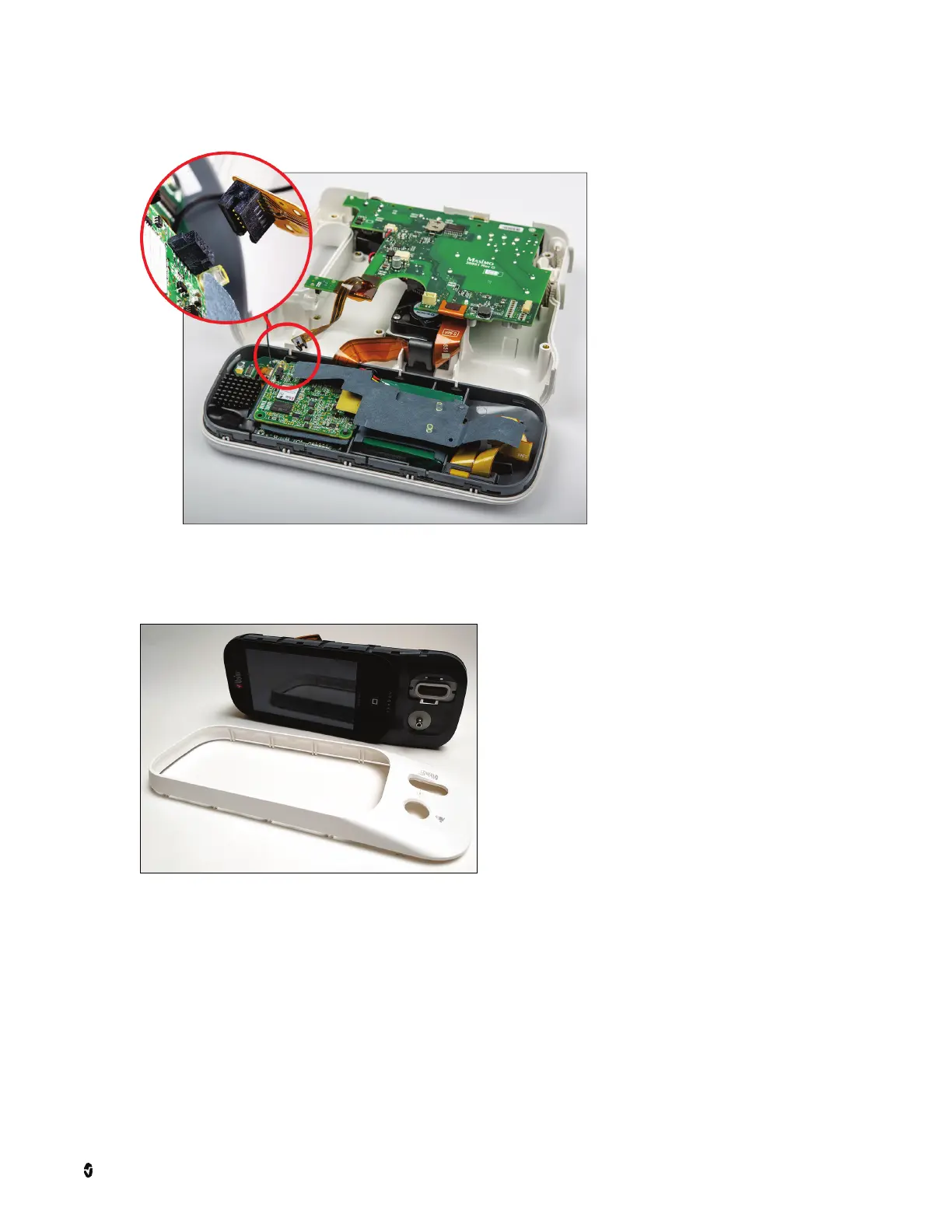

• For Rad-97 with NomoLine Capnography, the capnography tubing will prevent the front assembly from lying flat on the working surface, but the procedure is
the same. Work within the space between the front assembly and the main assembly with the tubing still connected. Take care not to disconnect the
capnography tubes.
5. Remove the faceplate cover from the front assembly by carefully using two hands, one to hold the white faceplate, and the other to hold the front assembly, and
pulling them gently apart to separate them.
Note: Rad-97 with NIBP shown, others similar.
6. Fold the insulating sheet away from the connector and unplug the connector from the back of the TB-20.
