Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 38 www.masimo.com
Note: Rad-97 with NIBP shown, others similar.

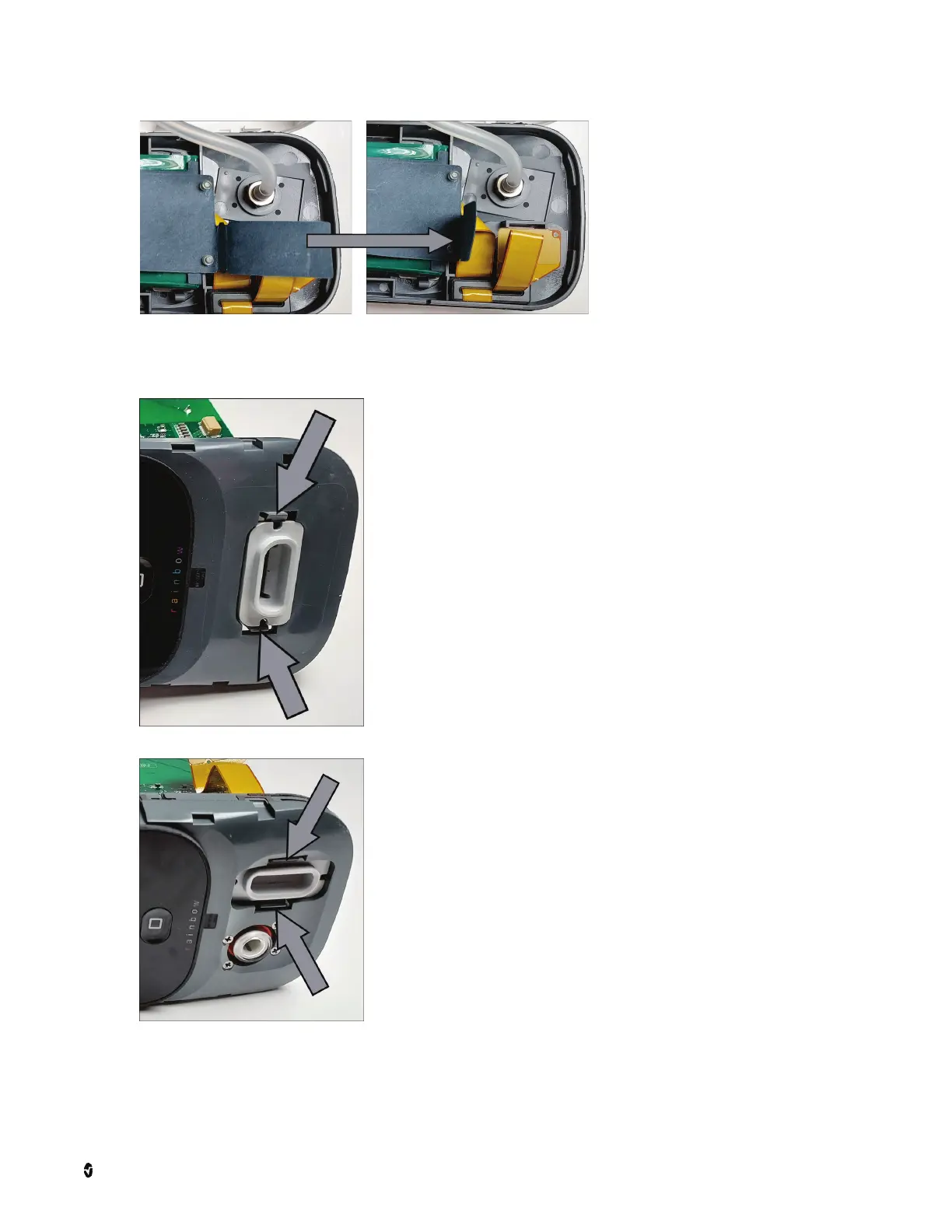

7. Remove the TB-20 from the front assembly by pulling the tabs away from the TB-20 and pushing the connector outwards from the back of the front assembly.
Rad-97 Base
Rad-97 with NIBP or Rad-97 with NomoLine Capnography
8. This completes the Rad-97 Version 1 TB-20 connector removal procedure.
