Masimo Rad-97 Service Manual

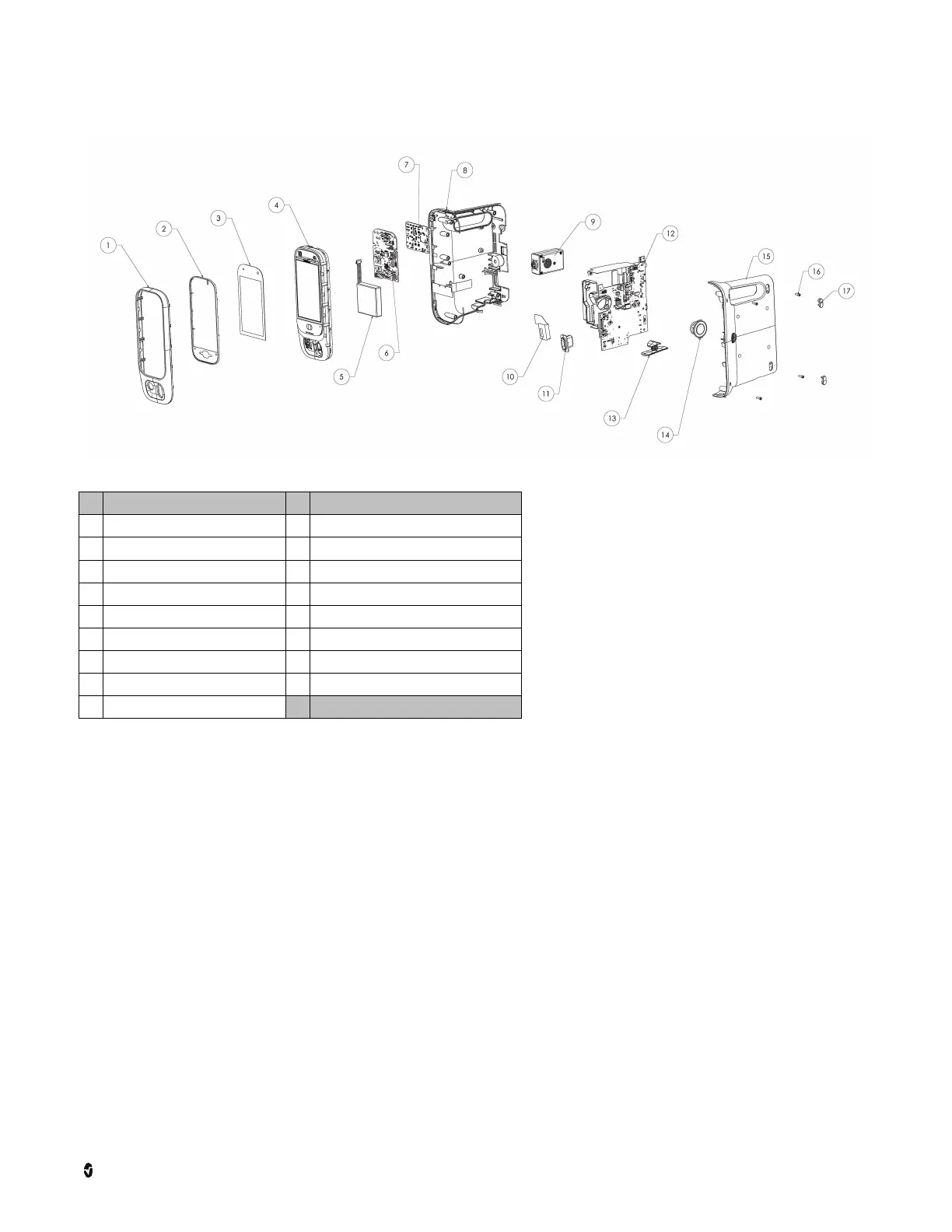

Rad-97 Service Manual Appendix: Rad-97 Component Diagrams
Masimo Corporation 72 www.masimo.com
Rad-97 with NomoLine Capnography
Ref Description Ref Description
1 Rad-97 Faceplate 10 Insulation Sheet
2 Rad-97 Rubber Gasket 11 TB-20 Connector
3 Rad-97 Touchscreen 12 Rad-97 Connectivity Board Circuit Board Assembly
4 Rad-97 Faceplate Console 13 Swivel Foot
5 3.7V 4600mAh Rechargeable Li-Ion Battery 14 Speaker
6 Rad-97 Instrument Board 15 Top Rad-97 Housing
7 MX Board 16 Screw, #4-40 1/4 x 3/8, Socket HD, SS
8 Rear Rad-97 Housing 17 Foot Bumpers
9 ISA Module

Masimo Rad-97 Specifications

General

Display Size	7 inches
SpO2 Accuracy	±2% (70-100%)
Pulse Rate Accuracy	±3 bpm
Perfusion Index Range	0.02% to 20%
Pleth Variability Index Range	0% to 100%
SpO2 Range	0% to 100%
SpHb Range	0 to 25 g/dL
SpCO Range	0% to 40%
Battery Type	Rechargeable lithium-ion
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity Range	10% to 95% non-condensing
Display	Color touchscreen
Connectivity	Wi-Fi, Ethernet, Bluetooth
Power Supply	100–240 VAC, 50–60 Hz
Battery Life	Approximately 4 hours
Measurements	SpO2, Pulse Rate, Perfusion Index, Pleth Variability Index, SpHb, SpOC, SpMet, SpCO
Pulse Rate Range	25 to 240 bpm
HbCO Range	0-99%
MetHb Range	0-99%
SpMet Range	0-99%
Data Storage	Internal memory
Alarms	Audible and visual alarms for all parameters
