Mastervolt MASS COMBI 12/2500-100 User Manual

INSTALLATION
22 May 2010 / Mass Combi 12/2500-100; 24/2500-60; 48/2500-35; 48/5000-70 / EN

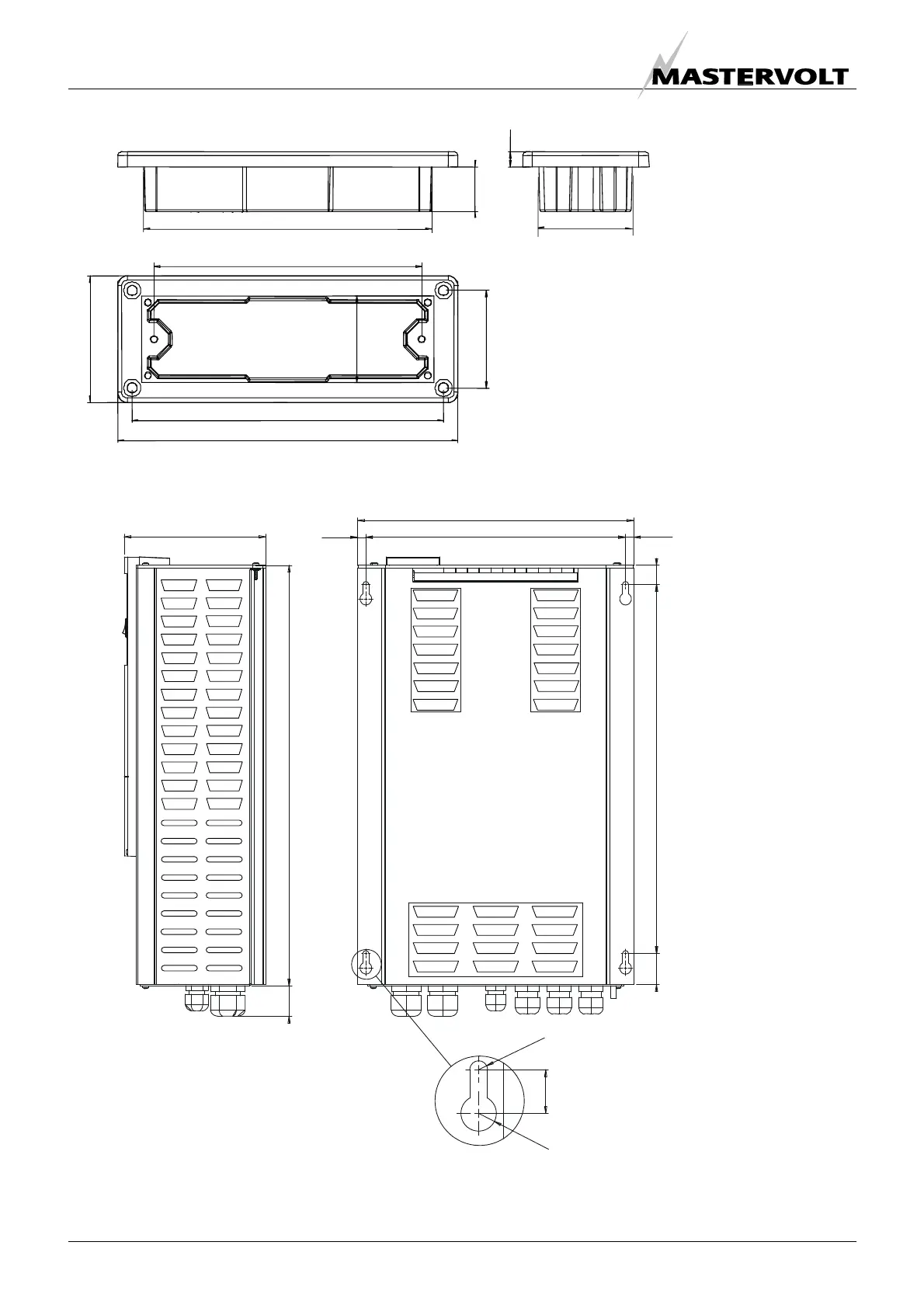

Figure 23: Dimensions in mm [inch] of the mounting box of the ICC remote panel and the APC remote panel
Figure 24: Dimensions in mm [inch] of the Mass Combi 12/2500-100, 24/2500-60, 48/2500-35 and 48/5000-70
110 [4.3]
128 [5.0]
140 [5.5]
39 [1.5]
52 [2.0]
40 [1.6]
118.5 [4.7]
18.5
[0.73]
6
[0.24]
39 [1.5]
318 [12.5]
300 [11.8]
405.5 [16.0]
21
[0.8]
34
[1.3]
9
[0.35]
9
[0.35]
156 [6.1]
462 [18.2]
34
[1.3]
R3.25 [R0.13]
R6.5 [R0.26]
16
[0.62]
Mass Combi 2500: 156 [6.1]
Mass Combi 5000: 279 [11.0]
