MASTERBUS
EN / Mass Combi 12/2500-100; 24/2500-60; 48/2500-35; 48/5000-70 / May 2010 35
8.3 MASTERBUS: MONITORING AND CONFIGURATION OF THE MASS COMBI
8.3.1 Monitoring
Value Meaning Default Adjustable range
Basic setup
Mode Operation mode of the Mass Combi. When “Charger” is
selected, the Mass Combi operates in “Charger Only mode”, see
section 4.2.3
Auto Auto, Charger
Shore Fuse Limitation of the AC-input current when “Input Select” is set to
“Shore” (Power Sharing setting)
25A 6A, 10A, 16A, 25A
Input Select Selection of the AC-input source. When set to “Shore”, the AC-
input current is limited by the “Shore Fuse” setting. When set to
“Generator”, the AC-input current is limited by the ”Generator
limit” setting; see section 8.3.2, Extra settings.
Shore Shore, Generator
State
State Shows the state of the Mass Combi, i.e. “Inverting”, “Charging”
or “Stand-by”.
(read only)
Load Charger mode: Displays the DC charge current as a percentage
of the maximum current
Inverter mode: Displays the AC power as a percentage of the
nominal inverter power
(read only)
Charger
Charge state Status of the battery charger (“Bulk”, “Absorption” or “Float” (read only)

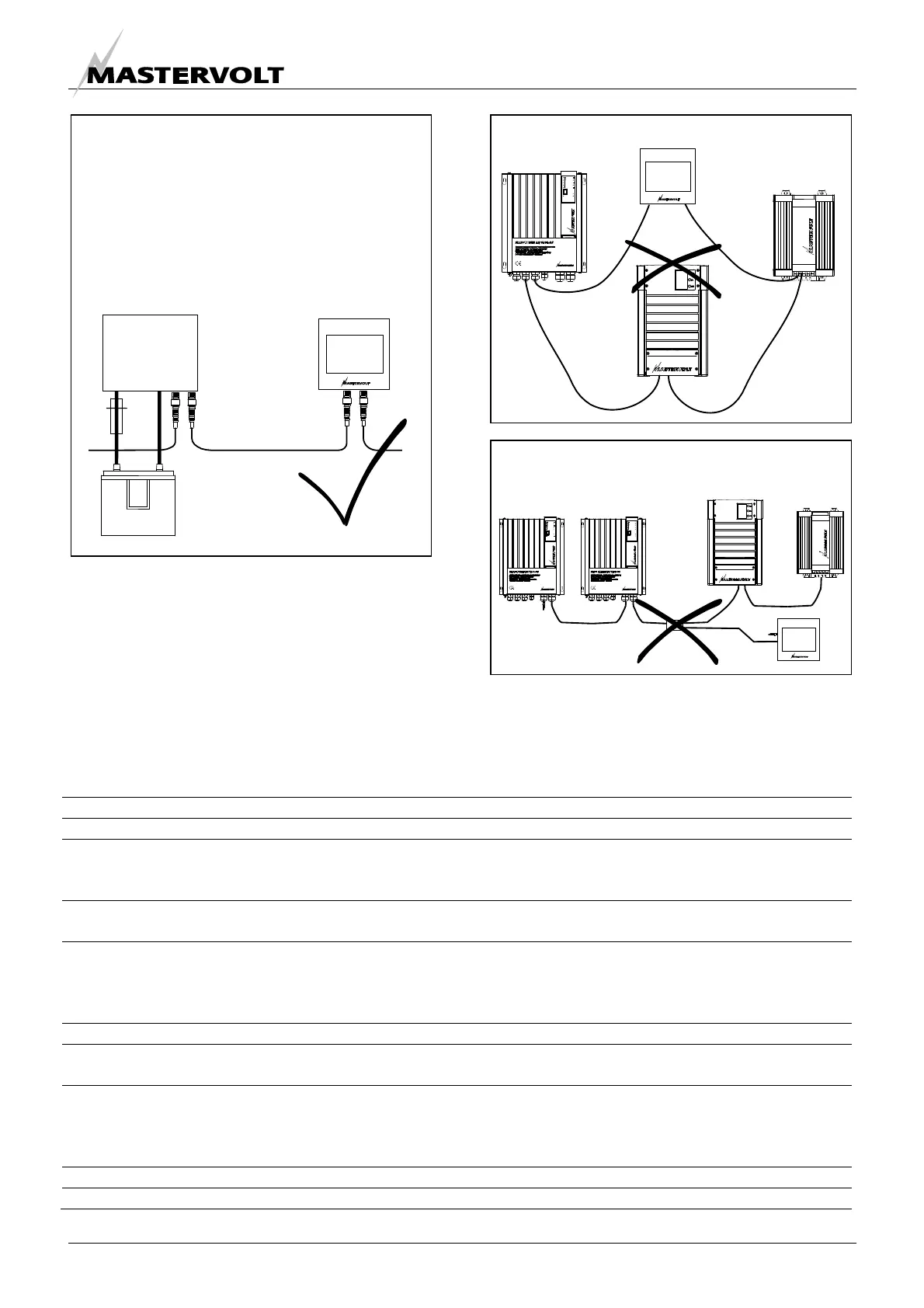

Do not make T-connections in the network
Do not make ring networks
The electric power for the network comes from the
connected devices.
At least one device in the network should have
powering capabilities (see specifications).
One powering device can power up to three non-
powering devices.
As all powering devices are galvanically isolated,
multiple powering devices are allowed
OK
To Next Page
