Matrix Vision User Manual

Matrix
120
Vision System Manual
Internet Ready Port
What’s this?
• The Vision offers a dedicated port to surf the Internet. This port is called Internet Ready Port. The modem of
the PC used to surf the Internet should be connected to this Internet Ready Port. Whenever giving is to be
done a command should be issued which will connect trunk 2 directly to this port.
• The user need not require direct trunk connection up to computer or does not even need to dial the trunk
access code in the dial up sequence.
How it works?
• On issuing Internet ready code, trunk 2 gets directly connected to Internet Ready Port. Now trunk 2 is not
accessible to the stations. This code shall be accepted by the system only when trunk 2 is free.
• On completion of surfing, when a command to cancel this feature is issued, trunk 2 gets diverted to trunk
port2. Now it becomes accessible to the stations.
NC
NC
C
C
NO
NO
Normal
Trunk
Port
To
Modem
of PC
L3
L2
L1
ETH
Vision
NC
NC
C
C
NO
NO
Normal
Trunk
Port
To
Modem
of PC
L3
L2
L1
ETH

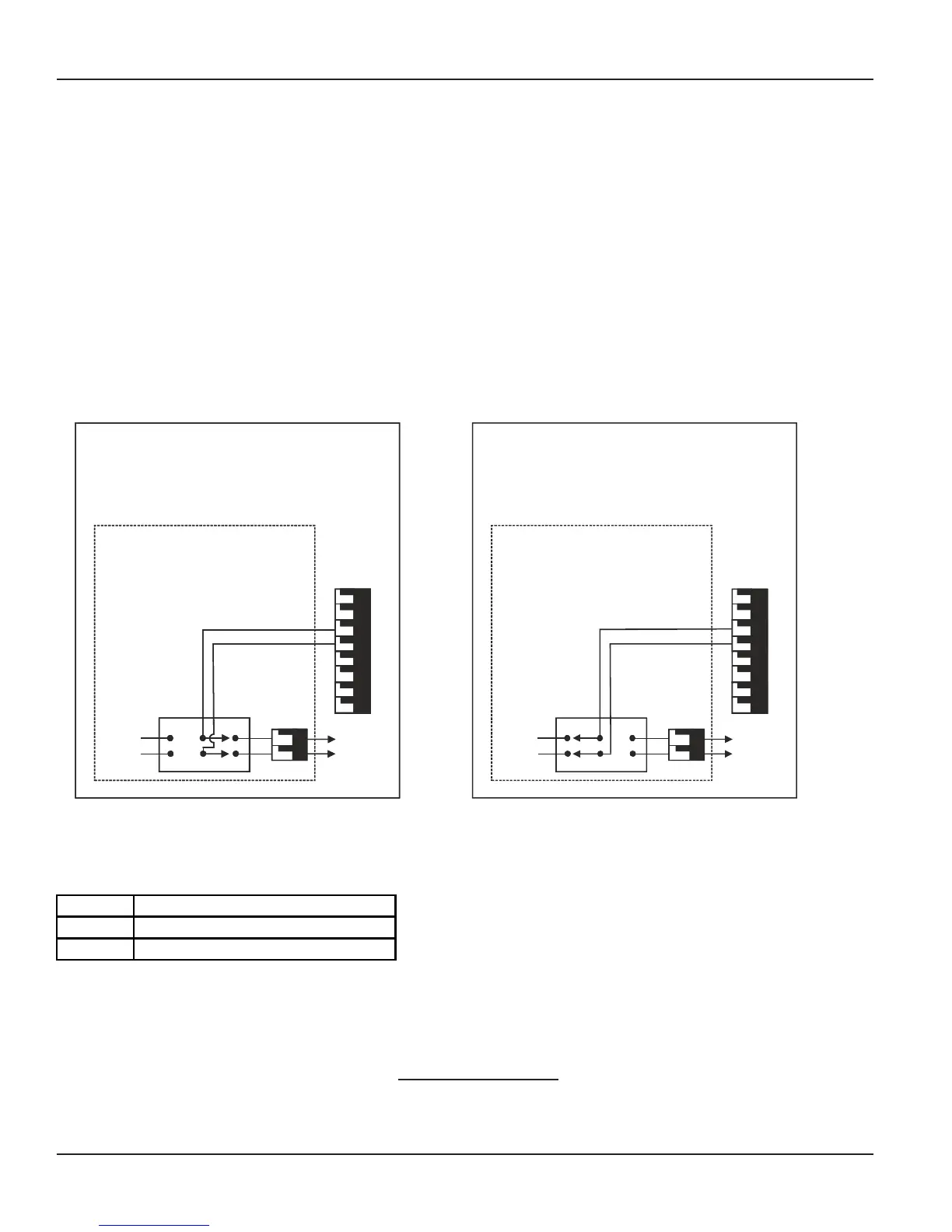

Internet Ready Port Active ( ) 2101-1
NC
NC
C
C
NO
NO
Normal
Trunk
Port
To
Modem
of PC
L3
L2
L1
ETH
Vision
Internet Ready Port Inactive ( ) 2101-0
How to program?
Use following command to activate/deactivate Internet Ready Port:
2101-Code
Where,
Code Meaning
0 Deactivate Internet Ready Port
1 Activate Internet Ready Port
By default, Internet Ready Port is Inactive.
Important Points:
• This command is allowed from SA mode/SE mode.
• Please note that trunk2, marked L2 on the MDF can only be diverted to Data port.
• To know programming details, please refer “Configuration Reports”.
