Confi guring the Device
®
2. Move the nozzle head down until it is just above the
openings of the fi rst column of wells in the plate.
3. Visually check to see that the nozzle tips are straight
and centered over the wells. If the tips are not
centered, adjust the front to back position by turning
the knob on the Y-axis arm.
Note: Use the 1.5 mm Allen wrench that is provided to
tighten the setscrew after Y-axis adjustment.
4. Raise the nozzle tips. Put the nozzle height spacer
guide on top of the microplate and then push the
lever on the nozzle tips arm down until the two
black standoffs on the tip holder rest on top of the
spacer guide. This sets an ideal nozzle height for
dispensing.

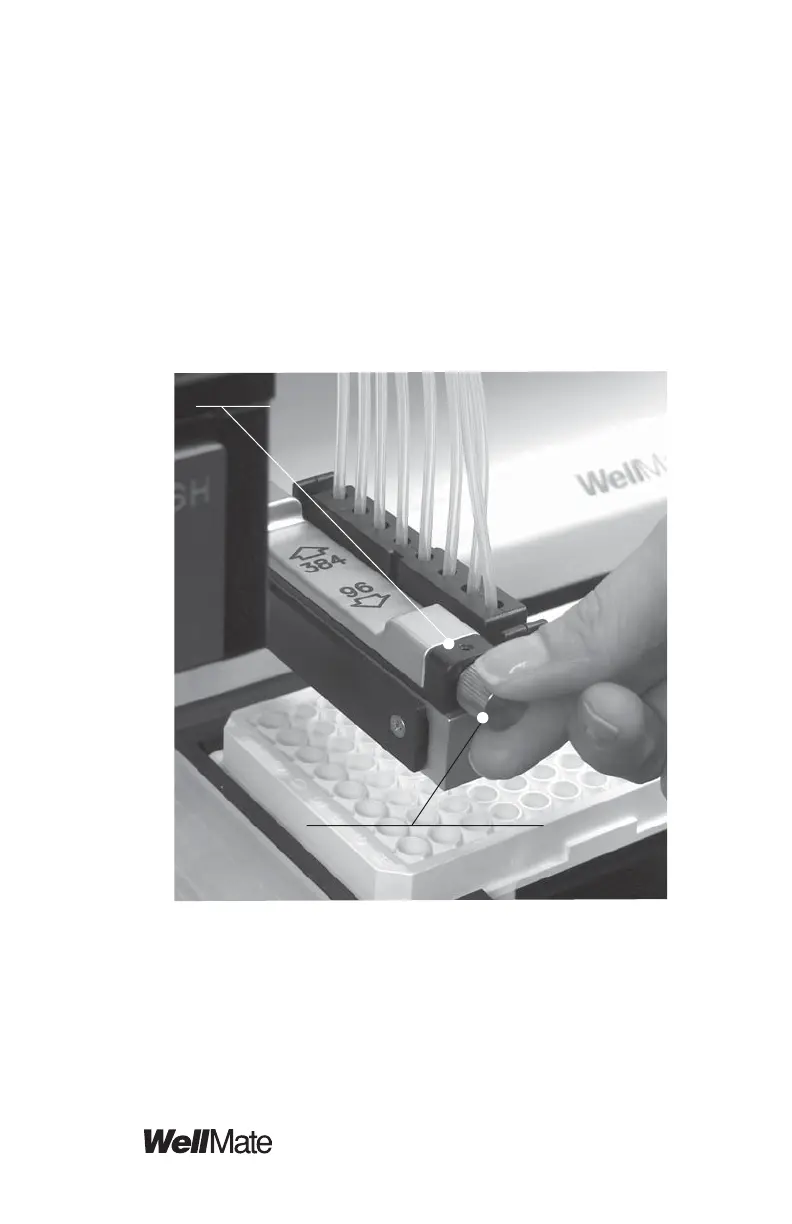

Turn knob to adjust Y-axis arm
Setscrew
