Mauldin 1860 - Page 29

23
Calder Brothers Corp
V 1.0
Serial Number Range:
874-S-86TCX5Y2*03874 to _____________
Model: 1860 Paver
Dual Operator Feed Setup
Left hand operators station controls left hand feed systems. Right hand operators station controls right hand feed
system. Both operator stations control hopper, screed and extension functions.
1. Select dual operators on digital display.

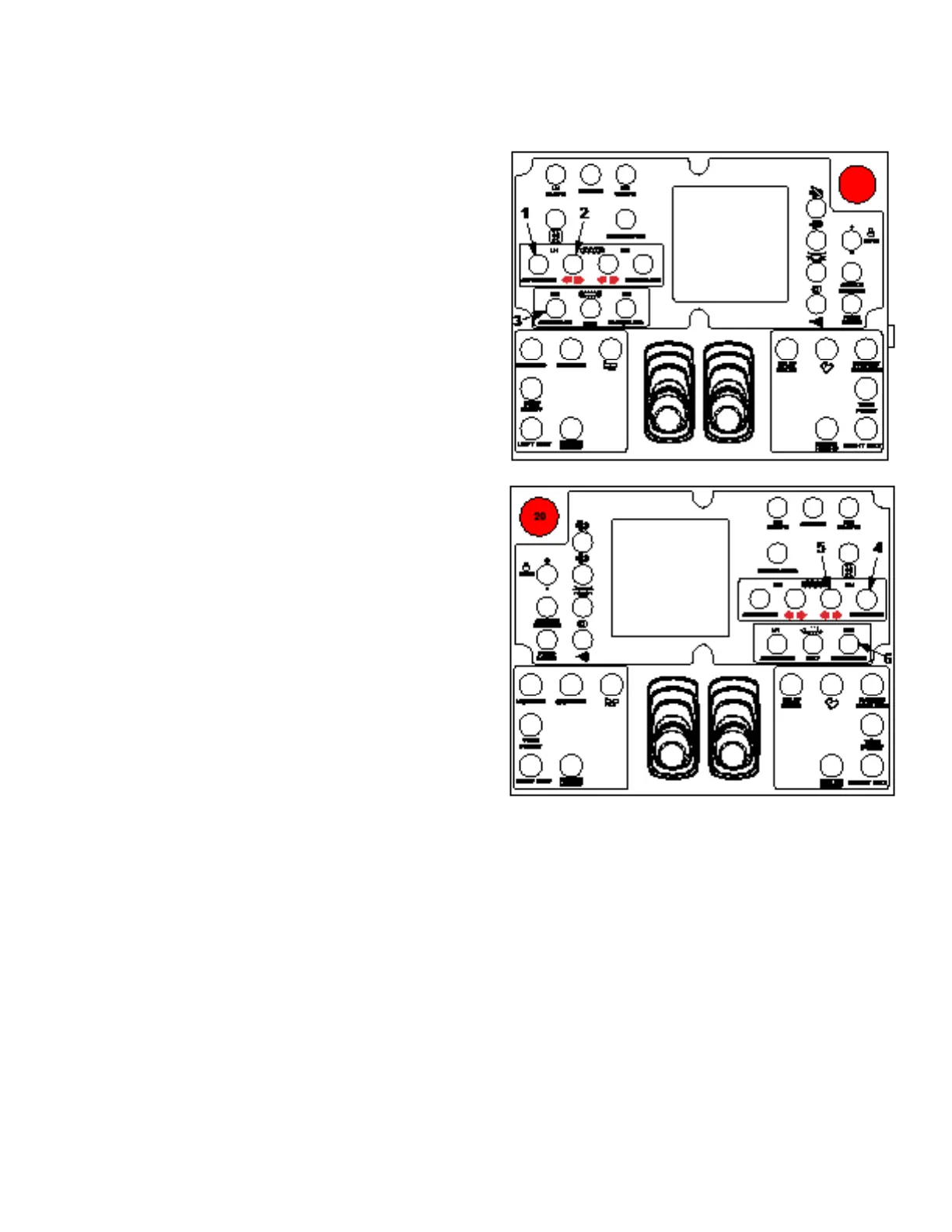

At left hand operators station:
2. Move left hand auger switch (1) to auto position.
3. Move left hand auger direction switch (2) to out ◄
position.
4. Move left hand conveyor switch (3) to auto position. Left
hand auger icon should be illuminated.
At right hand operators station:
5. Move right hand auger switch (4) to auto position.
6. Move right hand auger direction switch (5) to out ►
position.
7. Move right hand conveyor switch (6) auto position.
Right hand auger icon should be illuminated.
