Mauldin 1860 - 4 Material Feed; Automatic Material Feed Operation

22
Calder Brothers Corp
V 1.0
Model: 1860 Paver
SN:
Serial Number Range:
874-S-86TCX5Y2*03874 to _____________
4. Material Feed
4.1 Automatic Material Feed Operation
Single Operator Feed Setup
Active operators station controls all feed systems. Both operator stations can control hopper screed and
extensions at any time regardless if dual or single mode is selected.

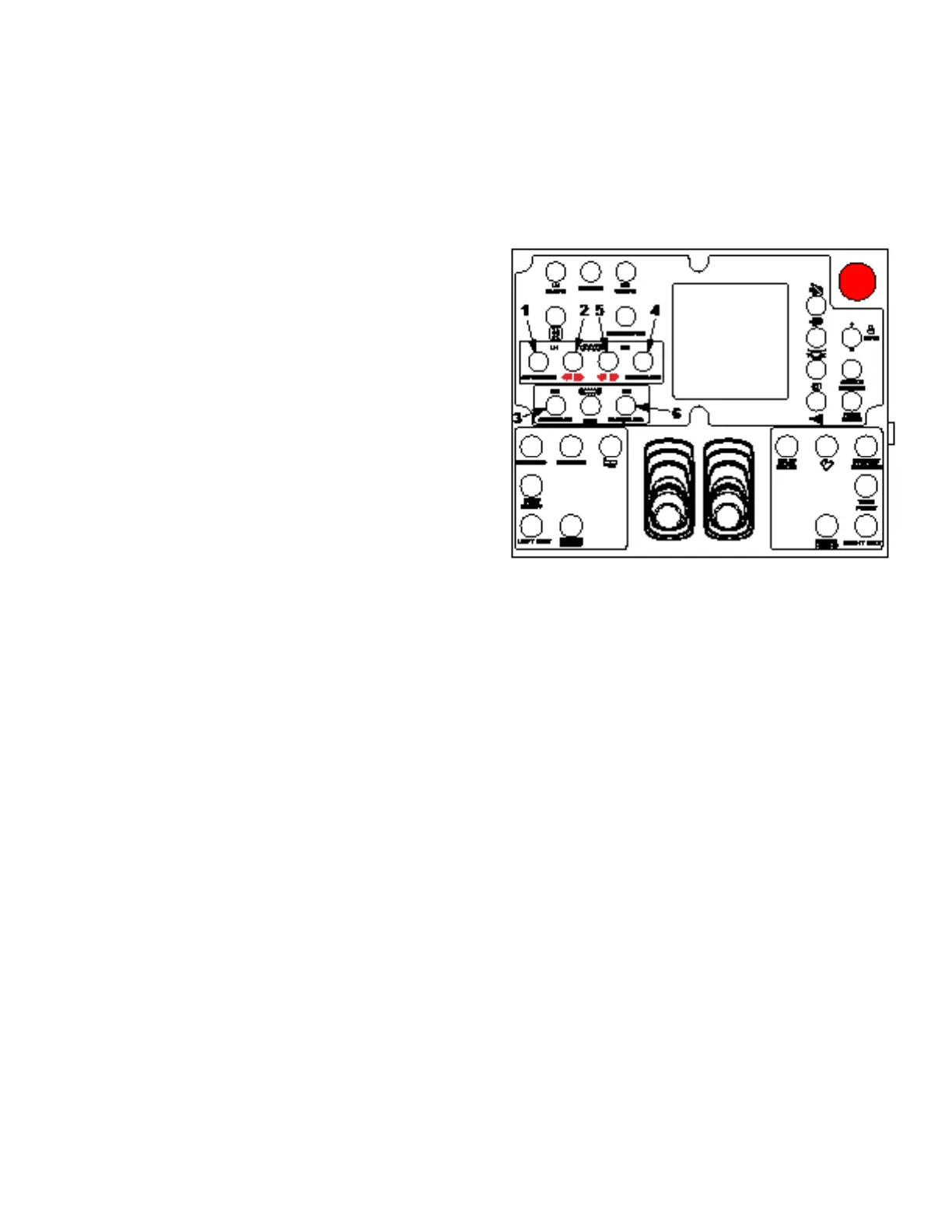

At active operators station:
1. Select single on feed control screen on digital display.
2. Move left hand auger switch (1) to auto position.
3. Move left hand auger direction switch (2) to out ◄
position.
4. Move left hand conveyor switch (3) to auto position. Left
hand auger icon should be illuminated.
5. Move right hand auger switch (4) to auto position.
6. Move right hand auger direction switch (5) to out ►
position.
7. Move right hand conveyor switch (6) auto position.
Right hand auger icon should be illuminated.
