29
Calder Brothers Corp
V 1.0
Serial Number Range:
874-S-86TCX5Y2*03874 to _____________
Model: 1860 Paver
5.2 Extension Setting
5.2.1 Prepare Paver For Screed Adjustments
1. Start paver engine. See Section 3.4 Start Engine.
^ WARNING
Crush hazard.
A raised screed may lower unexpectedly.
Engage screed support locks to support screed.
Do not place any part of body under any part of screed.

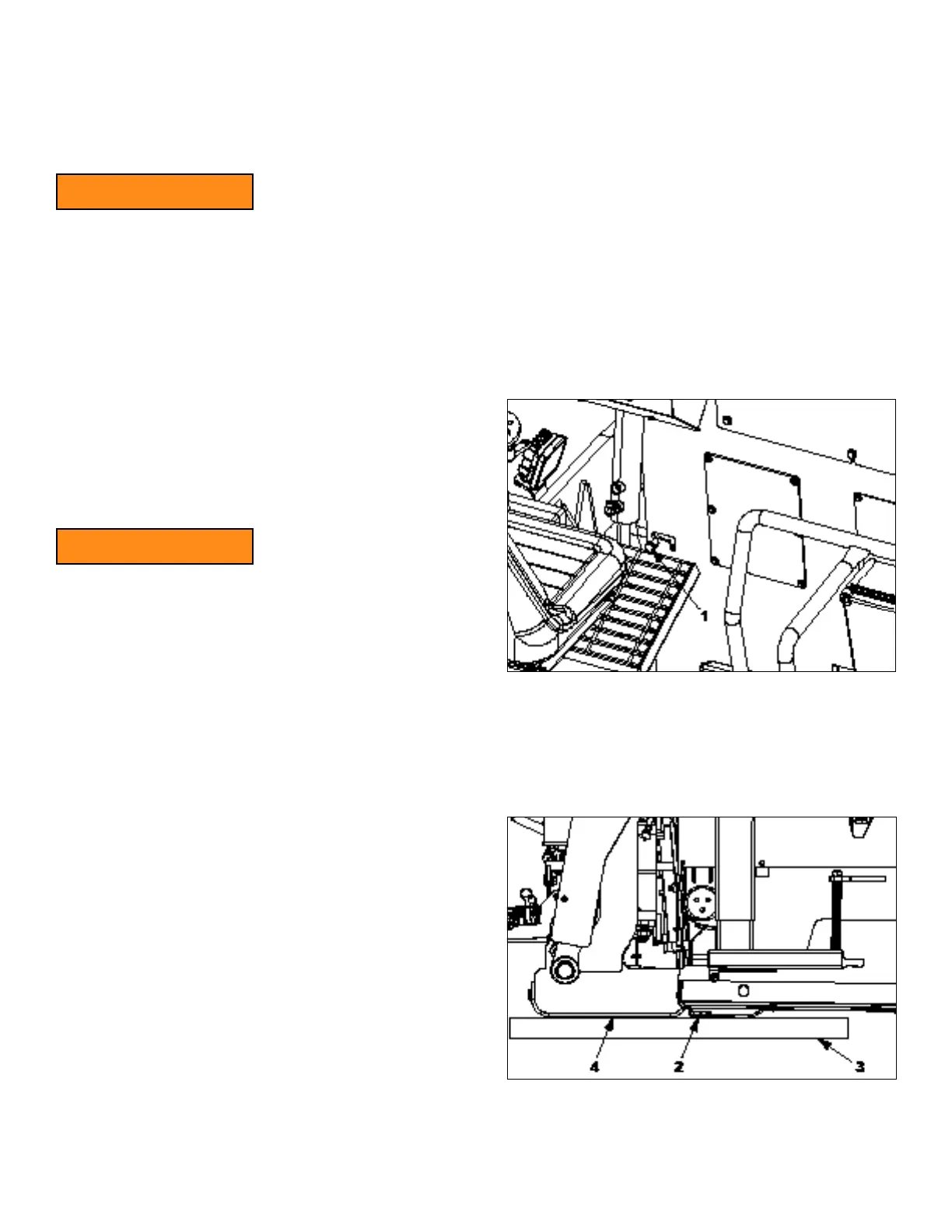

2. Fully raise screed and engage support locks (1) as
shown on each side of paver.
3. Lower screed until screed arms are resting on support
locks.
4. Fully retract screed extensions.
^ WARNING
Crush hazard.
Paver can be inadvertently started and moved.
Stop engine, remove key and place a Do Not
Operate tag on ignition switch.
5. Stop paver engine, remove key and place a Do Not Operate tag on ignition switch.
5.2.2 Set Match Height
1. With paver engine running, adjust screed extension
match height until extension screed plate trailing edge
(2) just touches straight edge (3) held against the bottom
of main screed (4) at the outside edge.
2. Prepare paver for screed adjustments. See Section
5.2.1 Prepare Paver For Screed Adjustments.
To Next Page
