9
Machine Preparation

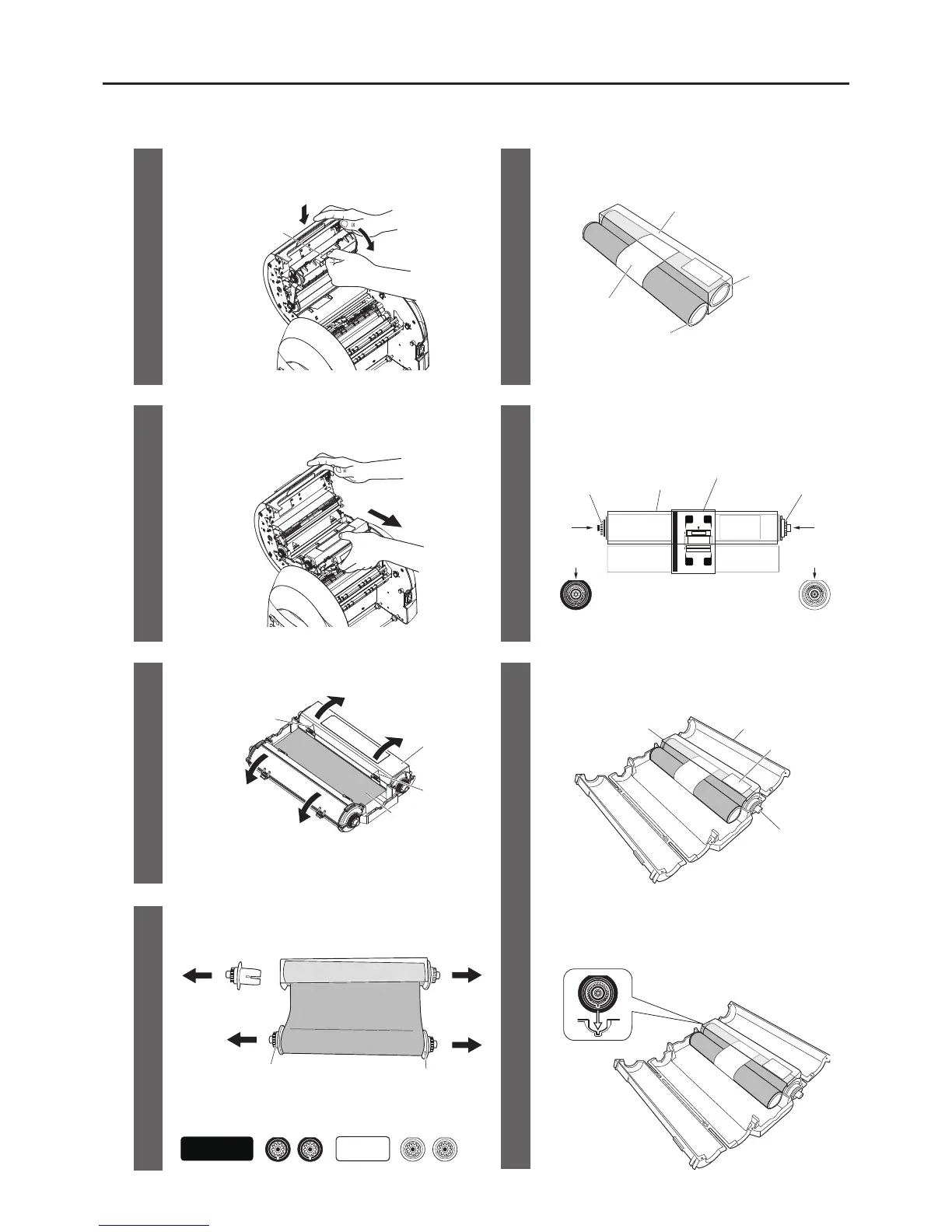

ReplacingtheRibbonRell
1
Open the door cover. Hold the rellable ribbon
cartridge catch and pull it forward.
5
Prepare the new ribbon rell.
Catch
Transparent Frame
Retaining Tape
Take Up Core
Take Up Core
2
Turn the cartridge downward and then pull it out.
6
Insert two gears (one orange, one green) into
the take up core on the transparent frame side.
Ensure the at edges are face up.
※交換手順の詳細は箱に印字の説明を参照ください。
リボンギヤ取付位置とリボン取付方向
透明枠
Transparent Frame
Retaining Tape
Green
Orange
Flat
edge up
Flat
edge up
3
Open the cartridge cover and remove the old
ribbon rell.
7
Place the transparent frame side of the ribbon
rell into the cartridge on the at cover side.
If the cover is difcult to open, pull up the location
indicated as
and then
.
Green
Orange
Label
Flat Cover
4
Remove the four gears (two orange, two green)
from the ribbon rell take up core.
Firmly insert the protruding part of the orange
gear into the recessed part of the cartridge.
Orange
Green
The shape of the orange gears are different from
that of the green gears.
Orange Green
Ribbon Refill
Flat Cover
