DP-20 WEB GUIDE CONTROLLER USER MANUAL
www.maxcessintl.com
DP-20
MI 1-862 1 F
4
4-3

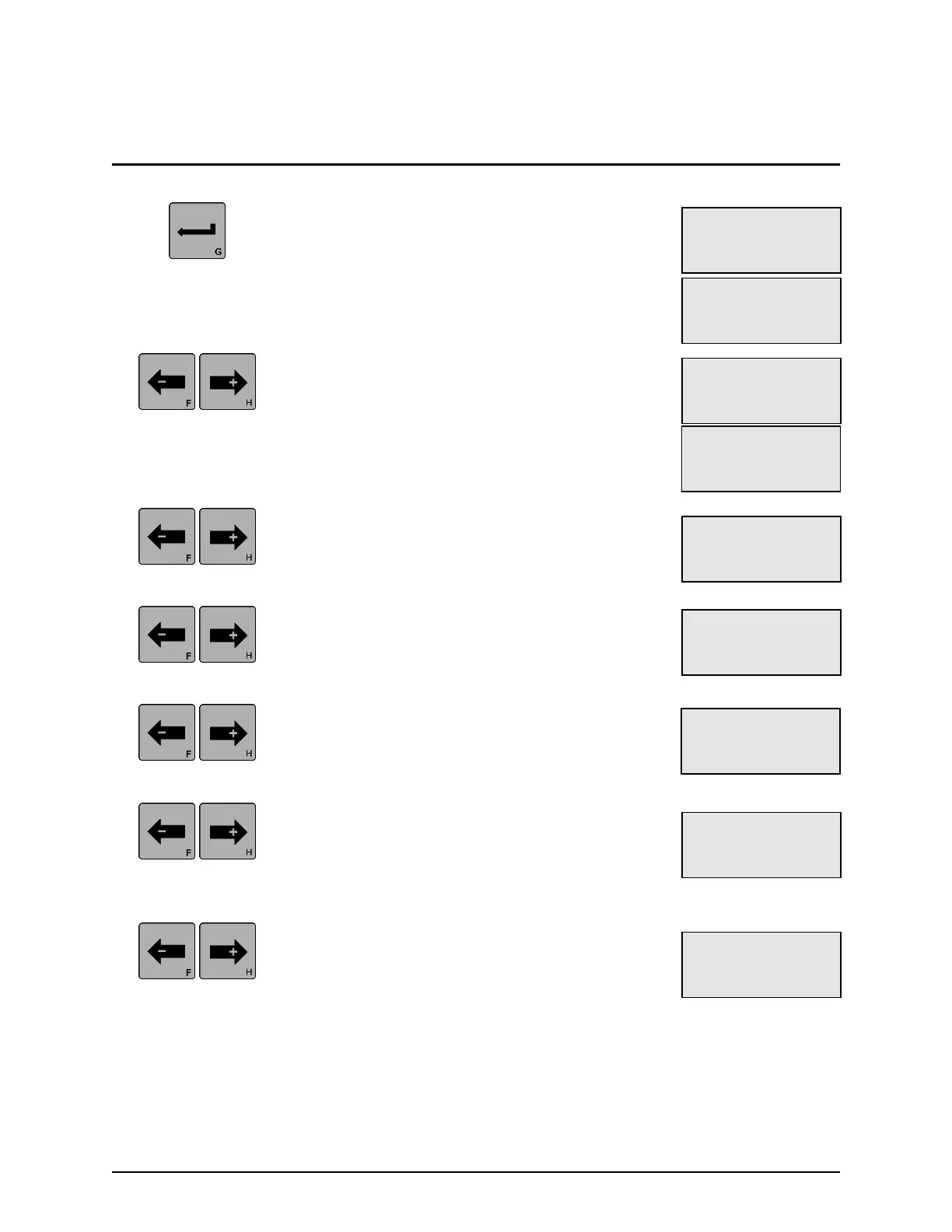

3. Press the ENTER key to view the Measurement
menus. The level of the guiding signal from the
Left Edge Sensor (Line Center if a line sensor is
being used) is displayed on Line 4. This signal
has been scaled by values which were
determined during the Sensor Calibration
procedure.
4. Use the ARROW keys to scroll to the desired
Measurement menu. Next in the list is the Right
Edge Sensor (Line Edge if a line sensor is being
used). The guiding signal is displayed on Line 4.
This signal has been scaled by values which
were determined during the Sensor Calibration
procedure.
5. Use the ARROW keys to scroll to the desired
Measurement menu. Next in the list is the
Servo-Center Sensor. The sensor signal is
displayed on Line 4.
6. Use the ARROW keys to scroll to the desired
Measurement menu. Next in the list is the
TACHOMETER. The tachometer signal is
displayed on Line 4.
7. Use the ARROW keys to scroll to the desired
Measurement menu. Next in the list is the
MOTOR TYPE. The motor type is displayed on
Line 4.
8. Use the ARROW keys to scroll to the desired
Measurement menu. Next in the list is the
DIGITAL INPUTS. The status of the inputs is
displayed on Line 4. The order in which the
inputs are displayed is 5,4,3,2,1,0.
9. Use the ARROW keys to scroll to the desired
Measurement menu. Next in the list is the
FIRMWARE VERSION. The version number of
the firmware is displayed on Line 4.
ר 1C.3.1
MEASUREMENT
× SENSOR (X5)
-ããããÜÜÜÜ+ 50%
ר 1C.3.2
MEASUREMENT
Ø SENSOR (X4)
-ããããÜÜÜÜ+ 50%
ר 1C.3.3
MEASUREMENT
~ƒ SENSOR (X2)
-ããããÜÜÜÜ+ 50%
ר 1C.3.4
MEASUREMENT
TACHOMETER
-ããããÜÜÜÜ+ 0%
ר 1C.3.5
MEASUREMENT
MOTOR TYPE
1.3A MOTOR 14K
ר 1C.3.6
MEASUREMENT
DIGITAL INPUTS
000000
ר 1C.3.7
MEASUREMENT
FIRMWARE VERSION
DP-20 Ver 1.00
ý 1D.3.1
MEASUREMENT
ý SENSOR (X4)
-ããããÜÜÜÜ+ 50%
Ł 1E.3.2
MEASUREMENT
Ł SENSOR (X4)
-ããããÜÜÜÜ+ 50%
