Maxcess H6630EM User Manual

Section 3 – HMI (Human Machine Interface) Displays
H6630EM-LIT 11 Rev. 1.0 11/14

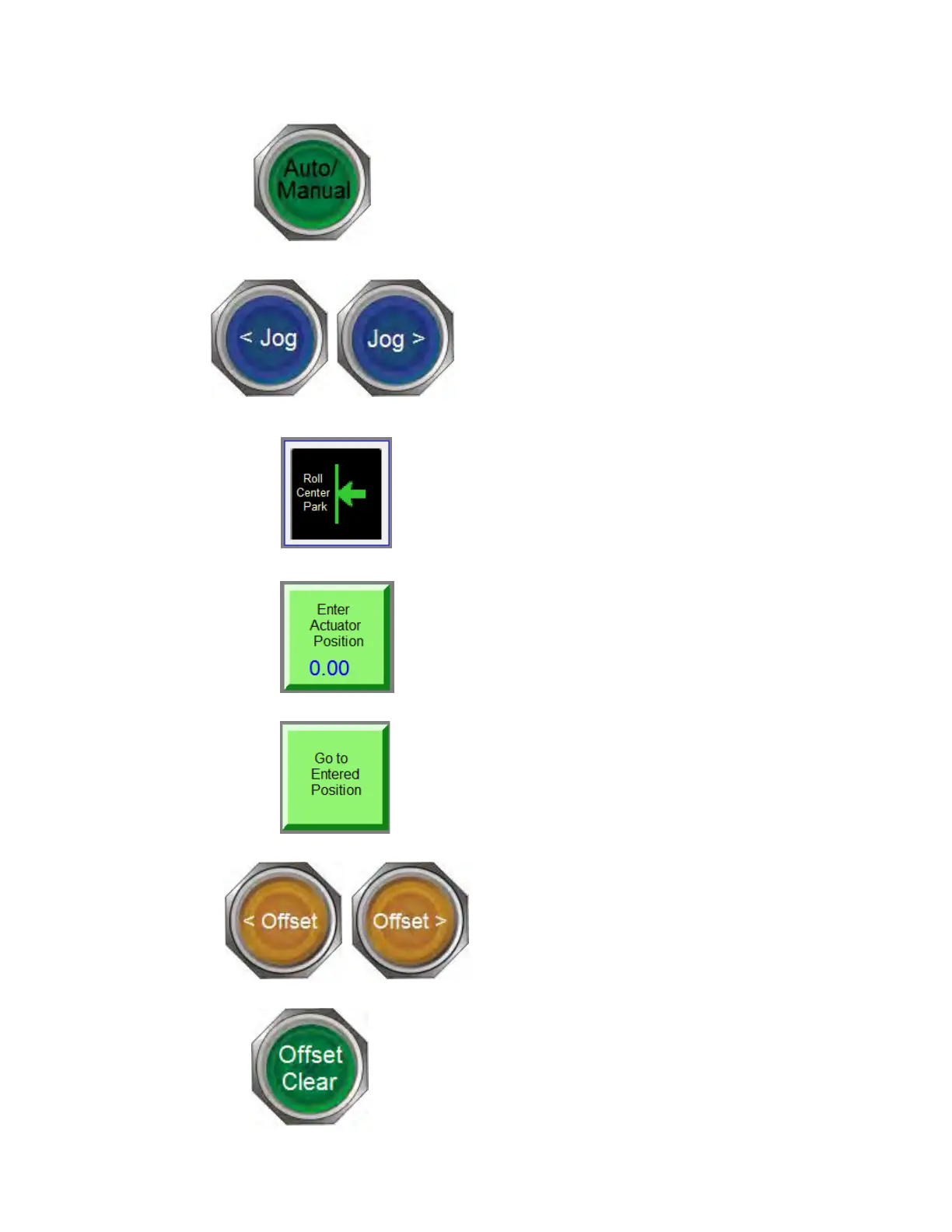

Auto/Manual -
Selects Auto or Manual mode of operation (toggle). The button
color changes from dark green to a light green when the mode
of operation is changed.
< Jog > -
Momentary Jog in one direction. Buttons displayed for
each direction of Jog.
Roll Center/Park -
The “Park” pushbutton provides a means to send the actuator
to a preset position of the travel. This is usually the position
that the guide is centered. This position is preset by the user
by using the Park Position button described below.
Speed/Motor RPM for this function may be set on the
maintenance screen by using the Park RPM setting
Enter Actuator
Position -
Allows entry of a predetermined position of which the operator
can send the actuator using the “Go To Entered Position”
button.
Go to Entered
Position -
Momentary button which will send the actuator or guide to the
pre-set position entered for the “Enter Actuator Position”. See
above.
< Offset >
-
Momentary button which increments or decrements
the counts of offset. See “Offset Increment” button.
Offset Clear -
Momentary button which clears any incremented offset.
