Cover pump box and optional battery box with fl ame-resistant covering before
welding pump box frame to vehicle.
CAUTION
To prevent pump box components from being damaged by electric current
from welding, connect welder grounding cable to the part being welded.
CAUTION
Recommended practices for welding on steel parts are contained in the cur-
rent AWS (American Welding Society) D1.1 Structural Welding Code - Steel.
Damage to Liftgate and/or vehicle, and personal injury can result from welds
that are done incorrectly.
WARNING
!
STEP 3 - ATTACH OPTIONAL BATTERY BOX & FRAME
TO VEHICLE (IF EQUIPPED) - Continued
BOLTING PUMP & BATTERY
BOX FRAME
FIG. 27-1A
CROSS
MEMBERS
CROSS
MEMBERS
BRACKET

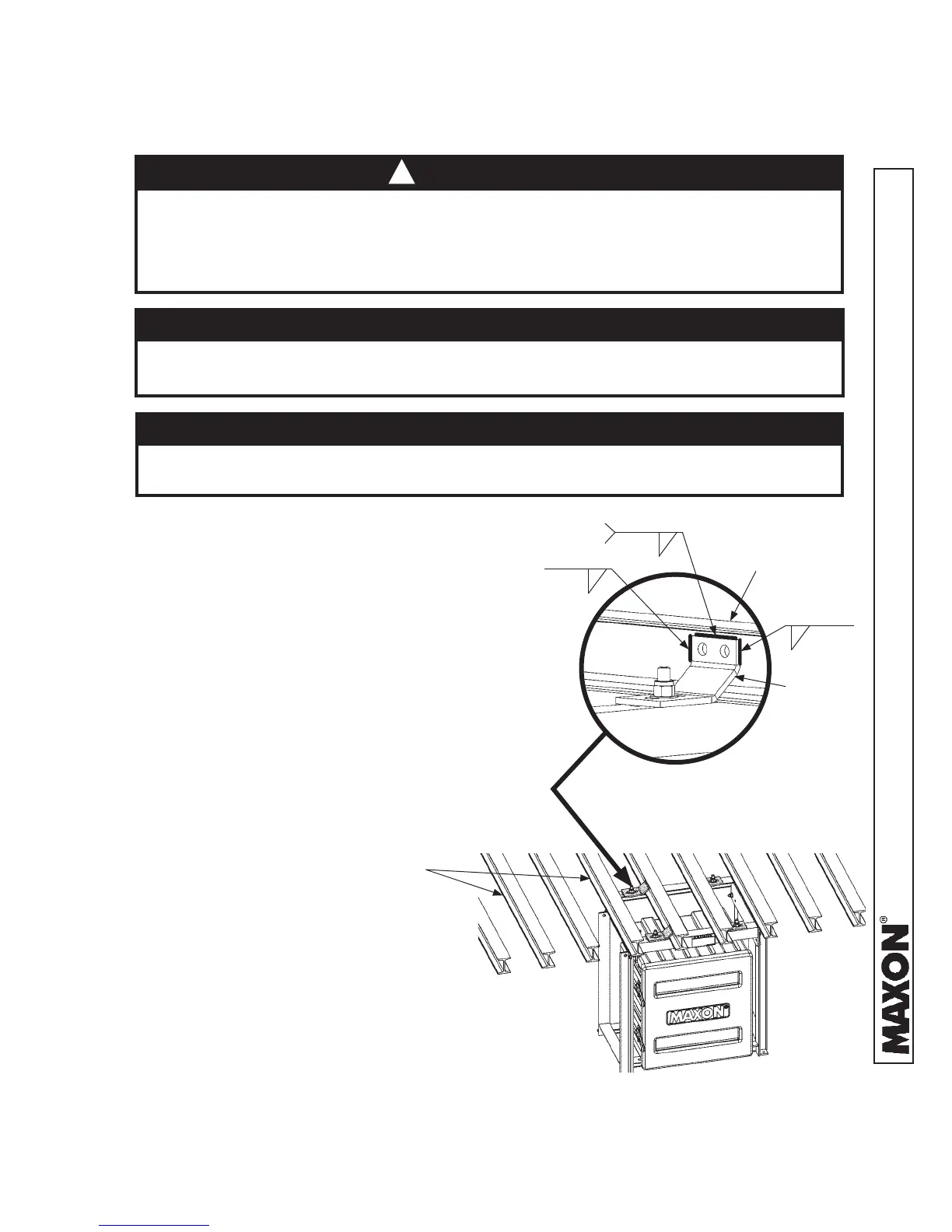

WELDING BRACKETS
(8 PLACES)
FIG. 27-1B
3/16”
3/16”
3/16”
IF ACCESSIBLE
4. Weld each bracket to cross
members as shown in FIGS.
27-1A and 27-1B. Weld top of
bracket if accessible.
