9. Ensure top surface of platform
and extension plate are fl ush at
the RH & LH sides of platform
(FIGS. 46-1 and 46-2). The
allowable difference in height is
+/- 1/8” maximum as shown.
SURFACES FLUSH
PLATFORM

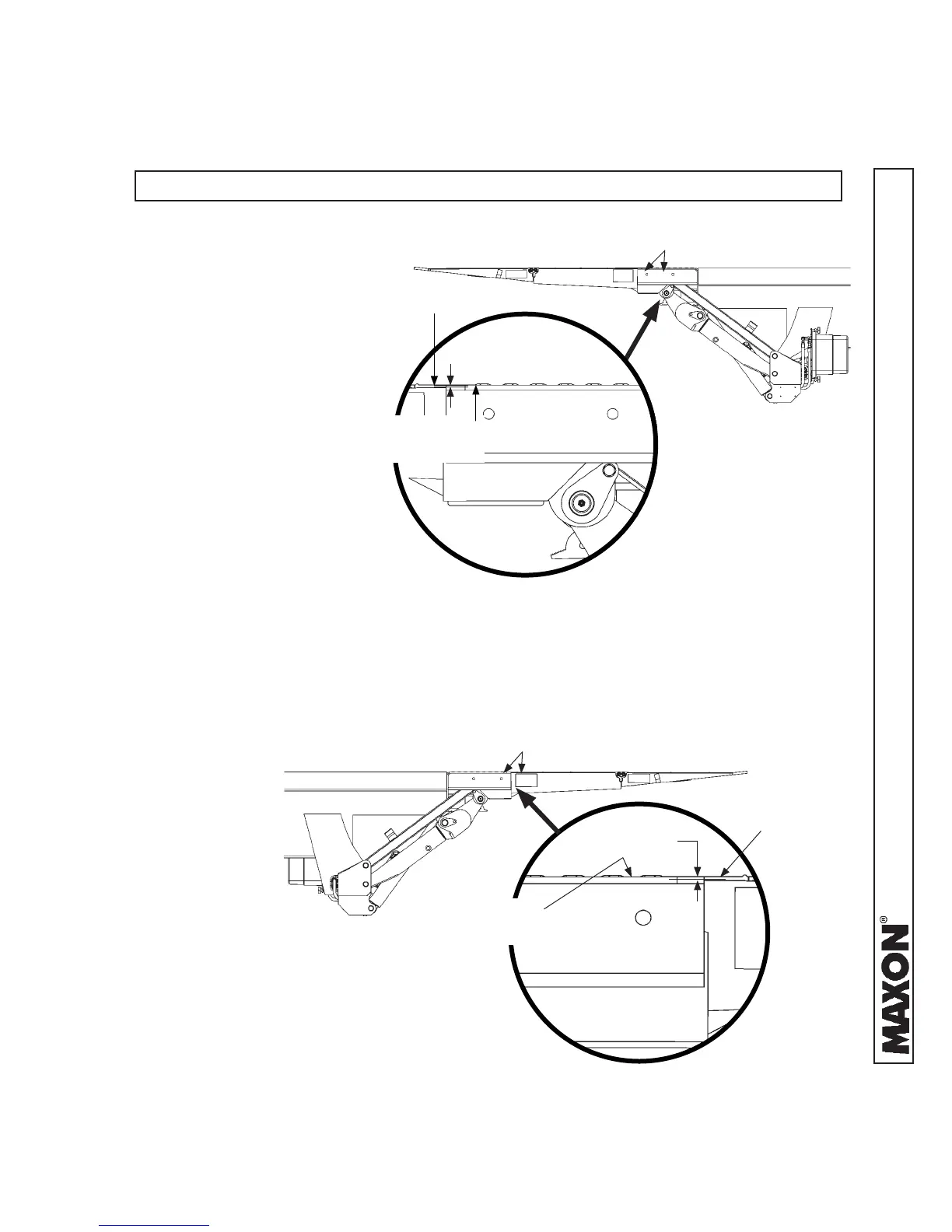

DIFFERENCE IN HEIGHT FOR TOP OF PLATFORM
& EXTENSION PLATE (RH VIEW)
FIG. 46-1
DIFFERENCE IN HEIGHT FOR TOP OF PLATFORM
& EXTENSION PLATE (LH VIEW)
FIG. 46-2
NOTE: Correct any fi t and interference problems before continuing with installation.
+/- 1/8” (MAX)
+/- 1/8” (MAX)
SURFACES FLUSH
PLATFORM
EXTENSION
PLATE
EXTENSION
PLATE
STEP 10 - REMOVE LOCKING ANGLES & KNUCKLE
BOLTS, CHECK FOR INTERFERENCE - Continued
