Maxtor Central Axis User Manual

Configuring Drives (Dual Drive Units Only) 81
Maxtor Central Axis Admin User Guide
The Drive Status for the failed drive is BAD. In the image above, the failed drive
is represented by the square symbol.
Step 3: Click View Instructions for a description of how to replace the failed drive.
An on-line Help window containing those instructions opens in your browser. We
recommend that you print the instructions from your browser since Central Axis
Help pages will be inaccessible during the drive replacement.
Step 4: On the Drive Configuration page, click Shut Down to shut down your Central
Axis and replace the failed drive.
Caution: Turn off your Central Axis and disconnect the power cable and any other
cables connected to the unit before proceeding with the drive replacement.

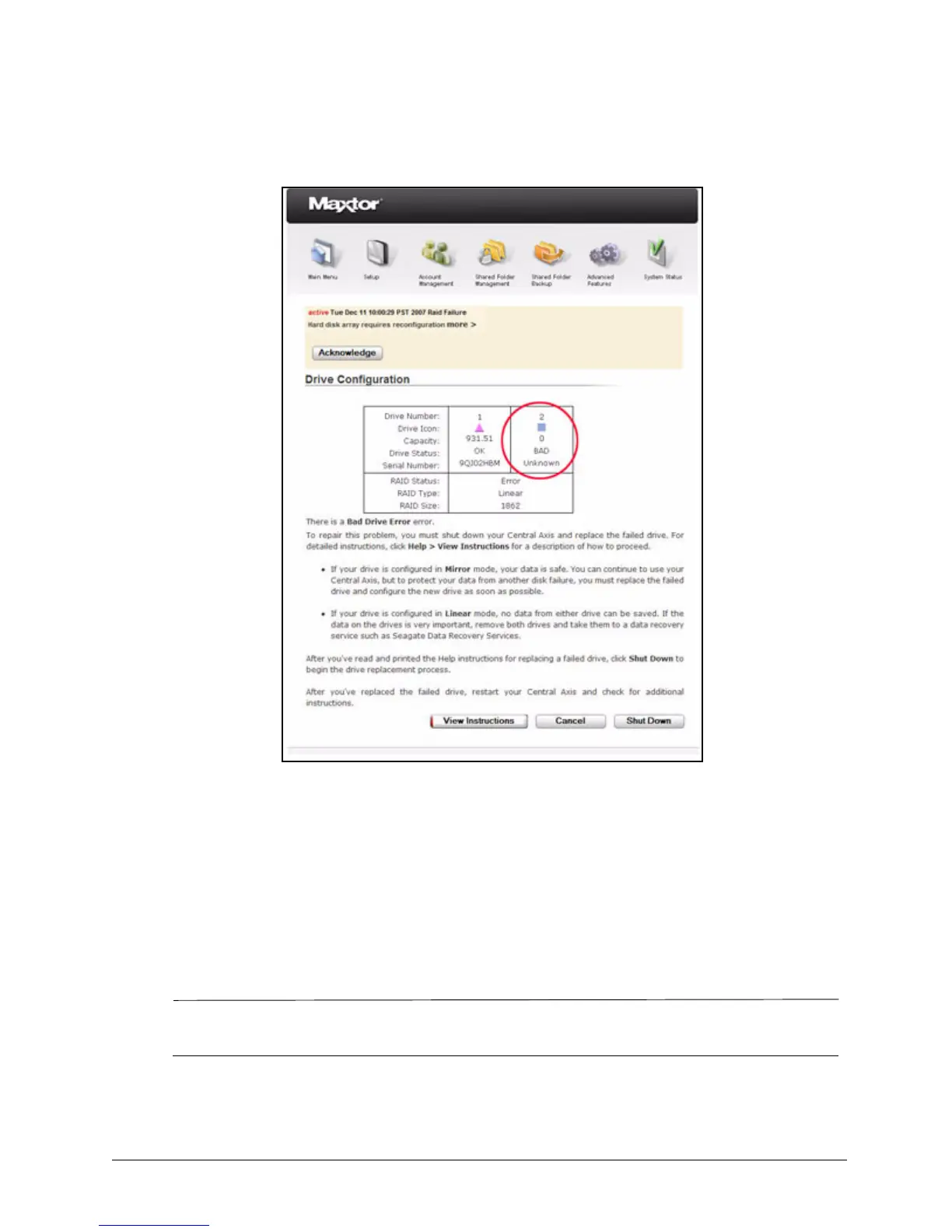

Figure 123: Drive Configuration
