Reciprocating Compressor M Series
3-12
3.3 Documents Related to Installation *
1
Note *
1
: The followings are reference values of individual compressor. They may differ from the actual values. If there are any questions,
please contact your local sales offices or service centers.
Weight and Dimensions

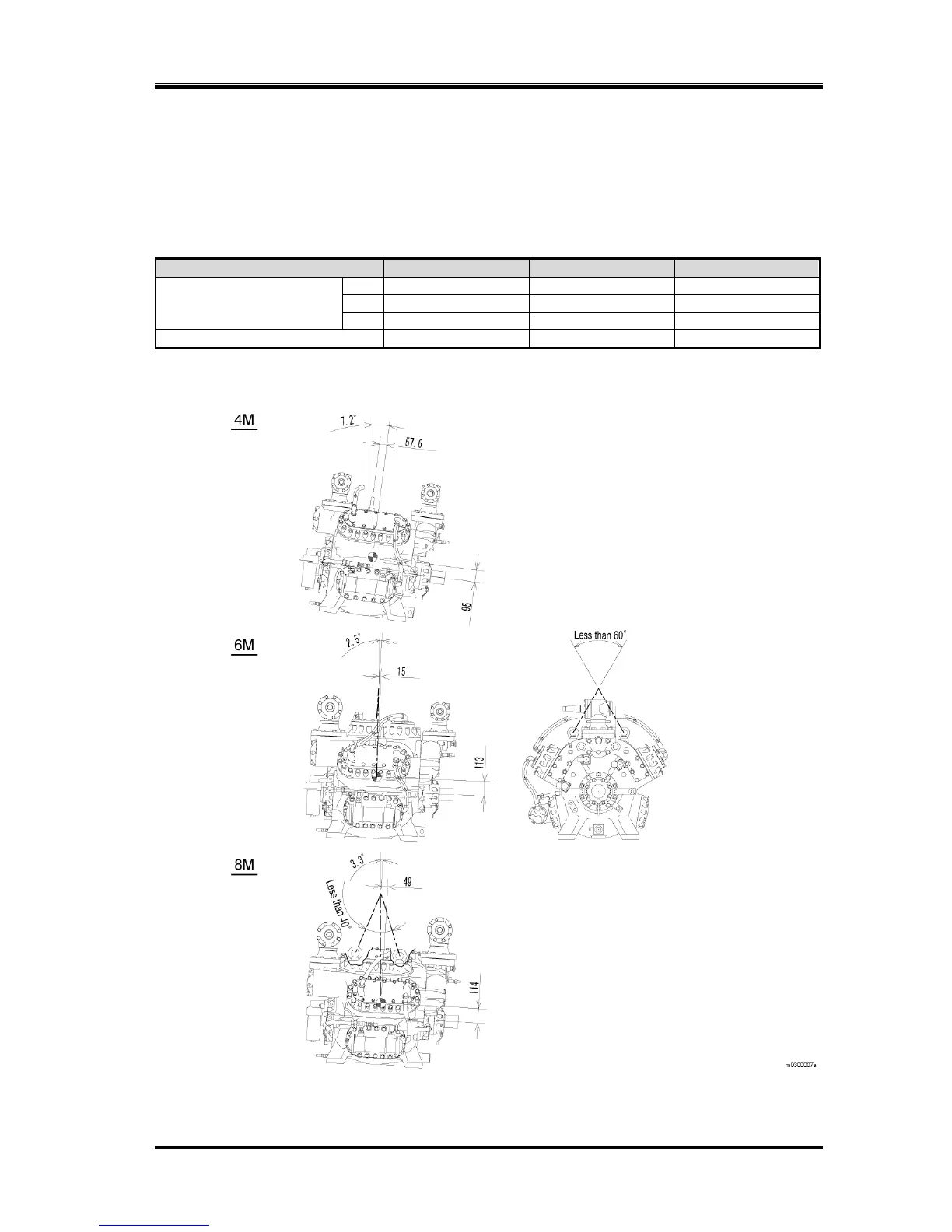

Fig. 3-8 Weight and dimensions
4M 6M 8M
Dimensions mm(inch) H 1103(43.43) 1120(44.09) 1190(46.85)
W 1211(47.68) 1247(49.09) 1247(49.09)
D 1019(40.11) 1147(45.16) 1147(45.16)
Mass *
2
kg(lbs) 1300(2866) 1580(3483) 1830(4030)
Note *
2
: The above values include the weight of water cooling head cover, oil cooler, and flywheel.
Lifting Positions/Gravity Center Positions/Lifting Mode
Fig. 3-9 Lifting positions/gravity center positions/lifting mode
