MAYEKAWA 4M - Bearing Head Component Procedures

Reciprocating Compressor M Series
5-35
5.5.9 Bearing Head
Steps Description
Part
No.
Steps Description
Part
No.
1
Bearing head
23 3
Thrust roller bearing (bearing head
side)
29-1
(Refer to " Removing the Bearing Head".)
4
"O"ring, bearing head
24-1
(Refer to "Assembly of the Bearing
Head".)
5
Main bushing (bearing head side)
12-2
(Refer to "Replacing the Main Bushing
(Bearing Head Side)".)
2
Gasket, bearing head
24

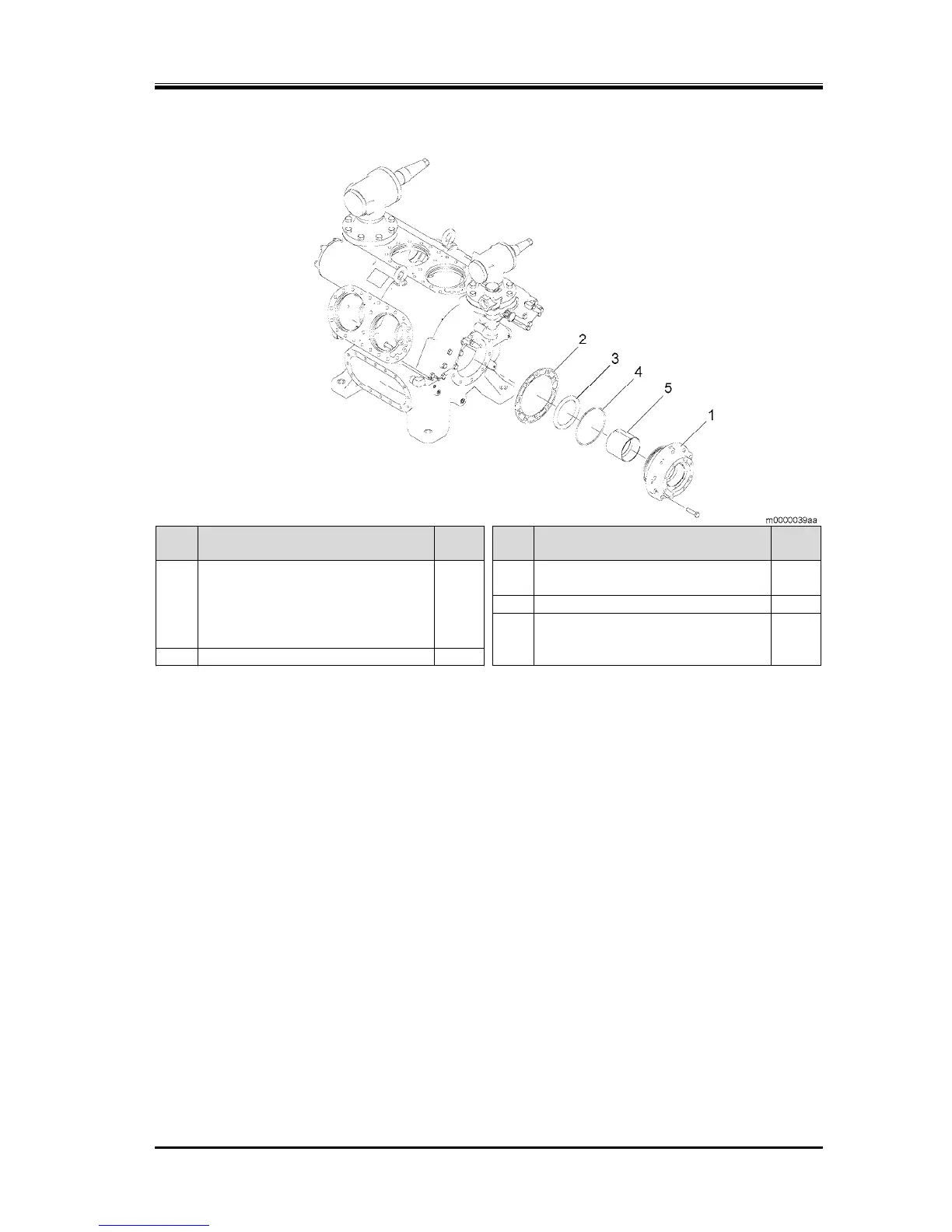

1. Remove the parts in the order shown in the figure.
2. Attach the parts in the reverse order of removal.
