MAYEKAWA 4M - Head Cover and Hand Hole Cover Procedures

Reciprocating Compressor M Series
5-13
5.5.3 Head Cover/Hand Hole Cover
Steps Description
Part
No.
Steps Description
Part
No.
1
Head jacket cover
53 6
Discharge valve cage assembly
—
(Refer to "Attentions for Removing the
Head Jacket Cover/Hand Hole Cover".)
(Refer to "Discharge Valve Cage
Assembly".)
(Refer to "Attentions for Attaching the
Head Jacket Cover/Hand Hole Cover".)
7
Stud bolt, discharge valve cage
75-2
8
Hand hole cover
46
2
Gasket, head jacket cover
55
(Refer to "Attentions for Removing
the Jacket Cover/Hand Hole Cover".)
3
Head cover
50
(Refer to "Attentions for Removing the
Head Cover".)
or
(Refer to "Attentions for Attaching the
Jacket Cover/Hand Hole Cover".)
(Refer to "Attentions for Attaching the
Head Cover".)
49 9
Gasket, hand hole cover
47
10
Oil strainer
119
4
Gasket, head cover
51
5
Spring, safety head
117

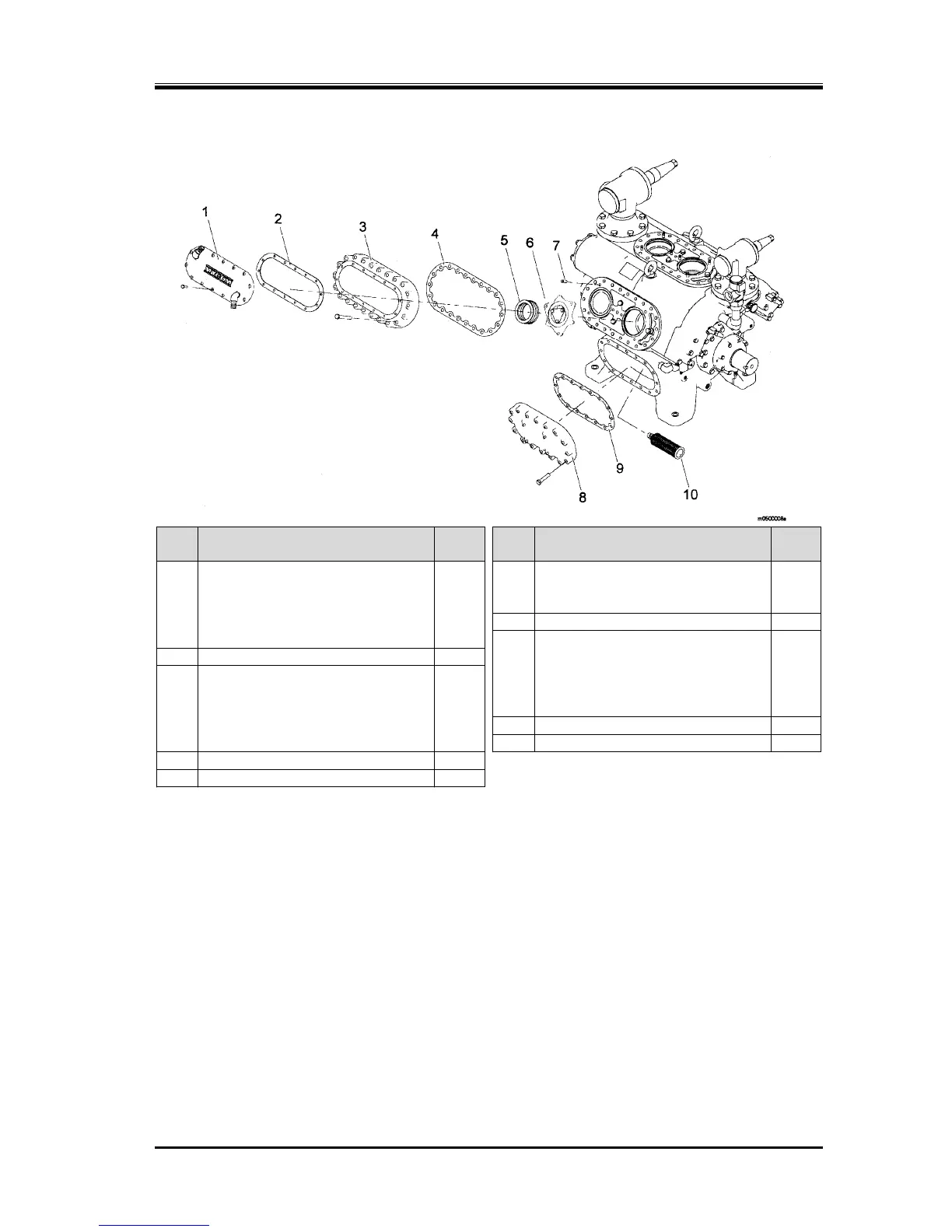

1. Remove the parts in the order shown in the figure.
2. Attach the parts in the reverse order of removal.
