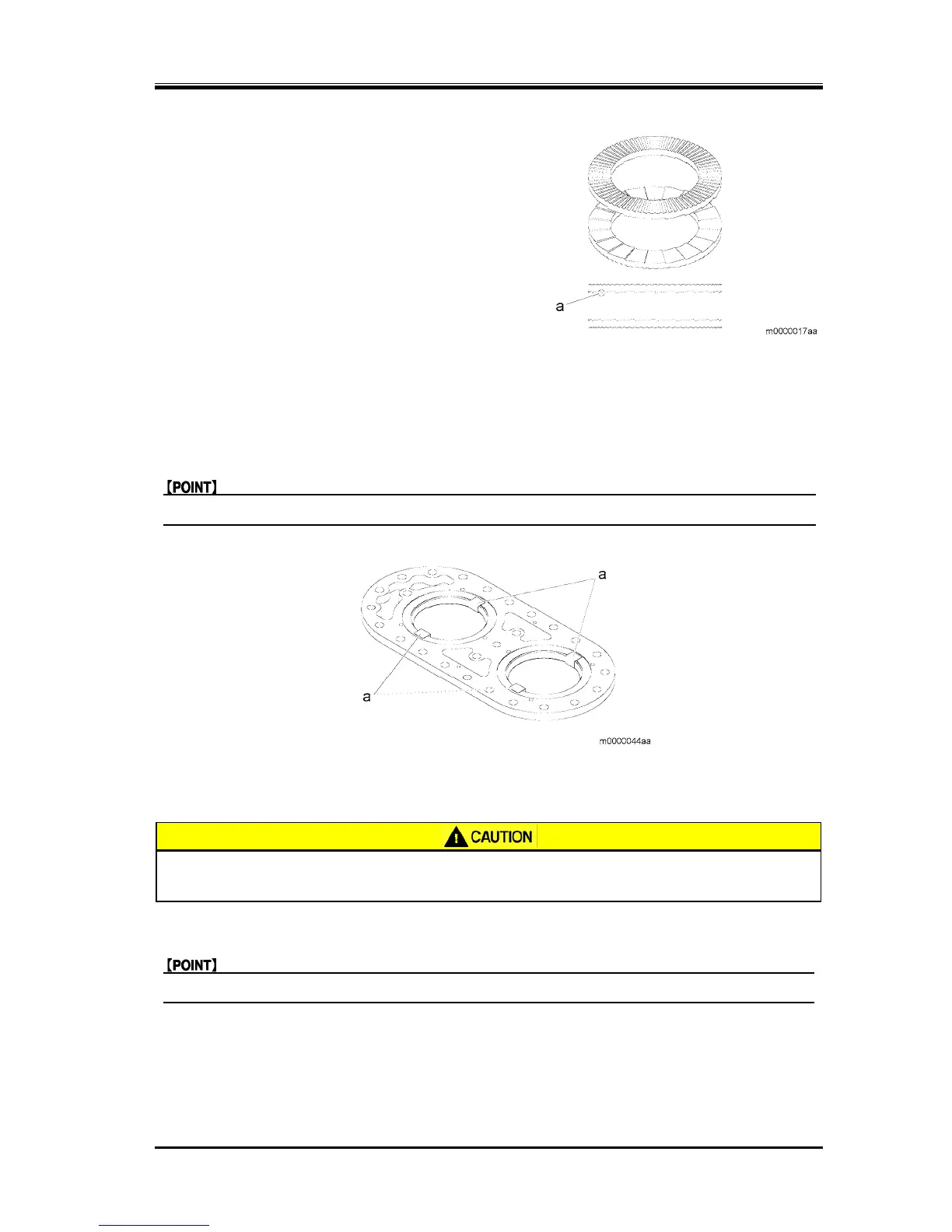

5. Assemble the two connecting rod head bolts
washers as shown in the figure.
If the corner (a) of the connecting rod bolt washer
baffle becomes obtuse, replace the washer.
6. Tighten the connecting rod bolts gradually and evenly.
7. Tighten the connecting rod bolts using the specified torque.
5.5.4.6 Attaching the Suction Plate Valve/Suction Valve Spring
1. Support the suction valve plate and suction valve spring to the valve plate using clips (a).
z Align the suction valve spring (b) with the valve plate (c) in the direction shown in the figure.
2. After attaching the valve plate, remove the clips.
5.5.4.7 Attaching the Valve Plate
z Dropping of the valve plate may cause injury or damage to the compressor.
Always attach the stud bolt before performing the work.
1. After attaching the stud bolts into the head cover bolt holes for two sections at the top, attach the valve
plate.
z After attaching the valve plate remove the stud bolts.
