MAYEKAWA 4M - Suction;Discharge Area Components

Reciprocating Compressor M Series
5-10
5.5.2 Suction/Discharge Area
Steps Description
Part
No.
Steps Description
Part
No.
1
Shut–off valve, suction
173 6
Thermometer, discharge side
198
(Refer to "Attentions for Removing the
Suction/Discharge Shut–off Valve".)
7
Discharge manifold
168
(Refer to "Attentions for Removing the
Discharge Manifolds".)
(Refer to "Attentions for Attaching the
Suction/Discharge Shut–off Valve".)
(Refer to "Attentions for Attaching the
Discharge Manifolds".)
2
Gasket, shut-off valve, suction flange
174
3
Shut–off valve, discharge
182 8
Gasket, discharge manifold
169
(Refer to "Attentions for Removing the
Suction/Discharge Shut–off Valve".)
9
Suction filter cover
161
10
Gasket, suction filter cover
162
(Refer to "Attentions for Attaching the
Suction/Discharge Shut–off Valve".)
11
Suction filter
154
12
"O"ring, suction filter
154-1
4
Gasket, shut-off valve, discharge
flange
183 13
Thermometer, Suction side
200
5
Safety valve
213

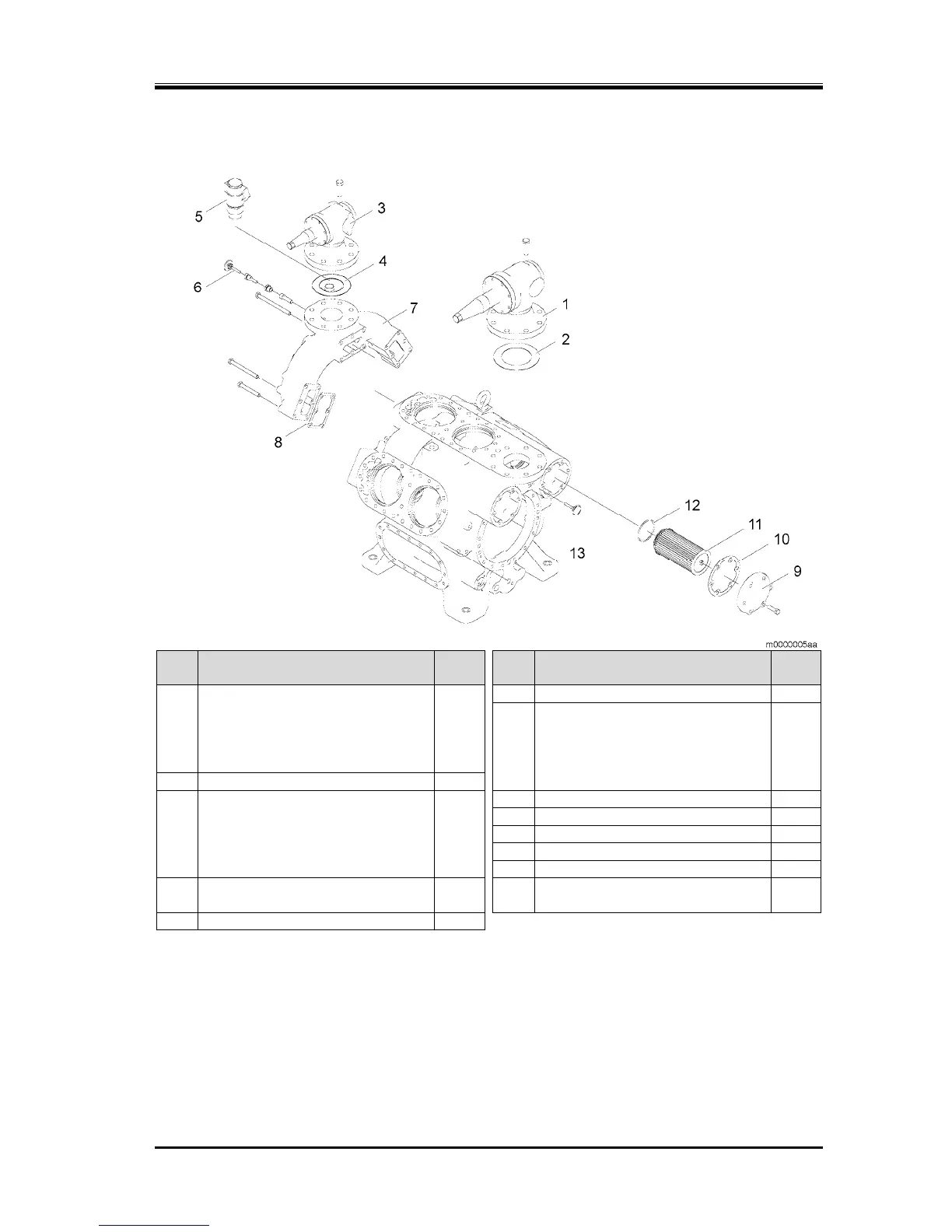

1. Remove the parts in the order shown in the figure.
2. Attach the parts in the reverse order of removal.
