Reciprocating Compressor M Series
5-23
5.5.4.8 Removal of the Spacer
1. Loosen the unloader cover bolts, and remove the
unloader cover.
2. Remove the spacer.
3. Press the unloader piston with your hand to check
that the unloader push rod moves.

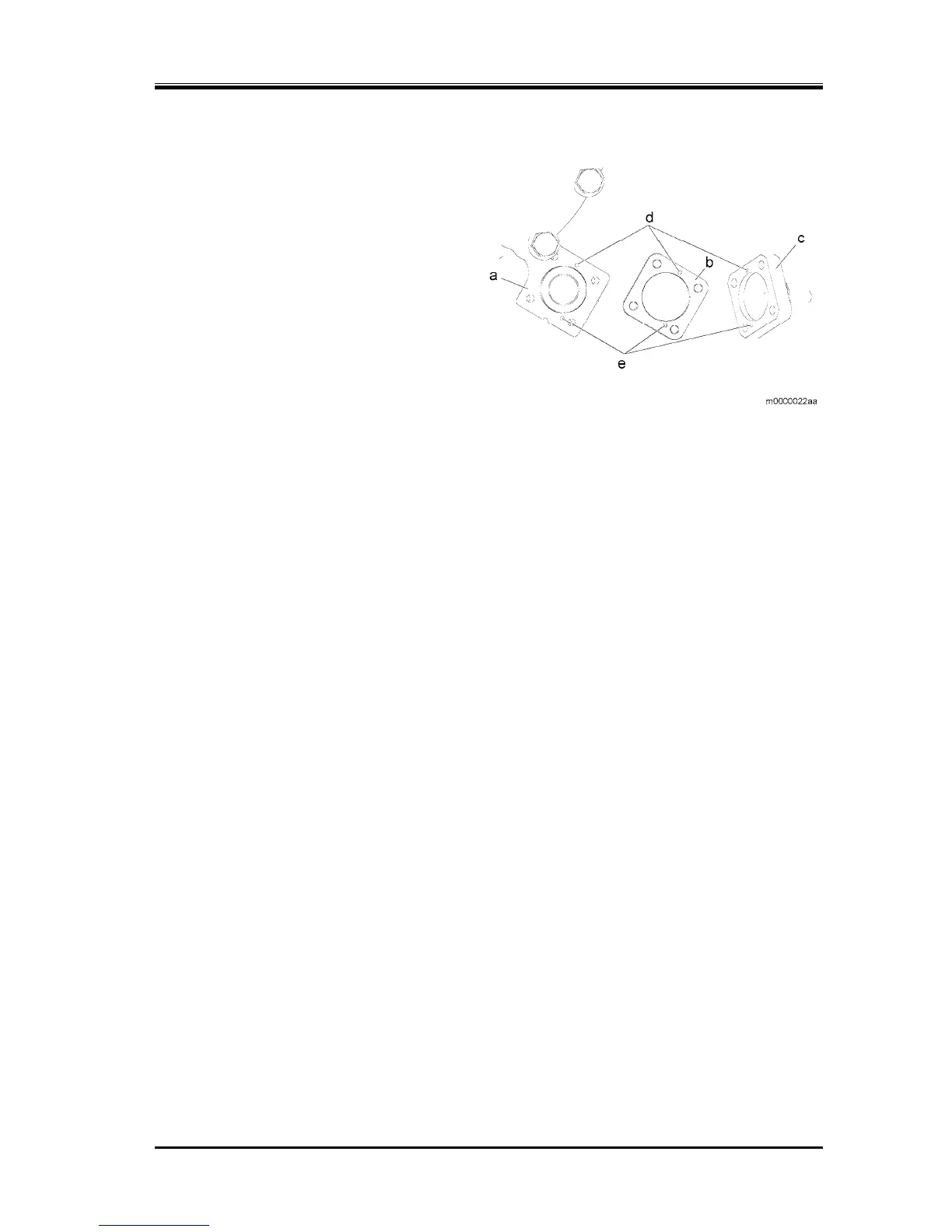

4. Align the crankcase (a) with the gasket (b), and
drain hole (d) of the unloader cover (c) with the
filler opening (e), then attach the gasket (b) and
unloader cover (c).
5. Attach the coil to the integrated solenoid valve
unloader cover.
