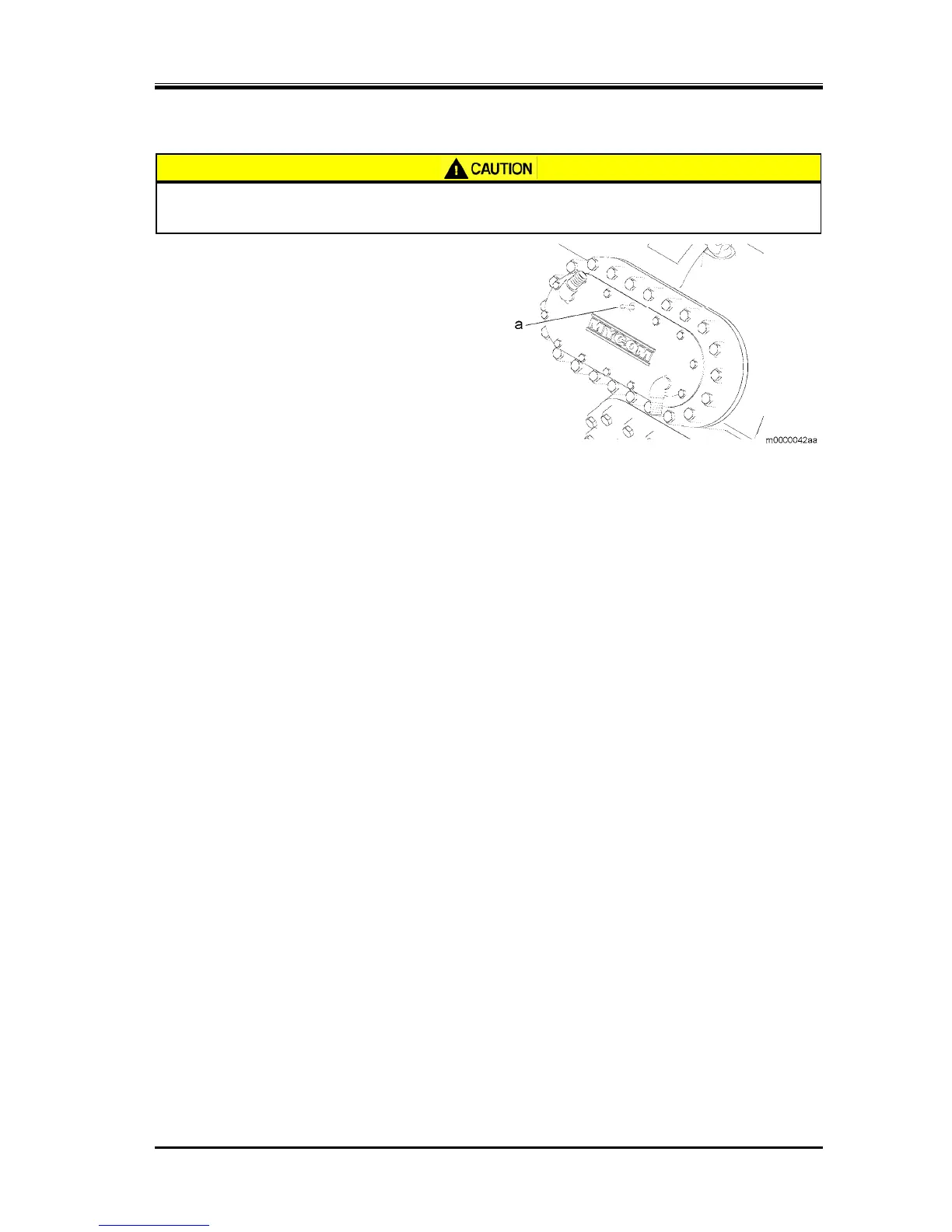

5.5.3.6 Attaching the Head Jacket Cover
z Dropping of the head jacket cover may cause injury or damage to the
compressor. Always attach the stud bolt before performing the work.
1. After attaching the stud bolt (a) into the head
jacket cover at the top, attach the head jacket
cover.
2. After temporarily tightening the rest of the head
jacket cover hexagon head screws, remove the
stud bolt.
