MAYEKAWA 4M - Unloader Push Rod Washer and Assembly

Reciprocating Compressor M Series
5-25

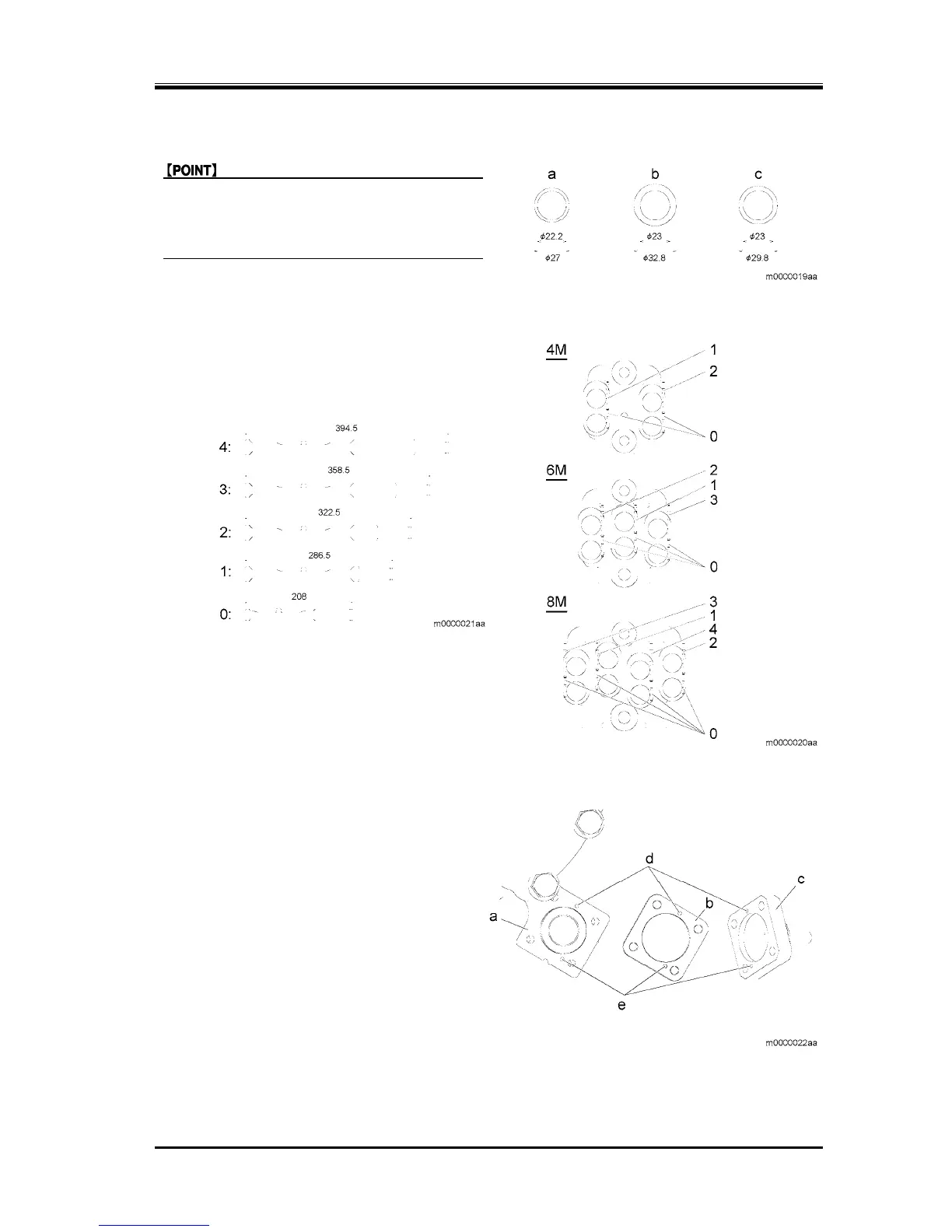

5.5.5.1 Assembly of the Unloader Push Rod Washer
z Unloader push rod washer (No.1) (a),
unloader push rod washer (No.2) (b), and
unloader push rod washer (No.3) (c) differ as
shown in the figure.
5.5.5.2 Assembly of the Unloader Push Rod
1. There are five types of the unloader push rod
depending on its length. The attachment positions
for each unloader push rod assembly are as shown
in the figure.
5.5.5.3 Assembly of the Integrated Solenoid Valve Unloader Cover
1. Align the gasket (b) and drain holes (d)(e) with
the crankcase (a) and unloader cover. (c) then
attach the gasket (b) and unloader cover (c).
