M600 Disassembly Instructions
Disassembling the M600 10

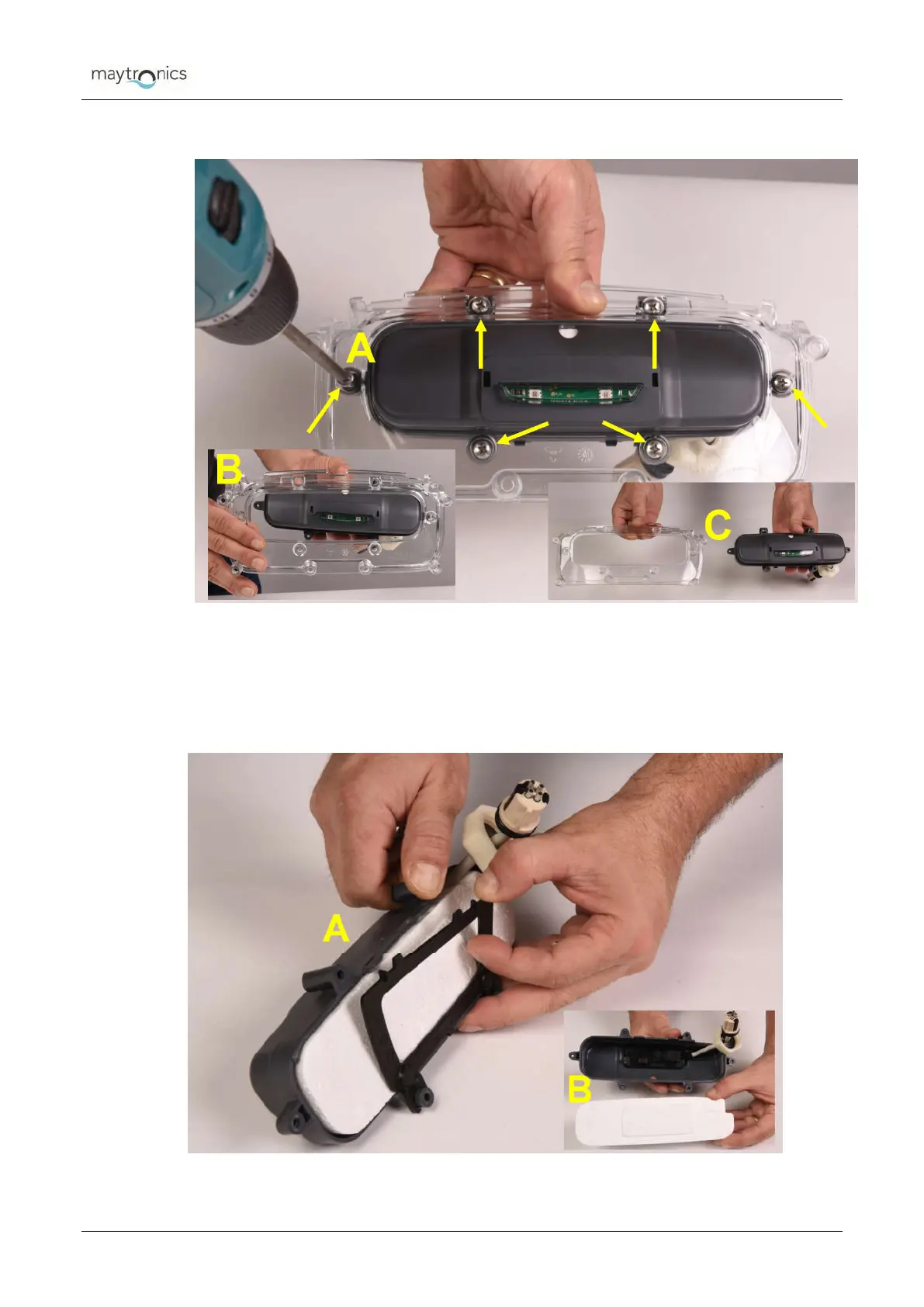

Remove six screws (indicated below) and disconnect the LU from the LU frame.
Figure 13: Dismantling the LU (step d)
7.
Dismantle the Electronic Card (PCB with LEDs) inside the LU as follows:
a.
Remove the plastic holder at the rear by hand as shown below
b.
Remove the float part
c.
Remove the card by pushing the clips inside out as shown below
Figure 14: Dismantle the Electronic Card (step a and b)
