M600 Disassembly Instructions
Disassembling the M600 14
d.
Unfasten and remove the wheel washer screws from each side of the robot.
e.
Remove the wheel’s holder

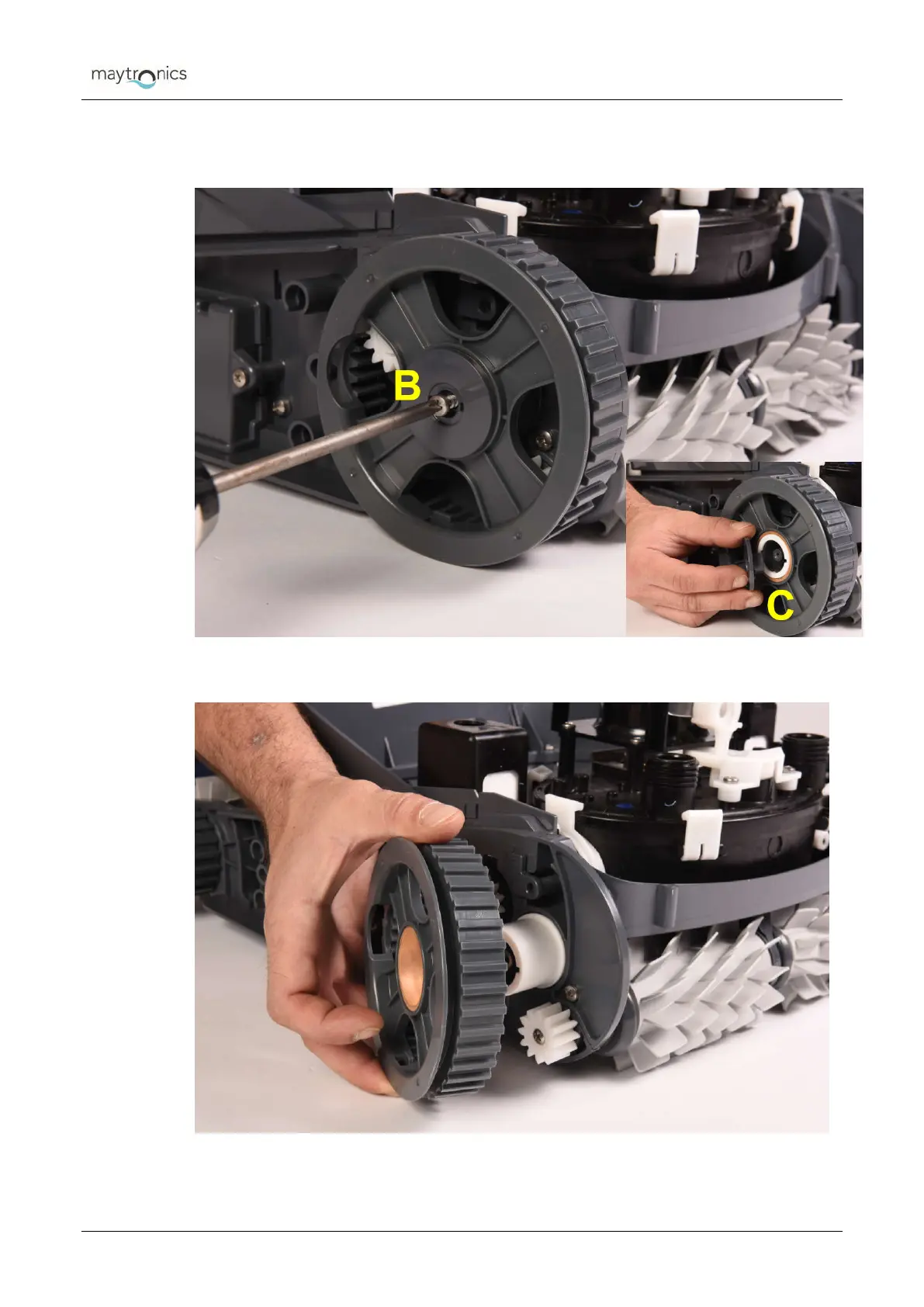

Figure 21: Dismantling the drive system (step b and c)
f.
Remove the wheels.
Figure 22: Dismantling the drive system (step f)
