M600 Disassembly Instructions
15
g.
Dismantling the drive part system

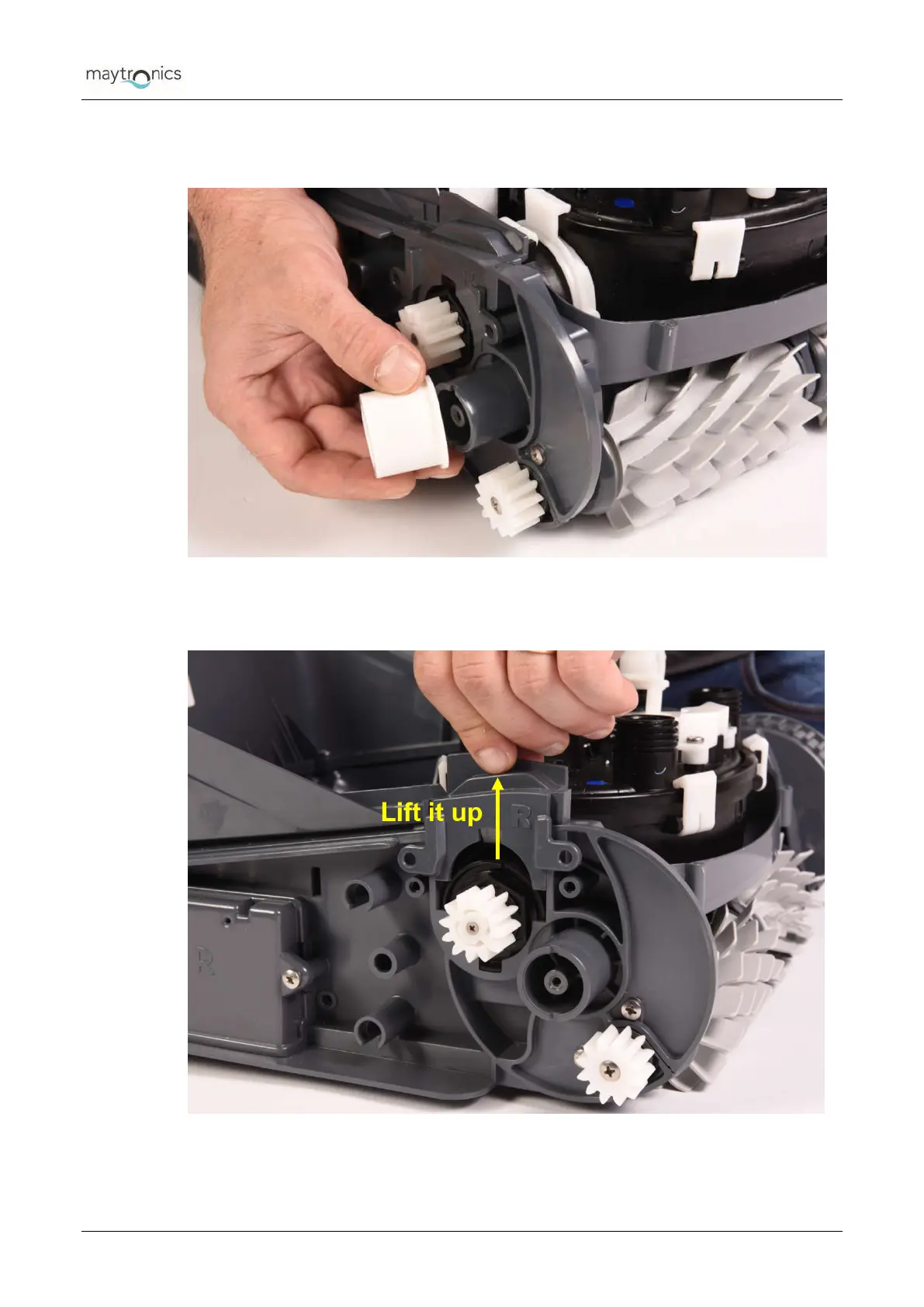

Figure 23: Dismantling the drive part system
h.
Remove the side motor unit locking clips on both sides of motor unit (Right & Left)
Figure 24: Remove the plastic locker
