M600 Disassembly Instructions
9
Unplug the cable.

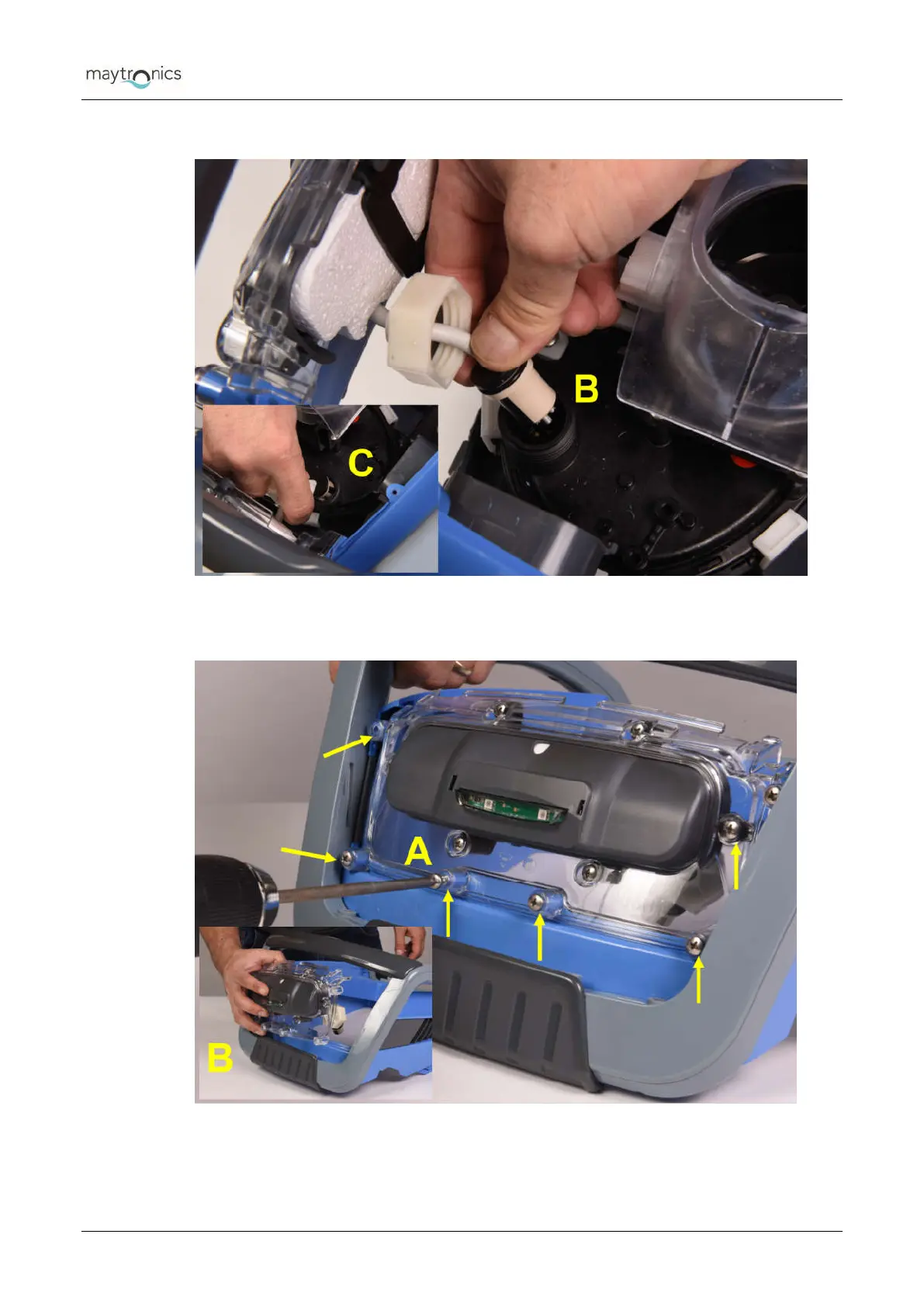

Figure 11: Dismantling the LU (step b and c)
Remove six screws (indicated below), and disconnect the frame of the LU from the robot
top body.
Figure 12: Dismantling the LU (step a and b)
