M600 Disassembly Instructions
19

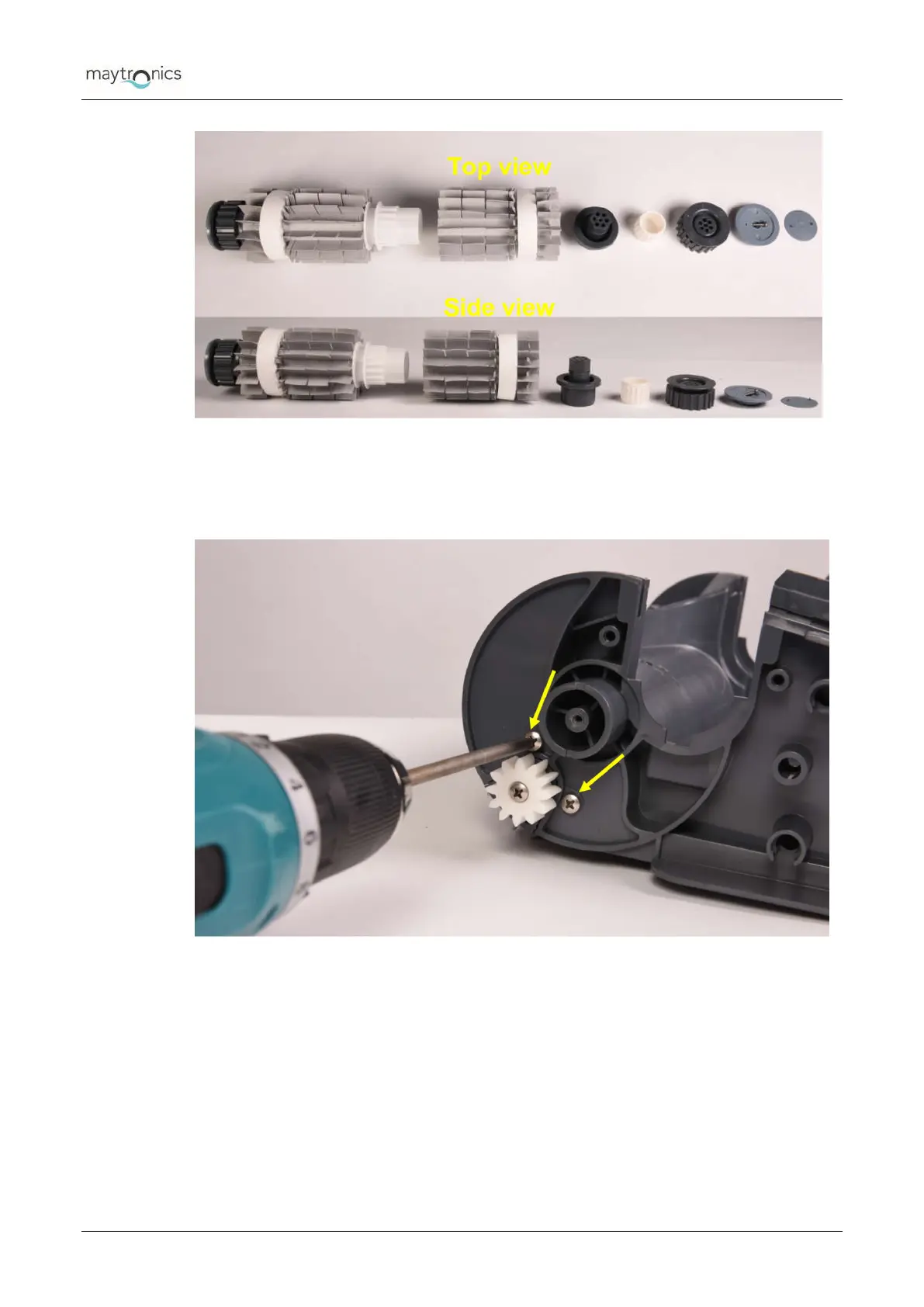

Figure 31: The rear brush dissembled – Top & Side view
15.
Dismantle the Front Active Brush as follows:
a.
Remove the four screws holding the active brush in place from both sides.
Figure 32: Dismantling the front active brush (step a)
